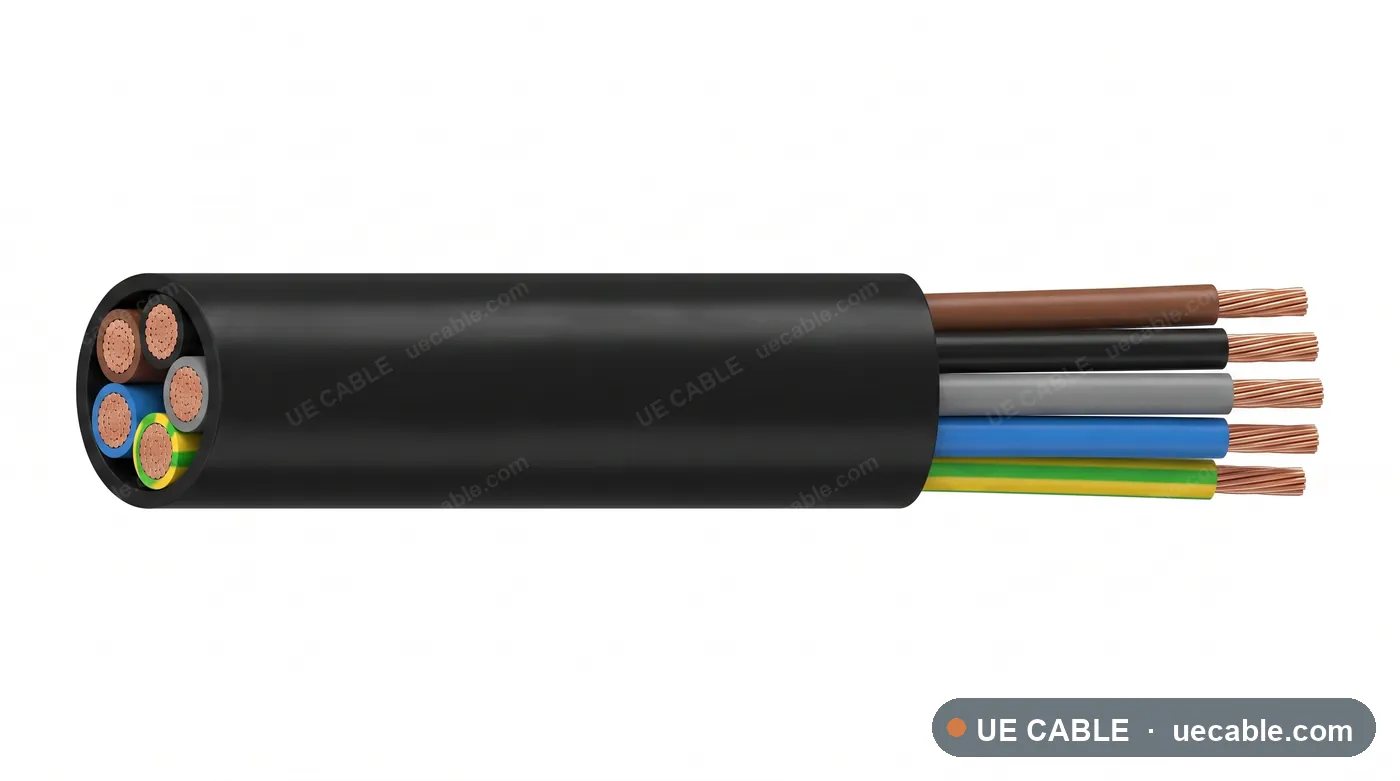

Heavy Duty TPE Tray Cable cable construction reference

Heavy-duty TPE tray cable

Heavy Duty TPE Tray Cable

Heavy Duty TPE Tray Cable is a tray cable construction for heavy machinery, assembly lines, processing equipment, using fine stranded bare copper conductor, tpe or pvc nylon insulation and heavy-duty oil and sunlight resistant tpe tray jacket.

Standard
UL 1277 TC-ER
Voltage class
600 V
Temperature class
105 °C guide
Conductor
Fine stranded bare copper conductor
Insulation / jacket
Heavy-duty oil and sunlight resistant TPE tray jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Heavy Duty TPE Tray Cable is a tray cable construction for heavy machinery, assembly lines, processing equipment, using fine stranded bare copper conductor, tpe or pvc nylon insulation and heavy-duty oil and sunlight resistant tpe tray jacket.

  • Heavy machinery
  • Assembly lines
  • Processing equipment
  • Industrial plants

Cable Construction

  • Fine stranded bare copper conductor
  • TPE or PVC nylon insulation
  • Heavy-duty oil and sunlight resistant TPE tray jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Heavy-duty TPE tray cable references

Each row is an exact tray cable cable specification sheet. Shared UL/CSA rating, jacket and installation data are listed above.

  • Tray cable dutyHeavy-duty tray cable
  • Circuit typeHeavy-duty tray
  • Voltage class600 V
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 3 core 16 AWG / 1.31 mm²3 core16 AWG / 1.31 mm²14.1 Ω/km13.6 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 3 core 14 AWG / 2.08 mm²3 core14 AWG / 2.08 mm²8.89 Ω/km14.1 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 3 core 12 AWG / 3.31 mm²3 core12 AWG / 3.31 mm²5.59 Ω/km14.7 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 3 core 10 AWG / 5.26 mm²3 core10 AWG / 5.26 mm²3.52 Ω/km15.5 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 4 core 16 AWG / 1.31 mm²4 core16 AWG / 1.31 mm²14.1 Ω/km14.0 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 4 core 14 AWG / 2.08 mm²4 core14 AWG / 2.08 mm²8.89 Ω/km14.6 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 4 core 12 AWG / 3.31 mm²4 core12 AWG / 3.31 mm²5.59 Ω/km15.2 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 4 core 10 AWG / 5.26 mm²4 core10 AWG / 5.26 mm²3.52 Ω/km16.0 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 5 core 16 AWG / 1.31 mm²5 core16 AWG / 1.31 mm²14.1 Ω/km14.5 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 5 core 14 AWG / 2.08 mm²5 core14 AWG / 2.08 mm²8.89 Ω/km15.0 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 5 core 12 AWG / 3.31 mm²5 core12 AWG / 3.31 mm²5.59 Ω/km15.6 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 5 core 10 AWG / 5.26 mm²5 core10 AWG / 5.26 mm²3.52 Ω/km16.4 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 7 core 16 AWG / 1.31 mm²7 core16 AWG / 1.31 mm²14.1 Ω/km15.2 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 7 core 14 AWG / 2.08 mm²7 core14 AWG / 2.08 mm²8.89 Ω/km15.7 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 7 core 12 AWG / 3.31 mm²7 core12 AWG / 3.31 mm²5.59 Ω/km16.3 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 7 core 10 AWG / 5.26 mm²7 core10 AWG / 5.26 mm²3.52 Ω/km17.1 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 12 core 16 AWG / 1.31 mm²12 core16 AWG / 1.31 mm²14.1 Ω/km16.6 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 12 core 14 AWG / 2.08 mm²12 core14 AWG / 2.08 mm²8.89 Ω/km17.1 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 12 core 12 AWG / 3.31 mm²12 core12 AWG / 3.31 mm²5.59 Ω/km17.8 mm
TRAY HD TPE 600 V Heavy-duty tray cable Heavy-duty tray 12 core 10 AWG / 5.26 mm²12 core10 AWG / 5.26 mm²3.52 Ω/km18.6 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
