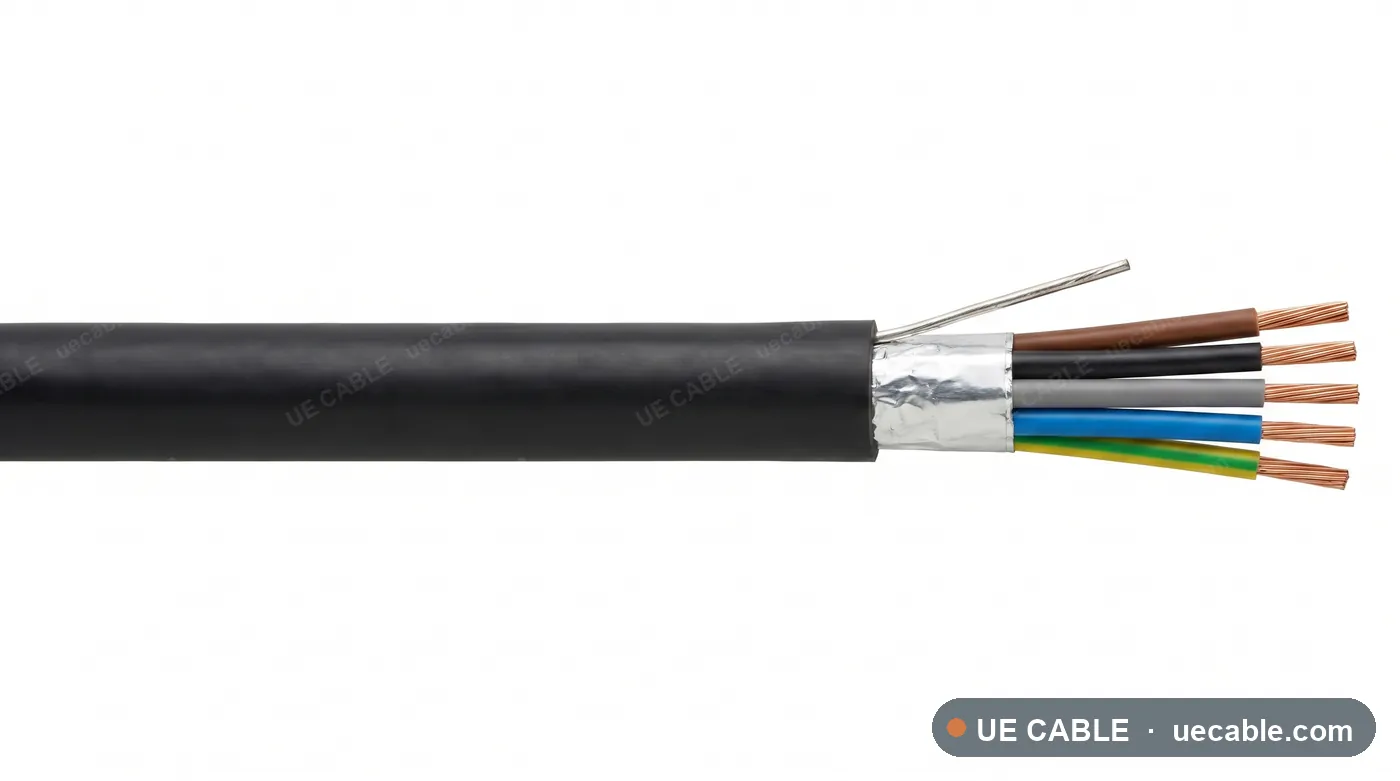

NR/L2/ELP/27408 FGT Class 2 Signalling Power Cable cable construction reference

Rodent-protected signalling power cable

NR/L2/ELP/27408 FGT Class 2 Signalling Power Cable

NR/L2/ELP/27408 FGT Class 2 Signalling Power Cable is a railway cable construction for class 2 signalling power, trackside power, rodent-prone routes, using class 2 stranded copper conductor, xlpe power insulation, fibre glass tape rodent barrier and trackside lszh or mdpe railway outer sheath.

Standard
NR/L2/ELP/27408
Voltage class
600/1000 V
Temperature class
90 °C conductor guide
Conductor
Class 2 stranded copper conductor
Insulation / jacket
Trackside LSZH or MDPE railway outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

NR/L2/ELP/27408 FGT Class 2 Signalling Power Cable is a railway cable construction for class 2 signalling power, trackside power, rodent-prone routes, using class 2 stranded copper conductor, xlpe power insulation, fibre glass tape rodent barrier and trackside lszh or mdpe railway outer sheath.

  • Class 2 signalling power
  • Trackside power
  • Rodent-prone routes
  • Rail infrastructure

Cable Construction

  • Class 2 stranded copper conductor
  • XLPE power insulation
  • Fibre glass tape rodent barrier
  • Trackside LSZH or MDPE railway outer sheath
  • Low smoke, low toxicity railway fire-performance material system

Specifications

Select a cable size.

Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

FGT class 2 signalling power cable references

Each row is an exact fibre-glass-tape protected signalling power cable cable specification sheet.

  • Railway dutyClass 2 signalling power
  • Installation zoneTrackside class 2 signalling supply
  • Voltage class600/1000 V
Cable referenceCable designConductor sizeMax DC resistance at 20 °COD guide
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 2 core 2.5 mm²FGT enhanced 2 core2.5 mm²7.6 Ω/km14.0 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 2 core 4 mm²FGT enhanced 2 core4 mm²4.7 Ω/km14.9 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 2 core 6 mm²FGT enhanced 2 core6 mm²3.1 Ω/km15.8 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 2 core 10 mm²FGT enhanced 2 core10 mm²1.83 Ω/km17.3 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 2 core 16 mm²FGT enhanced 2 core16 mm²1.15 Ω/km19.0 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 2 core 25 mm²FGT enhanced 2 core25 mm²0.727 Ω/km21.0 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 3 core 2.5 mm²FGT enhanced 3 core2.5 mm²7.6 Ω/km14.5 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 3 core 4 mm²FGT enhanced 3 core4 mm²4.7 Ω/km15.4 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 3 core 6 mm²FGT enhanced 3 core6 mm²3.1 Ω/km16.3 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 3 core 10 mm²FGT enhanced 3 core10 mm²1.83 Ω/km17.8 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 3 core 16 mm²FGT enhanced 3 core16 mm²1.15 Ω/km19.5 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 3 core 25 mm²FGT enhanced 3 core25 mm²0.727 Ω/km21.5 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 4 core 2.5 mm²FGT enhanced 4 core2.5 mm²7.6 Ω/km14.9 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 4 core 4 mm²FGT enhanced 4 core4 mm²4.7 Ω/km15.8 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 4 core 6 mm²FGT enhanced 4 core6 mm²3.1 Ω/km16.7 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 4 core 10 mm²FGT enhanced 4 core10 mm²1.83 Ω/km18.2 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 4 core 16 mm²FGT enhanced 4 core16 mm²1.15 Ω/km19.9 mm
FGT signalling power cable 600/1000 V Class 2 signalling power FGT enhanced 4 core 25 mm²FGT enhanced 4 core25 mm²0.727 Ω/km22.0 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
