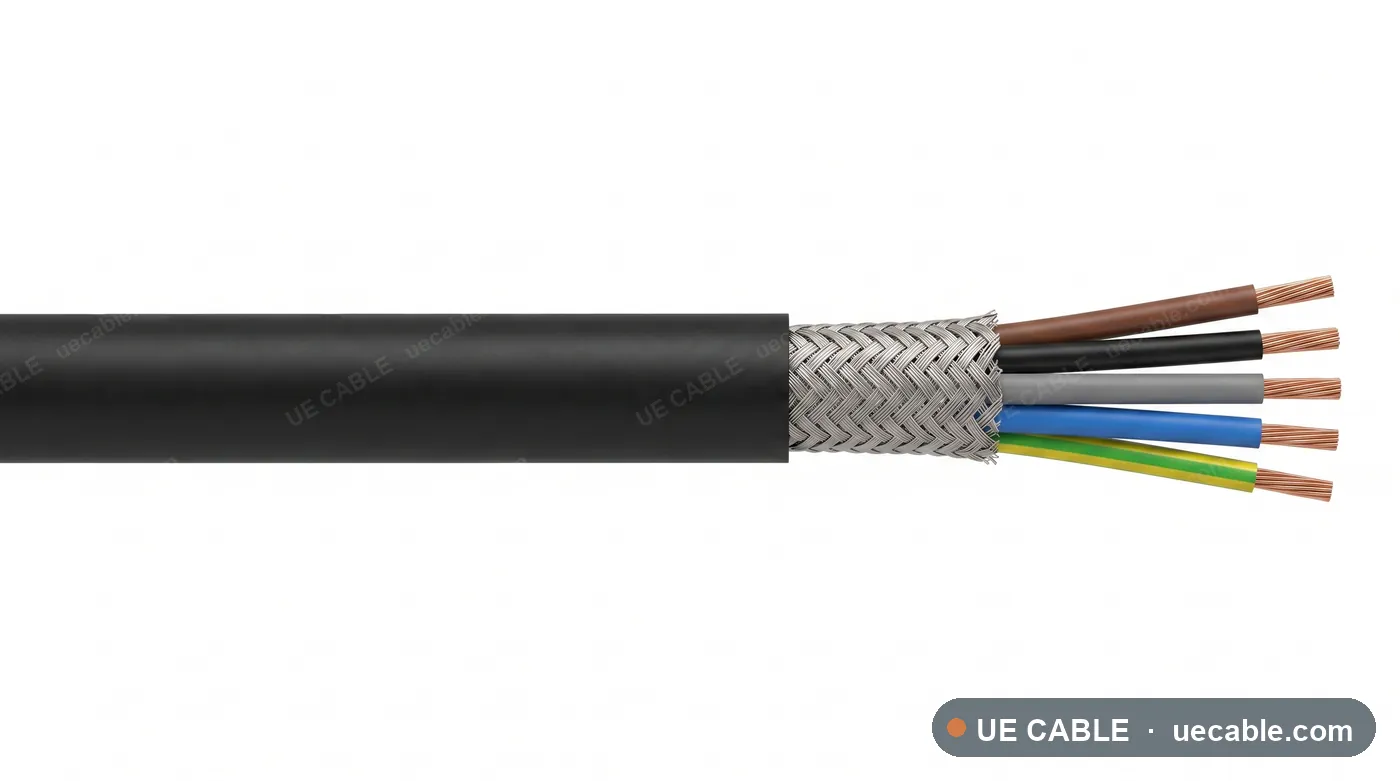

SE0875 Screened Track Crossing Signalling Cable cable construction reference

Screened track crossing cable

SE0875 Screened Track Crossing Signalling Cable

SE0875 Screened Track Crossing Signalling Cable is a railway cable construction for track crossing circuits, signal safety circuits, metro routes, using class 5 flexible tinned copper conductor, lszh railway insulation, tinned copper wire braid screen and oil and abrasion resistant lszh railway sheath.

Standard
SE0875 / LUL 1-085
Voltage class
450/750 V
Temperature class
-25 °C to +85 °C guide
Conductor
Class 5 flexible tinned copper conductor
Insulation / jacket
Oil and abrasion resistant LSZH railway sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

SE0875 Screened Track Crossing Signalling Cable is a railway cable construction for track crossing circuits, signal safety circuits, metro routes, using class 5 flexible tinned copper conductor, lszh railway insulation, tinned copper wire braid screen and oil and abrasion resistant lszh railway sheath.

  • Track crossing circuits
  • Signal safety circuits
  • Metro routes
  • Ballast level cable runs

Cable Construction

  • Class 5 flexible tinned copper conductor
  • LSZH railway insulation
  • Tinned copper wire braid screen
  • Oil and abrasion resistant LSZH railway sheath
  • Low smoke, low toxicity railway fire-performance material system

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Screened track crossing cable references

Each row is an exact screened track crossing cable cable specification sheet.

  • Railway dutyTrack crossing signalling
  • Installation zoneBallast level track crossing
  • Voltage class450/750 V
Cable referenceCable designConductor sizeMax DC resistance at 20 °COD guide
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 2 core 1.5 mm²Screened LSZH track crossing 2 core1.5 mm²12.7 Ω/km12.6 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 2 core 2.5 mm²Screened LSZH track crossing 2 core2.5 mm²7.6 Ω/km13.3 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 2 core 4 mm²Screened LSZH track crossing 2 core4 mm²4.7 Ω/km14.2 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 2 core 6 mm²Screened LSZH track crossing 2 core6 mm²3.1 Ω/km15.1 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 4 core 1.5 mm²Screened LSZH track crossing 4 core1.5 mm²12.7 Ω/km13.5 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 4 core 2.5 mm²Screened LSZH track crossing 4 core2.5 mm²7.6 Ω/km14.2 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 4 core 4 mm²Screened LSZH track crossing 4 core4 mm²4.7 Ω/km15.1 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 4 core 6 mm²Screened LSZH track crossing 4 core6 mm²3.1 Ω/km16.0 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 7 core 1.5 mm²Screened LSZH track crossing 7 core1.5 mm²12.7 Ω/km14.5 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 7 core 2.5 mm²Screened LSZH track crossing 7 core2.5 mm²7.6 Ω/km15.2 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 7 core 4 mm²Screened LSZH track crossing 7 core4 mm²4.7 Ω/km16.1 mm
SE0875 track crossing cable 450/750 V Track crossing signalling Screened LSZH track crossing 7 core 6 mm²Screened LSZH track crossing 7 core6 mm²3.1 Ω/km17.0 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
