Application And Operating Environment
Railway cables for signalling, power, telecom, rolling stock, metro systems and trackside infrastructure.
- Rail signalling
- Metro systems
- Trackside power
- Rail telecom
Rail and metro cable
Railway Cables
Railway cables for signalling, power, telecom, rolling stock, metro systems and trackside infrastructure.
Cable construction
Railway Cables
Technical reference for cable construction, sheath finish, screening and cross-section review.
Cable Construction
- Copper conductor
- LSZH and fire-safe insulation systems
- Screened signalling and data options
- Trackside and rolling-stock sheath materials
Standards And Application References
- EN 50264
- EN 50306
- EN 45545
- BS 6853
Railway Cable Selection Data
| Cable families | Signalling, power, telecom, data and rolling-stock cables |
|---|---|
| Fire safety | Low smoke, low toxicity and flame retardant railway materials |
| Voltage rating | Signal-level, 300/500 V, 0.6/1 kV or customer-specified |
| Sheath | LSZH, elastomeric, PE or rail-approved special compound |
| Screening | Pair screen, overall screen or data cable shielding |
| Installation | Trackside, tunnel, station, metro and onboard applications |
| Standards | EN 50264, EN 50306, EN 45545 and technical specifications |
| Documentation | Cable schedule support and standard cross-reference tables |
Find The Exact Cable Size
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Environment And Cable Construction Types
Cable selection should compare standard, construction, fire performance, sheath compound, mechanical protection and site conditions.
NR/PS/SIG/00005 Railway Signalling Cable
NR/PS/SIG/00005 Railway Signalling Cable is a railway cable construction for rail signalling, trackside control, signal power, using class 2 stranded plain copper conductor, lszh or polyethylene railway signalling insulation and robust lszh or pe railway outer sheath.
View technical data →
Axle counter and star quad cable

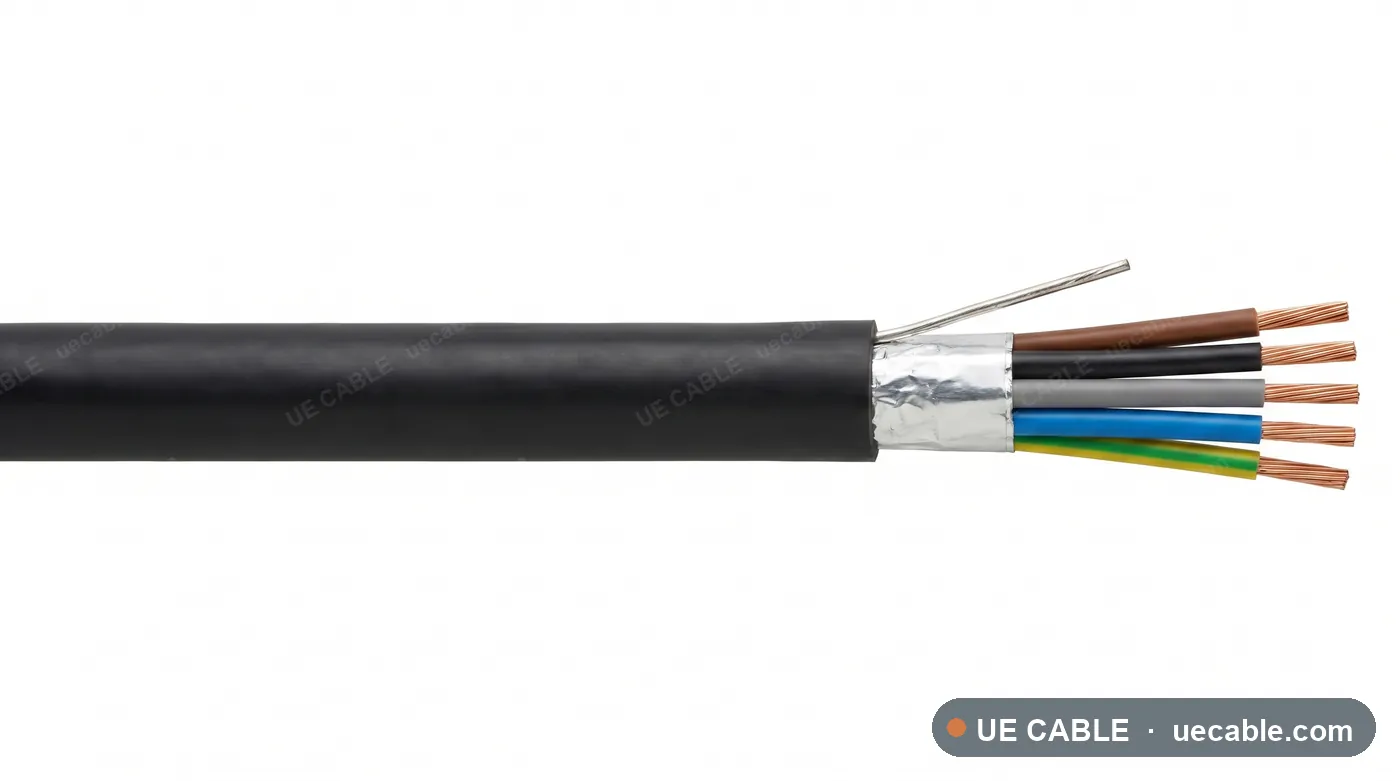

NR/L2/SIG/30060 Axle Counter Cable
NR/L2/SIG/30060 Axle Counter Cable is a railway cable construction for axle counters, track vacancy detection, trackside data links, using solid or stranded copper railway signal conductor, foam or solid polyethylene signal insulation, aluminium polyester screen with drain wire and trackside pe or lszh outer sheath.
View technical data →BR1932 Railway Twin Datalink Cable
BR1932 Railway Twin Datalink Cable is a railway cable construction for ssi systems, rail telecom, trackside data, using solid copper data conductor, polyethylene data insulation and bedding, al/pet moisture barrier and pe or lszh railway outer sheath.
View technical data →BR880 Trackside Signalling Power Cable
BR880 Trackside Signalling Power Cable is a railway cable construction for trackside power, signal power supply, railway infrastructure, using class 1 sector shaped aluminium conductor, xlpe or pvc power insulation and robust pvc or lszh railway outer sheath.
View technical data →NR/L2/ELP/27408 FGT Class 2 Signalling Power Cable
NR/L2/ELP/27408 FGT Class 2 Signalling Power Cable is a railway cable construction for class 2 signalling power, trackside power, rodent-prone routes, using class 2 stranded copper conductor, xlpe power insulation, fibre glass tape rodent barrier and trackside lszh or mdpe railway outer sheath.
View technical data →
Metro relay room single-core cable

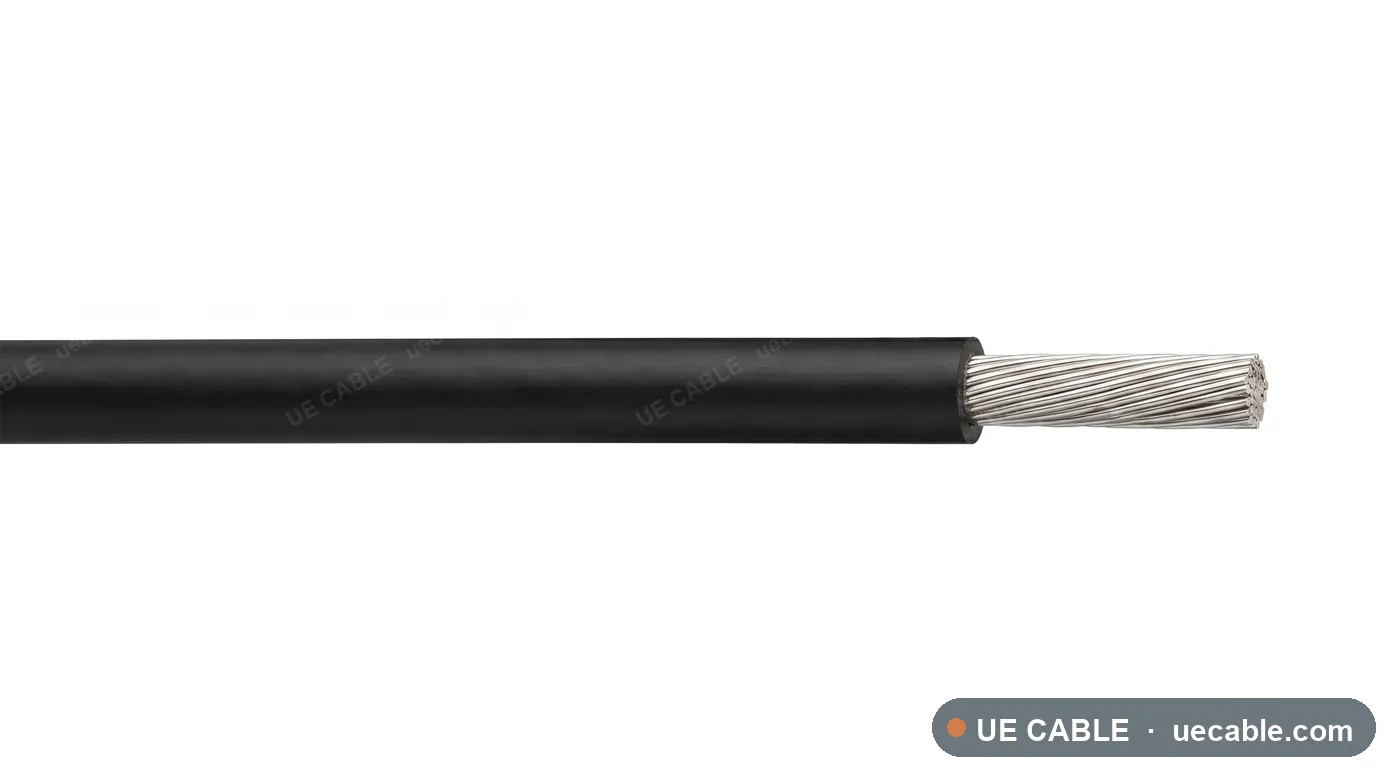

SE1093 Metro Single Core Signalling Cable
SE1093 Metro Single Core Signalling Cable is a railway cable construction for metro signalling, relay rooms, control panels, using class 2 stranded tinned copper conductor, epr railway insulation and limited fire hazard railway outer sheath.
View technical data →SE0875 Screened Track Crossing Signalling Cable
SE0875 Screened Track Crossing Signalling Cable is a railway cable construction for track crossing circuits, signal safety circuits, metro routes, using class 5 flexible tinned copper conductor, lszh railway insulation, tinned copper wire braid screen and oil and abrasion resistant lszh railway sheath.
View technical data →
Concentric signalling cable
SE1047 Concentric Railway Signalling Cable
SE1047 Concentric Railway Signalling Cable is a railway cable construction for central termination frames, signalling equipment, trackside bracket routes, using stranded tinned copper conductor, railway signalling insulation, concentric copper conductor layer and pvc or limited fire hazard railway sheath.
View technical data →
Rail bonding conductor
Rail Bonding And Return Conductor
Rail Bonding And Return Conductor is a railway cable construction for rail bonding, traction return, earthing links, using flexible tinned copper conductor, bare, pvc covered or lszh covered option insulation and pvc, lszh or bare conductor option outer sheath.
View technical data →Common References
Available Options
- Railway signalling cable
- Trackside cable
- Metro cable
- Railway telecom cable
- Rail LSZH cable
- Railway fire resistant cable
FAQ
Railway Cables — common questions
What are railway cables?
Railway cables for signalling, power, telecom, rolling stock, metro systems and trackside infrastructure. They are built to EN 50264, EN 50306, EN 45545, BS 6853.
Which standards do railway cables comply with?
UE Cable railway cables are manufactured and tested to EN 50264, EN 50306, EN 45545, BS 6853. The exact standard for each construction is stated on its specification sheet.
What sizes and configurations are available?
9 construction families are catalogued under railway cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Can railway cables be custom-made, and how fast is a quote?
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
