NR/PS/SIG/00005 Railway Signalling Cable cable construction reference

Trackside signalling cable

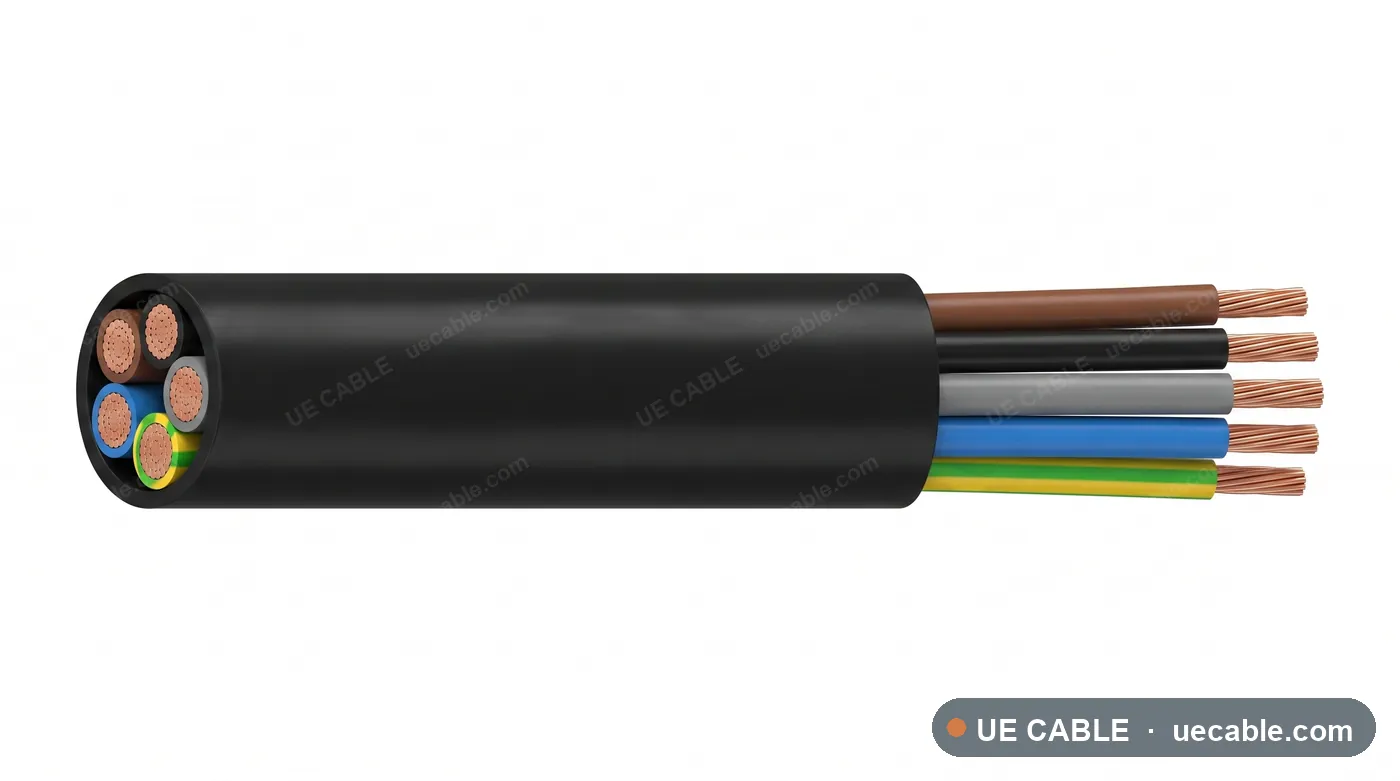

NR/PS/SIG/00005 Railway Signalling Cable

NR/PS/SIG/00005 Railway Signalling Cable is a railway cable construction for rail signalling, trackside control, signal power, using class 2 stranded plain copper conductor, lszh or polyethylene railway signalling insulation and robust lszh or pe railway outer sheath.

Standard
NR/PS/SIG/00005
Voltage class
650/1100 V or 250/440 V
Temperature class
-25 °C to +70 °C guide
Conductor
Class 2 stranded plain copper conductor
Insulation / jacket
Robust LSZH or PE railway outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

NR/PS/SIG/00005 Railway Signalling Cable is a railway cable construction for rail signalling, trackside control, signal power, using class 2 stranded plain copper conductor, lszh or polyethylene railway signalling insulation and robust lszh or pe railway outer sheath.

  • Rail signalling
  • Trackside control
  • Signal power
  • Location cases

Cable Construction

  • Class 2 stranded plain copper conductor
  • LSZH or polyethylene railway signalling insulation
  • Robust LSZH or PE railway outer sheath
  • Low smoke, low toxicity railway fire-performance material system

Specifications

Select a cable size.

Each row below is a complete specification sheet — 10 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Railway signalling cable specification references

Each row is an exact railway signalling cable cable specification sheet. Shared signalling standard, conductor, insulation and sheath data are listed above.

  • Railway dutyTrackside signalling
  • Installation zoneTrackside trough and location case
  • Voltage class650/1100 V or 250/440 V
Cable referenceCable designConductor sizeMax DC resistance at 20 °COD guide
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type A signalling cable 4 core 1.5 mm²Type A signalling cable 4 core1.5 mm²12.7 Ω/km13.0 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type A signalling cable 4 core 2.5 mm²Type A signalling cable 4 core2.5 mm²7.6 Ω/km13.7 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type B signalling cable 7 core 1.5 mm²Type B signalling cable 7 core1.5 mm²12.7 Ω/km14.0 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type B signalling cable 7 core 2.5 mm²Type B signalling cable 7 core2.5 mm²7.6 Ω/km14.7 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type C signalling cable 12 core 1.5 mm²Type C signalling cable 12 core1.5 mm²12.7 Ω/km15.3 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type C signalling cable 12 core 2.5 mm²Type C signalling cable 12 core2.5 mm²7.6 Ω/km16.0 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type D signalling cable 19 core 1.5 mm²Type D signalling cable 19 core1.5 mm²12.7 Ω/km16.7 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type D signalling cable 19 core 2.5 mm²Type D signalling cable 19 core2.5 mm²7.6 Ω/km17.4 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type E signalling cable 27 core 1.5 mm²Type E signalling cable 27 core1.5 mm²12.7 Ω/km18.0 mm
Railway signalling cable 650/1100 V or 250/440 V Trackside signalling Type E signalling cable 27 core 2.5 mm²Type E signalling cable 27 core2.5 mm²7.6 Ω/km18.7 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
