IEC 60092-354 Marine Medium Voltage Cable

IEC 60092-354 Marine Medium Voltage Cable is a specific marine and offshore cable construction for ship propulsion, offshore power distribution, marine generators applications, using tinned copper conductor, xlpe or epr insulation, conductor screen, insulation screen and metallic screen, armour or braid according to route and system design and shf1, shf2 or mud-resistant sheath.

Standard: IEC 60092-354
Voltage class: 3.6/6 kV to 8.7/15 kV and customer-specified marine MV ratings
Conductor: Tinned copper conductor
Insulation / jacket: SHF1, SHF2 or mud-resistant sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Ship propulsion
Offshore power distribution
Marine generators
Platform feeders

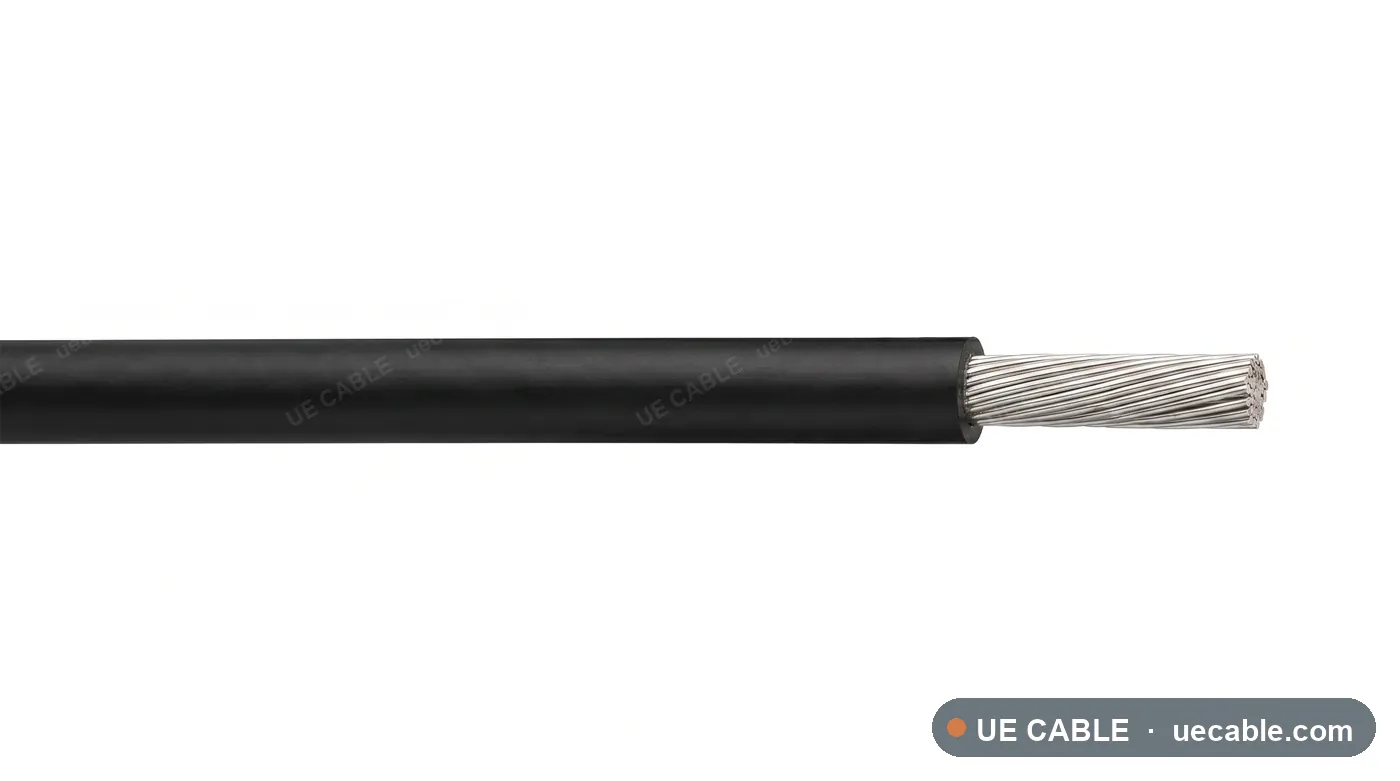

Cable Construction

Tinned copper conductor
XLPE or EPR insulation
Conductor screen, insulation screen and metallic screen
Armour or braid according to route and system design
SHF1, SHF2 or mud-resistant sheath
Marine-grade marking and packing according to project cable schedule

Specifications

Select a cable size.

Each row below is a complete specification sheet — 30 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Medium voltage power specification references

Each row is an exact marine/offshore cable specification sheet. Confirm class approval, installation zone, mud exposure and fire requirement before quotation.

Circuit typeMedium voltage power
Fire / mud behaviorFlame retardant, low smoke and halogen-free sheath options

Cable reference	Core / pair design	Conductor size	Voltage class	OD guide
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 1 core 25 mm²	1 core	25 mm²	3.6/6 kV	37 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 1 core 50 mm²	1 core	50 mm²	3.6/6 kV	41 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 1 core 95 mm²	1 core	95 mm²	3.6/6 kV	47 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 1 core 185 mm²	1 core	185 mm²	3.6/6 kV	55 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 1 core 300 mm²	1 core	300 mm²	3.6/6 kV	63 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 3 core 25 mm²	3 core	25 mm²	3.6/6 kV	39 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 3 core 50 mm²	3 core	50 mm²	3.6/6 kV	44 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 3 core 95 mm²	3 core	95 mm²	3.6/6 kV	49 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 3 core 185 mm²	3 core	185 mm²	3.6/6 kV	57 mm
IEC 60092-354 marine MV cable Medium voltage power 3.6/6 kV 3 core 300 mm²	3 core	300 mm²	3.6/6 kV	65 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 1 core 25 mm²	1 core	25 mm²	6/10 kV	37 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 1 core 50 mm²	1 core	50 mm²	6/10 kV	41 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 1 core 95 mm²	1 core	95 mm²	6/10 kV	47 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 1 core 185 mm²	1 core	185 mm²	6/10 kV	55 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 1 core 300 mm²	1 core	300 mm²	6/10 kV	63 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 3 core 25 mm²	3 core	25 mm²	6/10 kV	39 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 3 core 50 mm²	3 core	50 mm²	6/10 kV	44 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 3 core 95 mm²	3 core	95 mm²	6/10 kV	49 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 3 core 185 mm²	3 core	185 mm²	6/10 kV	57 mm
IEC 60092-354 marine MV cable Medium voltage power 6/10 kV 3 core 300 mm²	3 core	300 mm²	6/10 kV	65 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 1 core 25 mm²	1 core	25 mm²	8.7/15 kV	37 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 1 core 50 mm²	1 core	50 mm²	8.7/15 kV	41 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 1 core 95 mm²	1 core	95 mm²	8.7/15 kV	47 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 1 core 185 mm²	1 core	185 mm²	8.7/15 kV	55 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 1 core 300 mm²	1 core	300 mm²	8.7/15 kV	63 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 3 core 25 mm²	3 core	25 mm²	8.7/15 kV	39 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 3 core 50 mm²	3 core	50 mm²	8.7/15 kV	44 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 3 core 95 mm²	3 core	95 mm²	8.7/15 kV	49 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 3 core 185 mm²	3 core	185 mm²	8.7/15 kV	57 mm
IEC 60092-354 marine MV cable Medium voltage power 8.7/15 kV 3 core 300 mm²	3 core	300 mm²	8.7/15 kV	65 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
