Screened medium-voltage ABC

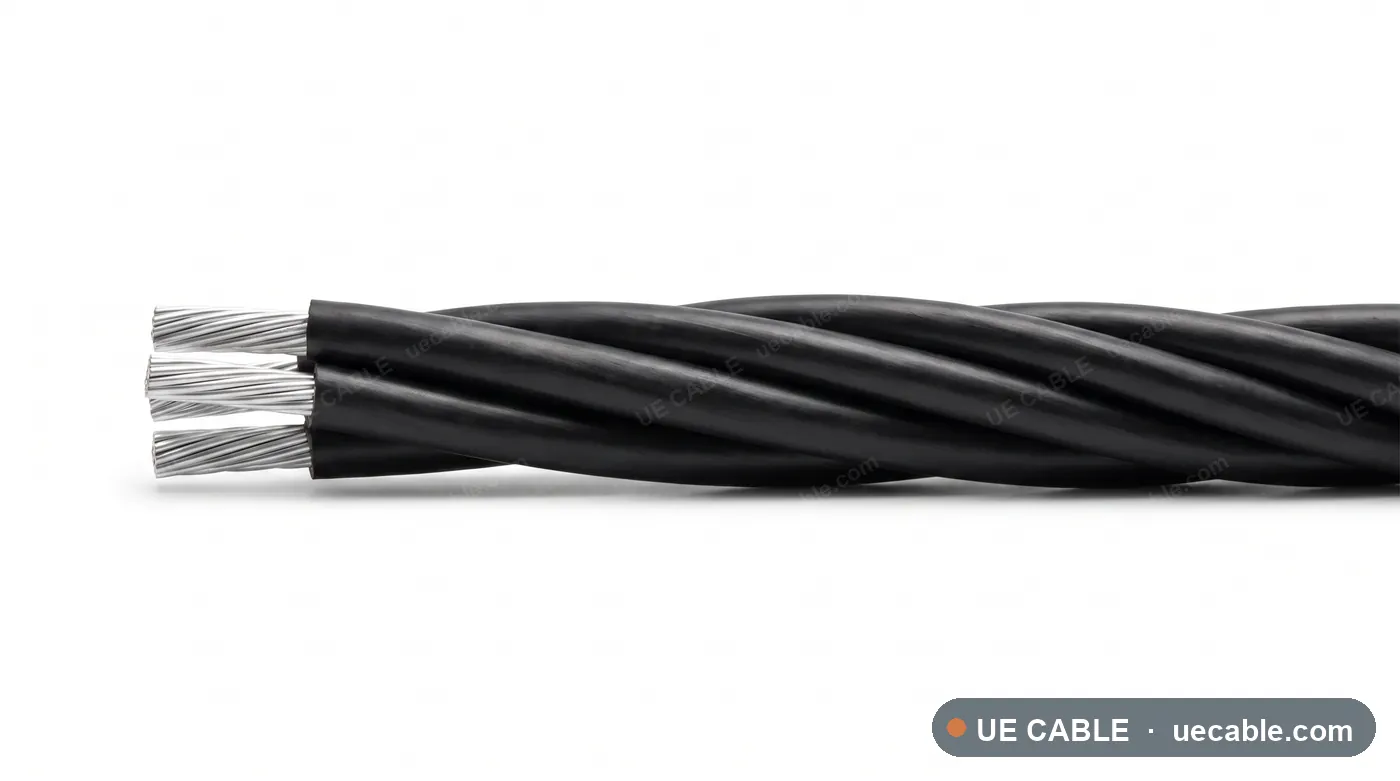

IEC 60502-2 Screened MV Aerial Bundled Cable 6.35/11kV is an aerial bundled cable construction for mv overhead distribution, rural feeders, utility distribution, using aluminium phase conductors, xlpe insulation with semi-conductive screens, galvanised steel support conductor and black hdpe outer sheath.
Cable Type Data
IEC 60502-2 Screened MV Aerial Bundled Cable 6.35/11kV is an aerial bundled cable construction for mv overhead distribution, rural feeders, utility distribution, using aluminium phase conductors, xlpe insulation with semi-conductive screens, galvanised steel support conductor and black hdpe outer sheath.
Specifications
Each row below is a complete specification sheet — 7 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.
| Cable reference | Phase conductor | Neutral / messenger | Max DC resistance at 20 °C | Bundle OD guide | Weight guide |
|---|---|---|---|---|---|
| IEC 60502-2 screened MV ABC 6.35/11 kV 3 phase + support conductor 35 mm² 25 mm² galvanised steel support conductor | 35 mm² stranded aluminium phase conductor | 25 mm² galvanised steel support conductor | 0.868 Ω/km | 53 mm | 2.86 kg/m |
| IEC 60502-2 screened MV ABC 6.35/11 kV 3 phase + support conductor 50 mm² 25 mm² galvanised steel support conductor | 50 mm² stranded aluminium phase conductor | 25 mm² galvanised steel support conductor | 0.641 Ω/km | 55 mm | 3.07 kg/m |
| IEC 60502-2 screened MV ABC 6.35/11 kV 3 phase + support conductor 70 mm² 25 mm² galvanised steel support conductor | 70 mm² stranded aluminium phase conductor | 25 mm² galvanised steel support conductor | 0.443 Ω/km | 58 mm | 3.33 kg/m |
| IEC 60502-2 screened MV ABC 6.35/11 kV 3 phase + support conductor 95 mm² 50 mm² galvanised steel support conductor | 95 mm² stranded aluminium phase conductor | 50 mm² galvanised steel support conductor | 0.320 Ω/km | 61 mm | 3.75 kg/m |
| IEC 60502-2 screened MV ABC 6.35/11 kV 3 phase + support conductor 120 mm² 50 mm² galvanised steel support conductor | 120 mm² stranded aluminium phase conductor | 50 mm² galvanised steel support conductor | 0.253 Ω/km | 64 mm | 4.09 kg/m |
| IEC 60502-2 screened MV ABC 6.35/11 kV 3 phase + support conductor 150 mm² 50 mm² galvanised steel support conductor | 150 mm² stranded aluminium phase conductor | 50 mm² galvanised steel support conductor | 0.206 Ω/km | 66 mm | 4.50 kg/m |
| IEC 60502-2 screened MV ABC 6.35/11 kV 3 phase + support conductor 185 mm² 50 mm² galvanised steel support conductor | 185 mm² stranded aluminium phase conductor | 50 mm² galvanised steel support conductor | 0.164 Ω/km | 69 mm | 4.97 kg/m |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
