AS/NZS 3599 Screen-Free MV Aerial Bundled Cable 12.7/22kV

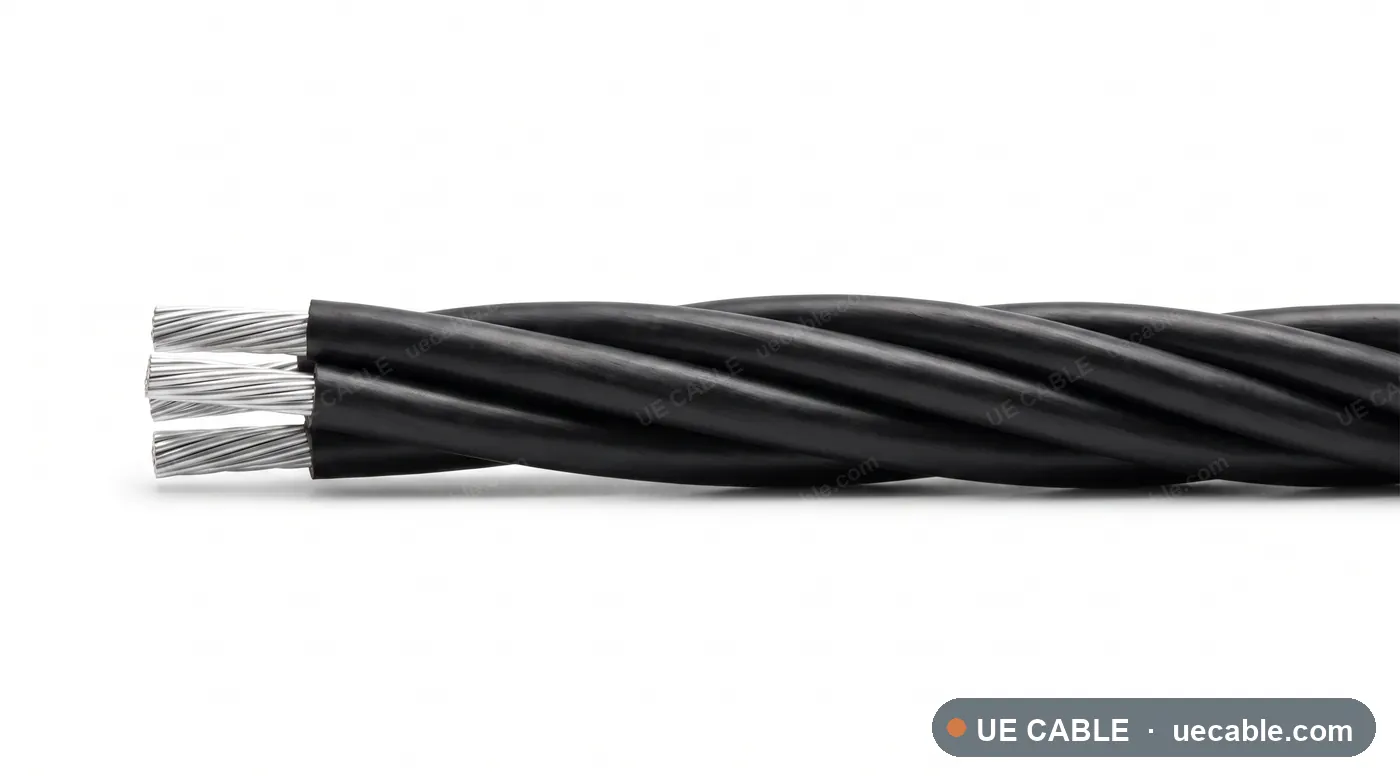

AS/NZS 3599 Screen-Free MV Aerial Bundled Cable 12.7/22kV is an aerial bundled cable construction for mv aerial feeders, rural distribution, bushfire-risk reduction routes, using aluminium phase conductors, xlpe insulation for mv aerial bundle, no separate messenger and black hdpe outer sheath.

Standard: AS/NZS 3599 Part 1
Voltage class: 12.7/22 kV
Conductor: 35 mm² aluminium, 50 mm² aluminium, 70 mm² aluminium, 95 mm² aluminium, 120 mm² aluminium, 150 mm² aluminium, 185 mm² aluminium
Insulation / jacket: Black HDPE outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

MV aerial feeders
Rural distribution
Bushfire-risk reduction routes
Utility overhead networks

Cable Construction

Class 2 stranded aluminium phase conductor
XLPE insulation for MV aerial bundle
No separate messenger
No metallic screen aerial bundle construction
Black HDPE outer sheath
Medium-voltage overhead distribution and utility feeder routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 7 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Aluminium phase conductor bundle

Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.

Voltage class12.7/22 kV
Bundle layout3 phase screen-free bundle
InsulationXLPE insulation for MV aerial bundle
Screen / supportNo metallic screen aerial bundle construction

Cable reference	Phase conductor	Neutral / messenger	Max DC resistance at 20 °C	Bundle OD guide	Weight guide
AS/NZS 3599 screen-free MV ABC 12.7/22 kV 3 phase screen-free bundle 35 mm² 25 mm² insulated aluminium neutral	35 mm² stranded aluminium phase conductor	25 mm² insulated aluminium neutral	0.868 Ω/km	58 mm	2.86 kg/m
AS/NZS 3599 screen-free MV ABC 12.7/22 kV 3 phase screen-free bundle 50 mm² 50 mm² insulated aluminium neutral	50 mm² stranded aluminium phase conductor	50 mm² insulated aluminium neutral	0.641 Ω/km	60 mm	3.15 kg/m
AS/NZS 3599 screen-free MV ABC 12.7/22 kV 3 phase screen-free bundle 70 mm² 50 mm² insulated aluminium neutral	70 mm² stranded aluminium phase conductor	50 mm² insulated aluminium neutral	0.443 Ω/km	63 mm	3.42 kg/m
AS/NZS 3599 screen-free MV ABC 12.7/22 kV 3 phase screen-free bundle 95 mm² 70 mm² insulated aluminium neutral	95 mm² stranded aluminium phase conductor	70 mm² insulated aluminium neutral	0.320 Ω/km	66 mm	3.82 kg/m
AS/NZS 3599 screen-free MV ABC 12.7/22 kV 3 phase screen-free bundle 120 mm² 70 mm² insulated aluminium neutral	120 mm² stranded aluminium phase conductor	70 mm² insulated aluminium neutral	0.253 Ω/km	69 mm	4.15 kg/m
AS/NZS 3599 screen-free MV ABC 12.7/22 kV 3 phase screen-free bundle 150 mm² 70 mm² insulated aluminium neutral	150 mm² stranded aluminium phase conductor	70 mm² insulated aluminium neutral	0.206 Ω/km	71 mm	4.56 kg/m
AS/NZS 3599 screen-free MV ABC 12.7/22 kV 3 phase screen-free bundle 185 mm² 70 mm² insulated aluminium neutral	185 mm² stranded aluminium phase conductor	70 mm² insulated aluminium neutral	0.164 Ω/km	74 mm	5.03 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
