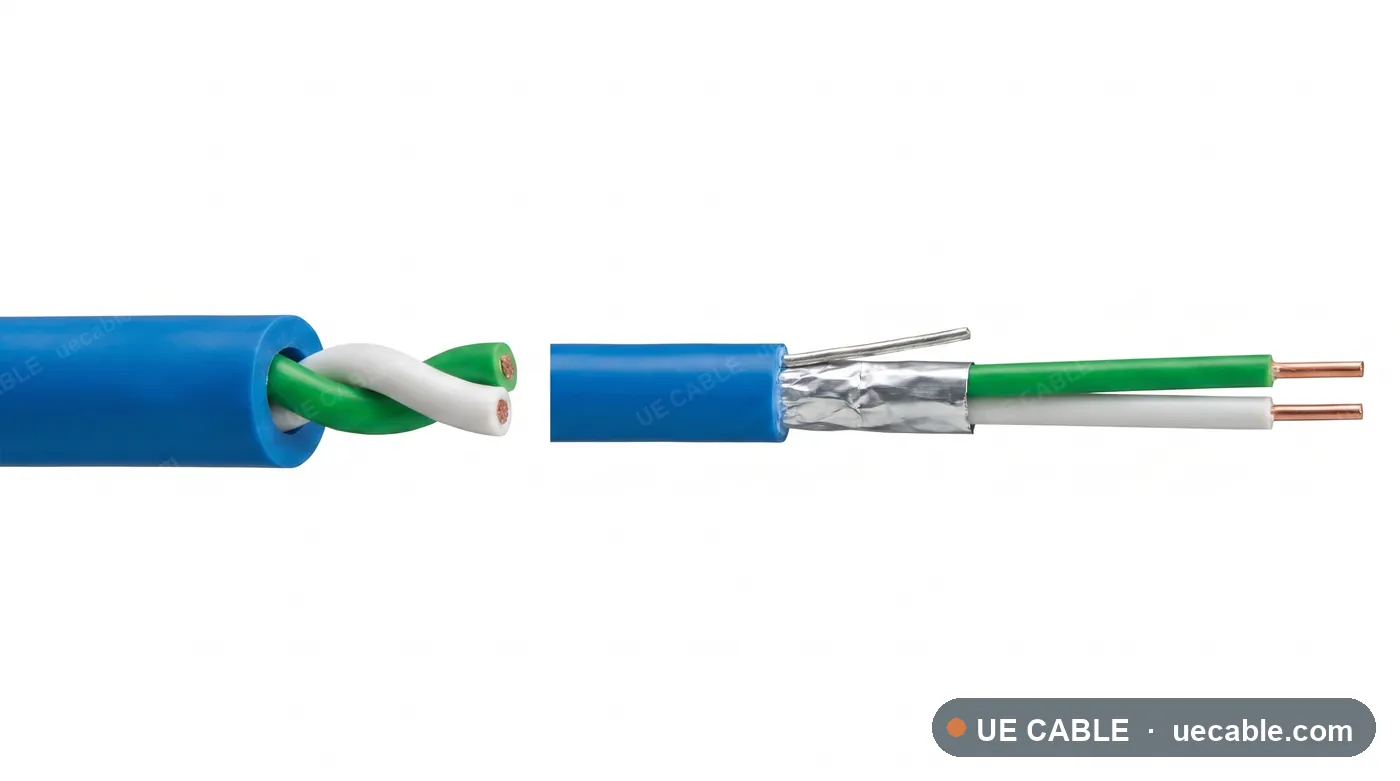

Thermocouple Compensating Cable cable construction reference

Compensating cable

Thermocouple Compensating Cable

Thermocouple Compensating Cable is a thermocouple cable reference for thermocouple compensation circuits, control panels, temperature transmitter wiring, using KCA, KCB, RCA, RCB, SCA, SCB thermocouple alloy conductors, pvc, silicone or pfa insulation selected by route temperature and screen-free pair or optional overall screen.

Standard
IEC 60584-3
Voltage class
Instrumentation signal circuit
Temperature class
0 °C to +200 °C depending on compensating type and insulation
Conductor
1/0.5 mm solid / 24 AWG
Insulation / jacket
PVC, silicone or PFA outer jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Thermocouple Compensating Cable is a thermocouple cable reference for thermocouple compensation circuits, control panels, temperature transmitter wiring, using KCA, KCB, RCA, RCB, SCA, SCB thermocouple alloy conductors, pvc, silicone or pfa insulation selected by route temperature and screen-free pair or optional overall screen.

  • Thermocouple compensation circuits
  • Control panels
  • Temperature transmitter wiring
  • Process measurement

Cable Construction

  • Thermocouple alloy positive and negative conductors
  • Compensating grade for KCA, KCB, RCA, RCB, SCA, SCB circuits
  • PVC, silicone or PFA insulation selected by route temperature
  • Screen-free pair or optional overall screen
  • PVC, silicone or PFA outer jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Thermocouple compensating cable specification references

Each row is an exact thermocouple cable cable specification sheet.

  • Cable gradeCompensating grade
  • Conductor construction1/0.5 mm solid / 24 AWG
  • Insulation / sheathPVC, silicone or PFA insulation selected by route temperature
  • Screen / protectionScreen-free pair or optional overall screen
  • Temperature range0 °C to +200 °C depending on compensating type and insulation
  • Tolerance classIEC 60584-3 compensating tolerance
Cable referenceThermocouple typePair layoutAlloy combinationOD guide
Thermocouple compensating cable KCA 1 pair 1/0.5 mm solid / 24 AWGKCA1 pairCompensating alloy pair for Type K8.0 mm
Thermocouple compensating cable KCA 2 pair 1/0.5 mm solid / 24 AWGKCA2 pairCompensating alloy pair for Type K9.1 mm
Thermocouple compensating cable KCB 1 pair 1/0.5 mm solid / 24 AWGKCB1 pairCompensating alloy pair for Type K8.0 mm
Thermocouple compensating cable KCB 2 pair 1/0.5 mm solid / 24 AWGKCB2 pairCompensating alloy pair for Type K9.1 mm
Thermocouple compensating cable RCA 1 pair 1/0.5 mm solid / 24 AWGRCA1 pairCompensating alloy pair for Type R8.0 mm
Thermocouple compensating cable RCA 2 pair 1/0.5 mm solid / 24 AWGRCA2 pairCompensating alloy pair for Type R9.1 mm
Thermocouple compensating cable RCB 1 pair 1/0.5 mm solid / 24 AWGRCB1 pairCompensating alloy pair for Type R8.0 mm
Thermocouple compensating cable RCB 2 pair 1/0.5 mm solid / 24 AWGRCB2 pairCompensating alloy pair for Type R9.1 mm
Thermocouple compensating cable SCA 1 pair 1/0.5 mm solid / 24 AWGSCA1 pairCompensating alloy pair for Type S8.0 mm
Thermocouple compensating cable SCA 2 pair 1/0.5 mm solid / 24 AWGSCA2 pairCompensating alloy pair for Type S9.1 mm
Thermocouple compensating cable SCB 1 pair 1/0.5 mm solid / 24 AWGSCB1 pairCompensating alloy pair for Type S8.0 mm
Thermocouple compensating cable SCB 2 pair 1/0.5 mm solid / 24 AWGSCB2 pairCompensating alloy pair for Type S9.1 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
