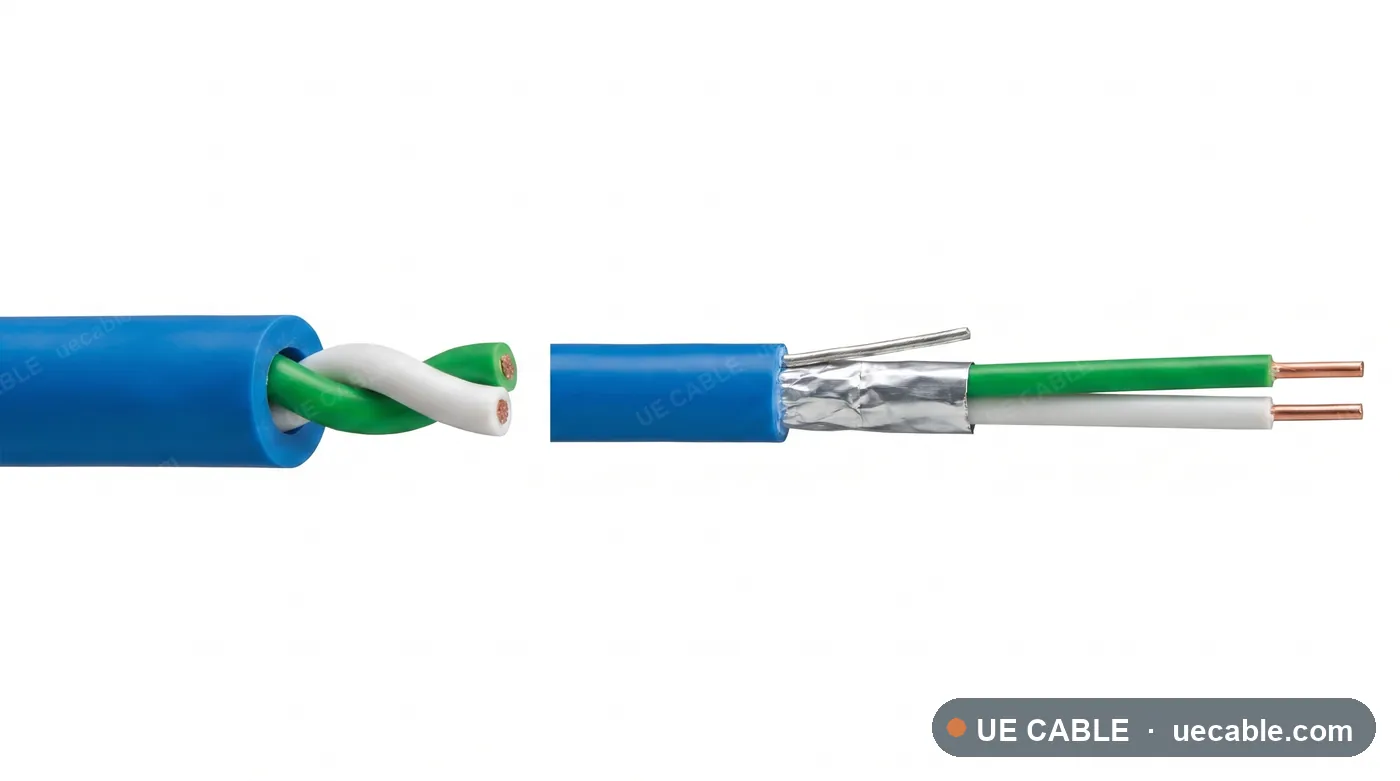

Silicone Rubber Thermocouple Extension Cable cable construction reference

Flexible silicone thermocouple extension cable

Silicone Rubber Thermocouple Extension Cable

Silicone Rubber Thermocouple Extension Cable is a thermocouple cable reference for flexible temperature measurement, equipment wiring, cold and hot machinery, using KX, JX, TX, EX, NX thermocouple alloy conductors, silicone rubber thermocouple insulation and optional tinned copper braid screen by circuit requirement.

Standard
IEC 60584-3 / ANSI MC96.1
Voltage class
Instrumentation signal circuit
Temperature class
-60 °C to +180 °C cable route
Conductor
1/0.5 mm solid / 24 AWG, 7/0.2 mm stranded / 24 AWG
Insulation / jacket
Flame retardant silicone rubber jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Silicone Rubber Thermocouple Extension Cable is a thermocouple cable reference for flexible temperature measurement, equipment wiring, cold and hot machinery, using KX, JX, TX, EX, NX thermocouple alloy conductors, silicone rubber thermocouple insulation and optional tinned copper braid screen by circuit requirement.

  • Flexible temperature measurement
  • Equipment wiring
  • Cold and hot machinery
  • Laboratory systems

Cable Construction

  • Thermocouple alloy positive and negative conductors
  • Extension grade for KX, JX, TX, EX, NX circuits
  • Silicone rubber thermocouple insulation
  • Optional tinned copper braid screen by circuit requirement
  • Flame retardant silicone rubber jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Silicone rubber thermocouple extension cable specification references

Each row is an exact thermocouple cable cable specification sheet.

  • Cable gradeExtension grade
  • Insulation / sheathSilicone rubber thermocouple insulation
  • Screen / protectionOptional tinned copper braid screen by circuit requirement
  • Temperature range-60 °C to +180 °C cable route
  • Tolerance classIEC 60584-3 Class 1 / Class 2 option
Cable referenceThermocouple typePair layoutConductor constructionAlloy combinationOD guide
Silicone rubber thermocouple extension cable KX 1 pair 1/0.5 mm solid / 24 AWGKX1 pair1/0.5 mm solid / 24 AWGPositive NiCr / negative NiAl8.5 mm
Silicone rubber thermocouple extension cable KX 1 pair 7/0.2 mm stranded / 24 AWGKX1 pair7/0.2 mm stranded / 24 AWGPositive NiCr / negative NiAl8.7 mm
Silicone rubber thermocouple extension cable KX 2 pair 1/0.5 mm solid / 24 AWGKX2 pair1/0.5 mm solid / 24 AWGPositive NiCr / negative NiAl9.6 mm
Silicone rubber thermocouple extension cable KX 2 pair 7/0.2 mm stranded / 24 AWGKX2 pair7/0.2 mm stranded / 24 AWGPositive NiCr / negative NiAl9.8 mm
Silicone rubber thermocouple extension cable JX 1 pair 1/0.5 mm solid / 24 AWGJX1 pair1/0.5 mm solid / 24 AWGPositive iron / negative constantan8.5 mm
Silicone rubber thermocouple extension cable JX 1 pair 7/0.2 mm stranded / 24 AWGJX1 pair7/0.2 mm stranded / 24 AWGPositive iron / negative constantan8.7 mm
Silicone rubber thermocouple extension cable JX 2 pair 1/0.5 mm solid / 24 AWGJX2 pair1/0.5 mm solid / 24 AWGPositive iron / negative constantan9.6 mm
Silicone rubber thermocouple extension cable JX 2 pair 7/0.2 mm stranded / 24 AWGJX2 pair7/0.2 mm stranded / 24 AWGPositive iron / negative constantan9.8 mm
Silicone rubber thermocouple extension cable TX 1 pair 1/0.5 mm solid / 24 AWGTX1 pair1/0.5 mm solid / 24 AWGPositive copper / negative constantan8.5 mm
Silicone rubber thermocouple extension cable TX 1 pair 7/0.2 mm stranded / 24 AWGTX1 pair7/0.2 mm stranded / 24 AWGPositive copper / negative constantan8.7 mm
Silicone rubber thermocouple extension cable TX 2 pair 1/0.5 mm solid / 24 AWGTX2 pair1/0.5 mm solid / 24 AWGPositive copper / negative constantan9.6 mm
Silicone rubber thermocouple extension cable TX 2 pair 7/0.2 mm stranded / 24 AWGTX2 pair7/0.2 mm stranded / 24 AWGPositive copper / negative constantan9.8 mm
Silicone rubber thermocouple extension cable EX 1 pair 1/0.5 mm solid / 24 AWGEX1 pair1/0.5 mm solid / 24 AWGPositive NiCr / negative constantan8.5 mm
Silicone rubber thermocouple extension cable EX 1 pair 7/0.2 mm stranded / 24 AWGEX1 pair7/0.2 mm stranded / 24 AWGPositive NiCr / negative constantan8.7 mm
Silicone rubber thermocouple extension cable EX 2 pair 1/0.5 mm solid / 24 AWGEX2 pair1/0.5 mm solid / 24 AWGPositive NiCr / negative constantan9.6 mm
Silicone rubber thermocouple extension cable EX 2 pair 7/0.2 mm stranded / 24 AWGEX2 pair7/0.2 mm stranded / 24 AWGPositive NiCr / negative constantan9.8 mm
Silicone rubber thermocouple extension cable NX 1 pair 1/0.5 mm solid / 24 AWGNX1 pair1/0.5 mm solid / 24 AWGPositive nicrosil / negative nisil8.5 mm
Silicone rubber thermocouple extension cable NX 1 pair 7/0.2 mm stranded / 24 AWGNX1 pair7/0.2 mm stranded / 24 AWGPositive nicrosil / negative nisil8.7 mm
Silicone rubber thermocouple extension cable NX 2 pair 1/0.5 mm solid / 24 AWGNX2 pair1/0.5 mm solid / 24 AWGPositive nicrosil / negative nisil9.6 mm
Silicone rubber thermocouple extension cable NX 2 pair 7/0.2 mm stranded / 24 AWGNX2 pair7/0.2 mm stranded / 24 AWGPositive nicrosil / negative nisil9.8 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
