PFA Insulated Thermocouple Extension Cable

PFA Insulated Thermocouple Extension Cable is a thermocouple cable reference for autoclaves, chemical process lines, sterilizers, using KX, JX, TX thermocouple alloy conductors, pfa insulated conductors with pfa outer jacket and screen-free bonded or twisted pair construction.

Standard: IEC 60584-3 / ANSI MC96.1
Voltage class: Instrumentation signal circuit
Temperature class: -75 °C to +250 °C cable route
Conductor: 1/0.2 mm solid / 32 AWG, 1/0.3 mm solid / 28 AWG, 1/0.5 mm solid / 24 AWG, 7/0.2 mm stranded / 24 AWG
Insulation / jacket: PFA outer jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Autoclaves
Chemical process lines
Sterilizers
High-temperature measurement

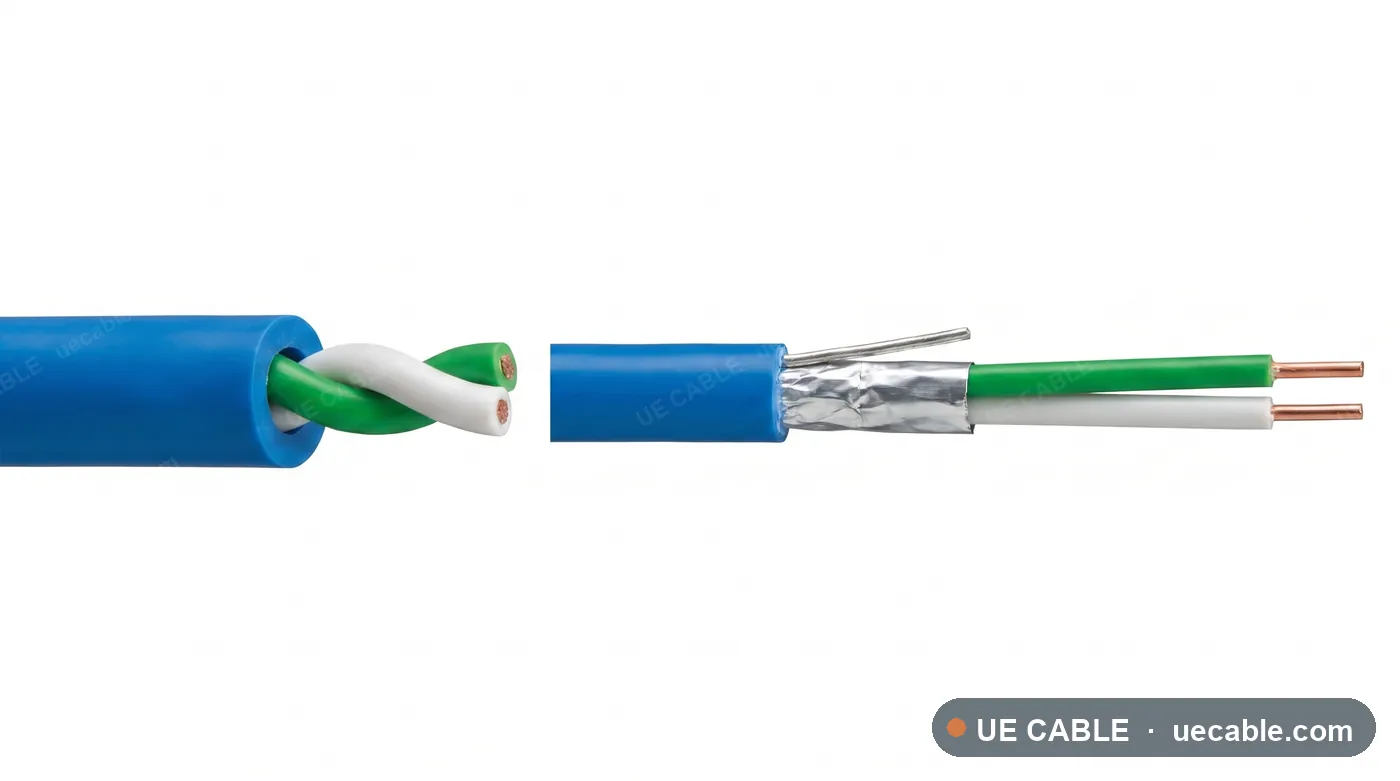

Cable Construction

Thermocouple alloy positive and negative conductors
Extension grade for KX, JX, TX circuits
PFA insulated conductors with PFA outer jacket
Screen-free bonded or twisted pair construction
PFA outer jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

PFA insulated thermocouple extension cable specification references

Each row is an exact thermocouple cable cable specification sheet.

Cable gradeExtension grade
Pair layout1 pair
Insulation / sheathPFA insulated conductors with PFA outer jacket
Screen / protectionScreen-free bonded or twisted pair construction
Temperature range-75 °C to +250 °C cable route
Tolerance classIEC 60584-3 Class 1 / Class 2 option

Cable reference	Thermocouple type	Conductor construction	Alloy combination	OD guide
PFA insulated thermocouple extension cable KX 1 pair 1/0.2 mm solid / 32 AWG	KX	1/0.2 mm solid / 32 AWG	Positive NiCr / negative NiAl	7.7 mm
PFA insulated thermocouple extension cable KX 1 pair 1/0.3 mm solid / 28 AWG	KX	1/0.3 mm solid / 28 AWG	Positive NiCr / negative NiAl	7.8 mm
PFA insulated thermocouple extension cable KX 1 pair 1/0.5 mm solid / 24 AWG	KX	1/0.5 mm solid / 24 AWG	Positive NiCr / negative NiAl	8.0 mm
PFA insulated thermocouple extension cable KX 1 pair 7/0.2 mm stranded / 24 AWG	KX	7/0.2 mm stranded / 24 AWG	Positive NiCr / negative NiAl	8.2 mm
PFA insulated thermocouple extension cable JX 1 pair 1/0.2 mm solid / 32 AWG	JX	1/0.2 mm solid / 32 AWG	Positive iron / negative constantan	7.7 mm
PFA insulated thermocouple extension cable JX 1 pair 1/0.3 mm solid / 28 AWG	JX	1/0.3 mm solid / 28 AWG	Positive iron / negative constantan	7.8 mm
PFA insulated thermocouple extension cable JX 1 pair 1/0.5 mm solid / 24 AWG	JX	1/0.5 mm solid / 24 AWG	Positive iron / negative constantan	8.0 mm
PFA insulated thermocouple extension cable JX 1 pair 7/0.2 mm stranded / 24 AWG	JX	7/0.2 mm stranded / 24 AWG	Positive iron / negative constantan	8.2 mm
PFA insulated thermocouple extension cable TX 1 pair 1/0.2 mm solid / 32 AWG	TX	1/0.2 mm solid / 32 AWG	Positive copper / negative constantan	7.7 mm
PFA insulated thermocouple extension cable TX 1 pair 1/0.3 mm solid / 28 AWG	TX	1/0.3 mm solid / 28 AWG	Positive copper / negative constantan	7.8 mm
PFA insulated thermocouple extension cable TX 1 pair 1/0.5 mm solid / 24 AWG	TX	1/0.5 mm solid / 24 AWG	Positive copper / negative constantan	8.0 mm
PFA insulated thermocouple extension cable TX 1 pair 7/0.2 mm stranded / 24 AWG	TX	7/0.2 mm stranded / 24 AWG	Positive copper / negative constantan	8.2 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
