Spreader PUR Reeling Cable

Spreader PUR Reeling Cable is a reeling cable construction for container spreaders, spreader reels, port cranes, using flexible copper conductor, special polymer power and control insulation, optional data pair screen, aramid or textile reinforced support and halogen-free pur spreader sheath.

Standard: DIN VDE 0250
Voltage class: 0.6/1 kV power / control circuits
Conductor: Flexible copper conductor
Insulation / jacket: Halogen-free PUR spreader sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Container spreaders
Spreader reels
Port cranes
Basket systems

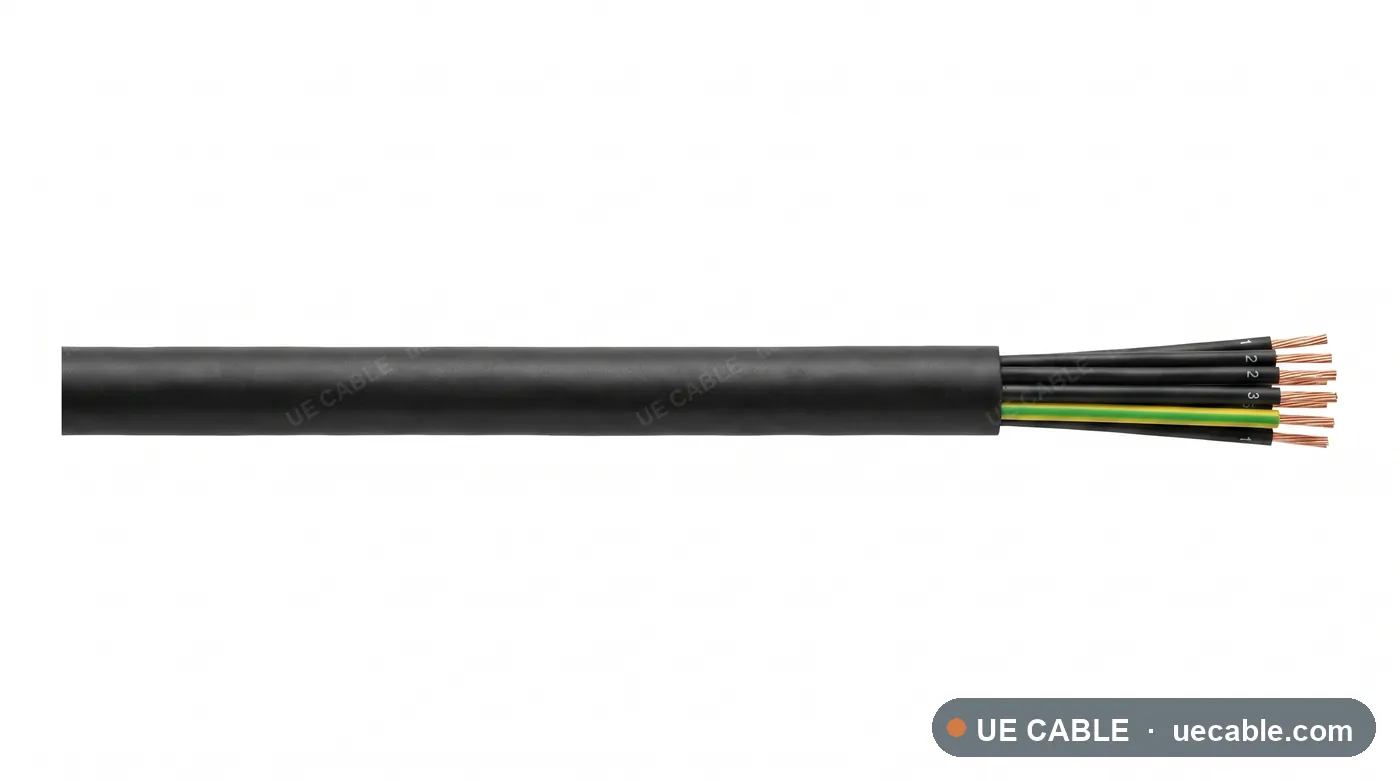

Cable Construction

Flexible copper conductor
Special polymer power and control insulation
Optional data pair screen
Aramid or textile reinforced support
Halogen-free PUR spreader sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Spreader reeling cable references

Each row is an exact reeling cable cable specification sheet. Shared reel duty, voltage, materials and mechanical data are listed above.

Reel dutySpreader reeling under high vertical movement
Reel systemSpreader reel cable
Tensile supportAramid or textile reinforced support

Cable reference	Core / element design	Conductor size	Max DC resistance at 20 °C	OD guide
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + control cores 4 mm²	4 power cores + control cores	4 mm²	4.7 Ω/km	25.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + control cores 6 mm²	4 power cores + control cores	6 mm²	3.1 Ω/km	26.5 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + control cores 10 mm²	4 power cores + control cores	10 mm²	1.83 Ω/km	27.9 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + control cores 16 mm²	4 power cores + control cores	16 mm²	1.15 Ω/km	29.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + control cores 25 mm²	4 power cores + control cores	25 mm²	0.727 Ω/km	31.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + data pair 4 mm²	4 power cores + data pair	4 mm²	4.7 Ω/km	25.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + data pair 6 mm²	4 power cores + data pair	6 mm²	3.1 Ω/km	26.5 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + data pair 10 mm²	4 power cores + data pair	10 mm²	1.83 Ω/km	27.9 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + data pair 16 mm²	4 power cores + data pair	16 mm²	1.15 Ω/km	29.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 4 power cores + data pair 25 mm²	4 power cores + data pair	25 mm²	0.727 Ω/km	31.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 3 power cores + PE + control cores 4 mm²	3 power cores + PE + control cores	4 mm²	4.7 Ω/km	25.0 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 3 power cores + PE + control cores 6 mm²	3 power cores + PE + control cores	6 mm²	3.1 Ω/km	25.9 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 3 power cores + PE + control cores 10 mm²	3 power cores + PE + control cores	10 mm²	1.83 Ω/km	27.3 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 3 power cores + PE + control cores 16 mm²	3 power cores + PE + control cores	16 mm²	1.15 Ω/km	29.0 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable 3 power cores + PE + control cores 25 mm²	3 power cores + PE + control cores	25 mm²	0.727 Ω/km	31.0 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable Power + control + fiber element 4 mm²	Power + control + fiber element	4 mm²	4.7 Ω/km	25.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable Power + control + fiber element 6 mm²	Power + control + fiber element	6 mm²	3.1 Ω/km	26.5 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable Power + control + fiber element 10 mm²	Power + control + fiber element	10 mm²	1.83 Ω/km	27.9 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable Power + control + fiber element 16 mm²	Power + control + fiber element	16 mm²	1.15 Ω/km	29.6 mm
Spreader PUR reeling cable 0.6/1 kV power / control circuits Spreader reel cable Power + control + fiber element 25 mm²	Power + control + fiber element	25 mm²	0.727 Ω/km	31.6 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
