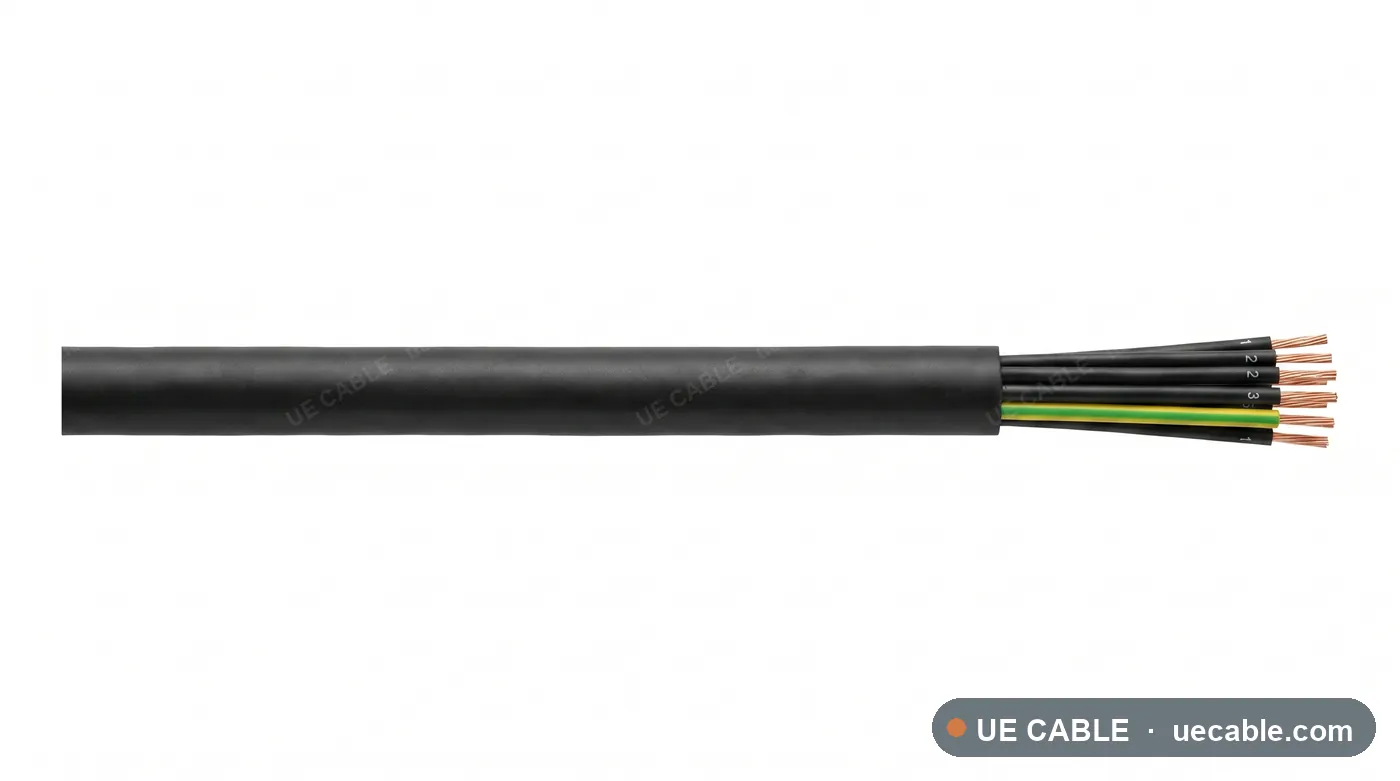

NSHTOU-V Vertical Reeling Cable cable construction reference

Vertical reeling cable

NSHTOU-V Vertical Reeling Cable

NSHTOU-V Vertical Reeling Cable is a reeling cable construction for vertical reels, hoists, container cranes, using flexible copper conductor, epr rubber insulation, reinforced anti-torsion textile support and polychloroprene rubber vertical-reeling sheath.

Standard
DIN VDE 0250-814
Voltage class
0.6/1 kV
Conductor
Flexible copper conductor
Insulation / jacket
Polychloroprene rubber vertical-reeling sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

NSHTOU-V Vertical Reeling Cable is a reeling cable construction for vertical reels, hoists, container cranes, using flexible copper conductor, epr rubber insulation, reinforced anti-torsion textile support and polychloroprene rubber vertical-reeling sheath.

  • Vertical reels
  • Hoists
  • Container cranes
  • Material handling

Cable Construction

  • Flexible copper conductor
  • EPR rubber insulation
  • Reinforced anti-torsion textile support
  • Polychloroprene rubber vertical-reeling sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 36 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Vertical reeling cable references

Each row is an exact reeling cable cable specification sheet. Shared reel duty, voltage, materials and mechanical data are listed above.

  • Reel dutyVertical reeling with suspended cable length
  • Reel systemVertical reel cable
  • Tensile supportReinforced anti-torsion textile support
Cable referenceCore / element designConductor sizeMax DC resistance at 20 °COD guide
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 2.5 mm²4G2.5 mm²7.6 Ω/km23.6 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 4 mm²4G4 mm²4.7 Ω/km24.4 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 6 mm²4G6 mm²3.1 Ω/km25.3 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 10 mm²4G10 mm²1.83 Ω/km26.7 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 16 mm²4G16 mm²1.15 Ω/km28.4 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 25 mm²4G25 mm²0.727 Ω/km30.4 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 35 mm²4G35 mm²0.524 Ω/km32.2 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 50 mm²4G50 mm²0.387 Ω/km34.5 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 4G 70 mm²4G70 mm²0.268 Ω/km37.1 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 2.5 mm²5G2.5 mm²7.6 Ω/km24.1 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 4 mm²5G4 mm²4.7 Ω/km24.9 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 6 mm²5G6 mm²3.1 Ω/km25.8 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 10 mm²5G10 mm²1.83 Ω/km27.2 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 16 mm²5G16 mm²1.15 Ω/km28.9 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 25 mm²5G25 mm²0.727 Ω/km30.9 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 35 mm²5G35 mm²0.524 Ω/km32.8 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 50 mm²5G50 mm²0.387 Ω/km35.1 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 5G 70 mm²5G70 mm²0.268 Ω/km37.7 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 2.5 mm²7G2.5 mm²7.6 Ω/km25.0 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 4 mm²7G4 mm²4.7 Ω/km25.8 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 6 mm²7G6 mm²3.1 Ω/km26.7 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 10 mm²7G10 mm²1.83 Ω/km28.1 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 16 mm²7G16 mm²1.15 Ω/km29.8 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 25 mm²7G25 mm²0.727 Ω/km31.8 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 35 mm²7G35 mm²0.524 Ω/km33.7 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 50 mm²7G50 mm²0.387 Ω/km36.0 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 7G 70 mm²7G70 mm²0.268 Ω/km38.6 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 2.5 mm²12G2.5 mm²7.6 Ω/km26.8 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 4 mm²12G4 mm²4.7 Ω/km27.6 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 6 mm²12G6 mm²3.1 Ω/km28.5 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 10 mm²12G10 mm²1.83 Ω/km29.9 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 16 mm²12G16 mm²1.15 Ω/km31.6 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 25 mm²12G25 mm²0.727 Ω/km33.6 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 35 mm²12G35 mm²0.524 Ω/km35.5 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 50 mm²12G50 mm²0.387 Ω/km37.8 mm
NSHTOU-V 0.6/1 kV Vertical reel cable 12G 70 mm²12G70 mm²0.268 Ω/km40.4 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
