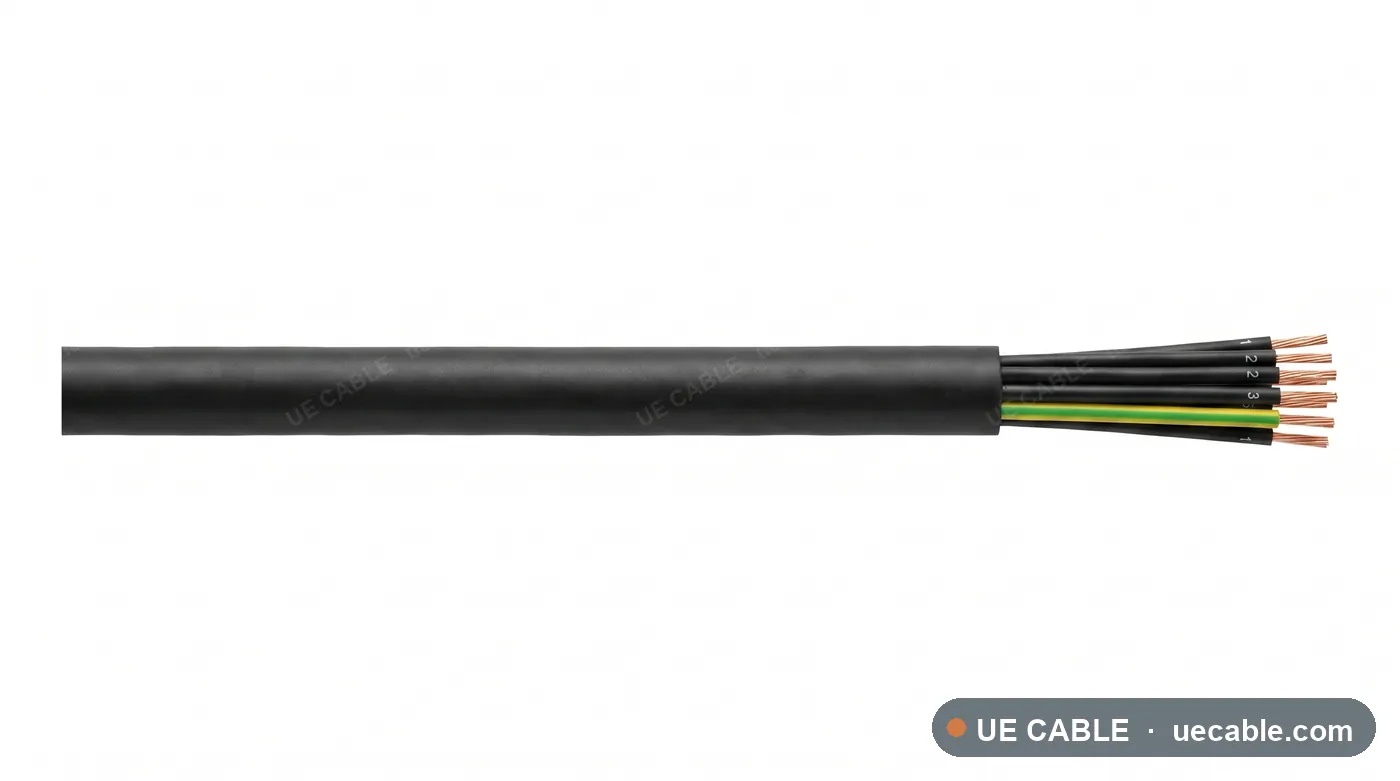

Offshore PUR Reeling Cable cable construction reference

Offshore reeling cable

Offshore PUR Reeling Cable

Offshore PUR Reeling Cable is a reeling cable construction for offshore platforms, shipboard reels, marine handling equipment, using flexible copper conductor, special polymer power-core insulation, aramid yarn reinforced support and offshore pur mud and oil resistant sheath.

Standard
DIN VDE 0250
Voltage class
0.6/1 kV
Conductor
Flexible copper conductor
Insulation / jacket
Offshore PUR mud and oil resistant sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Offshore PUR Reeling Cable is a reeling cable construction for offshore platforms, shipboard reels, marine handling equipment, using flexible copper conductor, special polymer power-core insulation, aramid yarn reinforced support and offshore pur mud and oil resistant sheath.

  • Offshore platforms
  • Shipboard reels
  • Marine handling equipment
  • Deck machinery

Cable Construction

  • Flexible copper conductor
  • Special polymer power-core insulation
  • Aramid yarn reinforced support
  • Offshore PUR mud and oil resistant sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 21 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Offshore reeling cable references

Each row is an exact reeling cable cable specification sheet. Shared reel duty, voltage, materials and mechanical data are listed above.

  • Reel dutyOffshore spring and motor reel duty
  • Reel systemOffshore cable reel
  • Tensile supportAramid yarn reinforced support
Cable referenceCore / element designConductor sizeMax DC resistance at 20 °COD guide
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 4G 2.5 mm²4G2.5 mm²7.6 Ω/km20.6 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 4G 4 mm²4G4 mm²4.7 Ω/km21.4 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 4G 6 mm²4G6 mm²3.1 Ω/km22.3 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 4G 10 mm²4G10 mm²1.83 Ω/km23.7 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 4G 16 mm²4G16 mm²1.15 Ω/km25.4 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 4G 25 mm²4G25 mm²0.727 Ω/km27.4 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 4G 35 mm²4G35 mm²0.524 Ω/km29.2 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 5G 2.5 mm²5G2.5 mm²7.6 Ω/km21.1 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 5G 4 mm²5G4 mm²4.7 Ω/km21.9 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 5G 6 mm²5G6 mm²3.1 Ω/km22.8 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 5G 10 mm²5G10 mm²1.83 Ω/km24.2 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 5G 16 mm²5G16 mm²1.15 Ω/km25.9 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 5G 25 mm²5G25 mm²0.727 Ω/km27.9 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 5G 35 mm²5G35 mm²0.524 Ω/km29.8 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 7G 2.5 mm²7G2.5 mm²7.6 Ω/km22.0 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 7G 4 mm²7G4 mm²4.7 Ω/km22.8 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 7G 6 mm²7G6 mm²3.1 Ω/km23.7 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 7G 10 mm²7G10 mm²1.83 Ω/km25.1 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 7G 16 mm²7G16 mm²1.15 Ω/km26.8 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 7G 25 mm²7G25 mm²0.727 Ω/km28.8 mm
Offshore PUR reeling cable 0.6/1 kV Offshore cable reel 7G 35 mm²7G35 mm²0.524 Ω/km30.7 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
