Medium Voltage Reeling Cable cable construction reference

Medium-voltage dynamic reeling cable

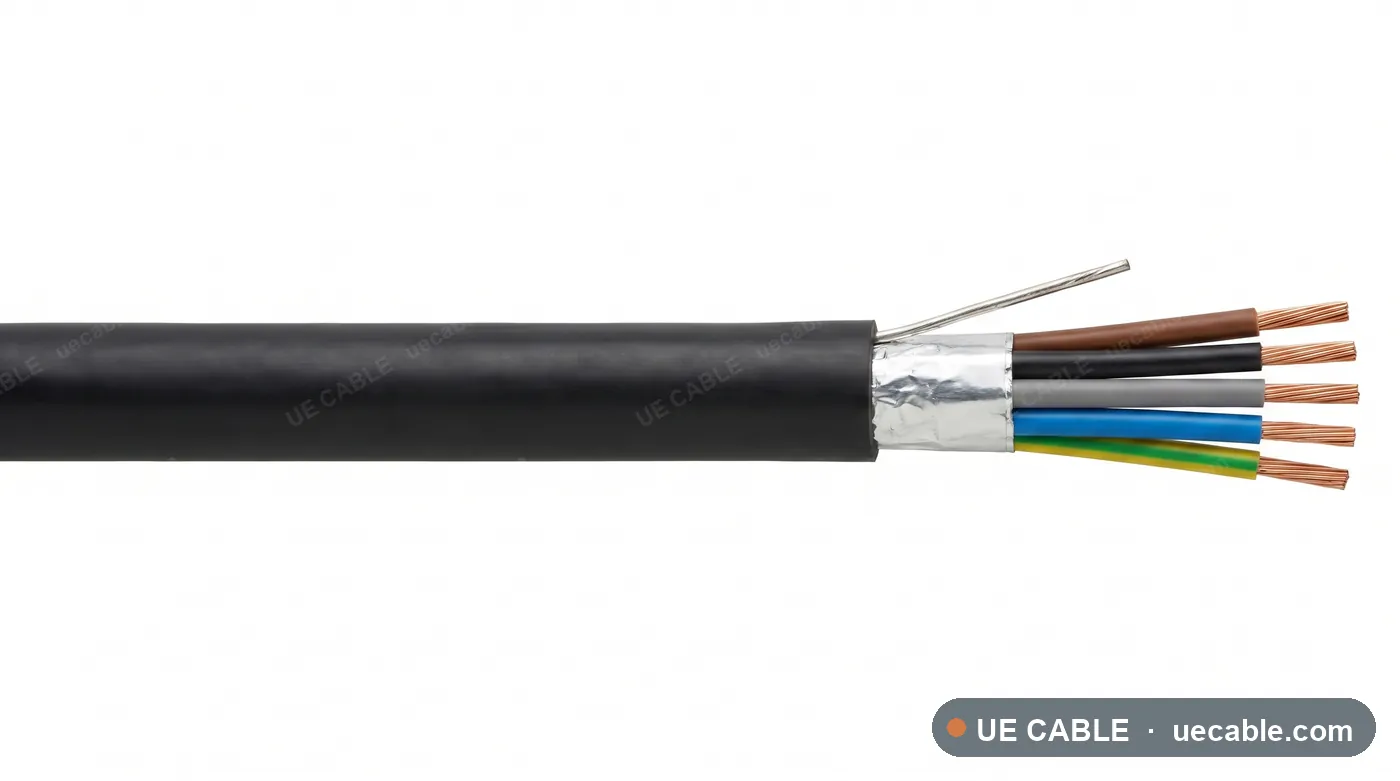

Medium Voltage Reeling Cable

Medium Voltage Reeling Cable is a reeling cable construction for medium-voltage cable reels, container cranes, stacker reclaimers, using flexible copper conductor, epr or xlpe medium-voltage insulation, semiconductive screen and metallic earth screen, reinforced anti-torsion support system and heavy-duty rubber or pur reeling sheath.

Standard
DIN VDE 0250
Voltage class
3.6/6 kV to 8.7/15 kV
Conductor
Flexible copper conductor
Insulation / jacket
Heavy-duty rubber or PUR reeling sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Medium Voltage Reeling Cable is a reeling cable construction for medium-voltage cable reels, container cranes, stacker reclaimers, using flexible copper conductor, epr or xlpe medium-voltage insulation, semiconductive screen and metallic earth screen, reinforced anti-torsion support system and heavy-duty rubber or pur reeling sheath.

  • Medium-voltage cable reels
  • Container cranes
  • Stacker reclaimers
  • Ship loaders

Cable Construction

  • Flexible copper conductor
  • EPR or XLPE medium-voltage insulation
  • Semiconductive screen and metallic earth screen
  • Reinforced anti-torsion support system
  • Heavy-duty rubber or PUR reeling sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 36 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Medium-voltage reeling cable references

Each row is an exact reeling cable cable specification sheet. Shared reel duty, voltage, materials and mechanical data are listed above.

  • Reel dutyMedium-voltage reeling with dynamic tensile loads
  • Reel systemMedium-voltage cable reel
  • Tensile supportReinforced anti-torsion support system
Cable referenceCore / element designConductor sizeMax DC resistance at 20 °COD guide
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core 25 mm²3 core25 mm²0.727 Ω/km42.0 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core 35 mm²3 core35 mm²0.524 Ω/km43.8 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core 50 mm²3 core50 mm²0.387 Ω/km46.2 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core 70 mm²3 core70 mm²0.268 Ω/km48.7 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core 95 mm²3 core95 mm²0.193 Ω/km51.5 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core 120 mm²3 core120 mm²0.153 Ω/km53.9 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core + fiber element 25 mm²3 core + fiber element25 mm²0.727 Ω/km42.0 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core + fiber element 35 mm²3 core + fiber element35 mm²0.524 Ω/km43.8 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core + fiber element 50 mm²3 core + fiber element50 mm²0.387 Ω/km46.2 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core + fiber element 70 mm²3 core + fiber element70 mm²0.268 Ω/km48.7 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core + fiber element 95 mm²3 core + fiber element95 mm²0.193 Ω/km51.5 mm
Medium voltage reeling cable 3.6/6 kV Medium-voltage cable reel 3 core + fiber element 120 mm²3 core + fiber element120 mm²0.153 Ω/km53.9 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core 25 mm²3 core25 mm²0.727 Ω/km42.0 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core 35 mm²3 core35 mm²0.524 Ω/km43.8 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core 50 mm²3 core50 mm²0.387 Ω/km46.2 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core 70 mm²3 core70 mm²0.268 Ω/km48.7 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core 95 mm²3 core95 mm²0.193 Ω/km51.5 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core 120 mm²3 core120 mm²0.153 Ω/km53.9 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core + fiber element 25 mm²3 core + fiber element25 mm²0.727 Ω/km42.0 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core + fiber element 35 mm²3 core + fiber element35 mm²0.524 Ω/km43.8 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core + fiber element 50 mm²3 core + fiber element50 mm²0.387 Ω/km46.2 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core + fiber element 70 mm²3 core + fiber element70 mm²0.268 Ω/km48.7 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core + fiber element 95 mm²3 core + fiber element95 mm²0.193 Ω/km51.5 mm
Medium voltage reeling cable 6/10 kV Medium-voltage cable reel 3 core + fiber element 120 mm²3 core + fiber element120 mm²0.153 Ω/km53.9 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core 25 mm²3 core25 mm²0.727 Ω/km42.0 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core 35 mm²3 core35 mm²0.524 Ω/km43.8 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core 50 mm²3 core50 mm²0.387 Ω/km46.2 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core 70 mm²3 core70 mm²0.268 Ω/km48.7 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core 95 mm²3 core95 mm²0.193 Ω/km51.5 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core 120 mm²3 core120 mm²0.153 Ω/km53.9 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core + fiber element 25 mm²3 core + fiber element25 mm²0.727 Ω/km42.0 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core + fiber element 35 mm²3 core + fiber element35 mm²0.524 Ω/km43.8 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core + fiber element 50 mm²3 core + fiber element50 mm²0.387 Ω/km46.2 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core + fiber element 70 mm²3 core + fiber element70 mm²0.268 Ω/km48.7 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core + fiber element 95 mm²3 core + fiber element95 mm²0.193 Ω/km51.5 mm
Medium voltage reeling cable 8.7/15 kV Medium-voltage cable reel 3 core + fiber element 120 mm²3 core + fiber element120 mm²0.153 Ω/km53.9 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
