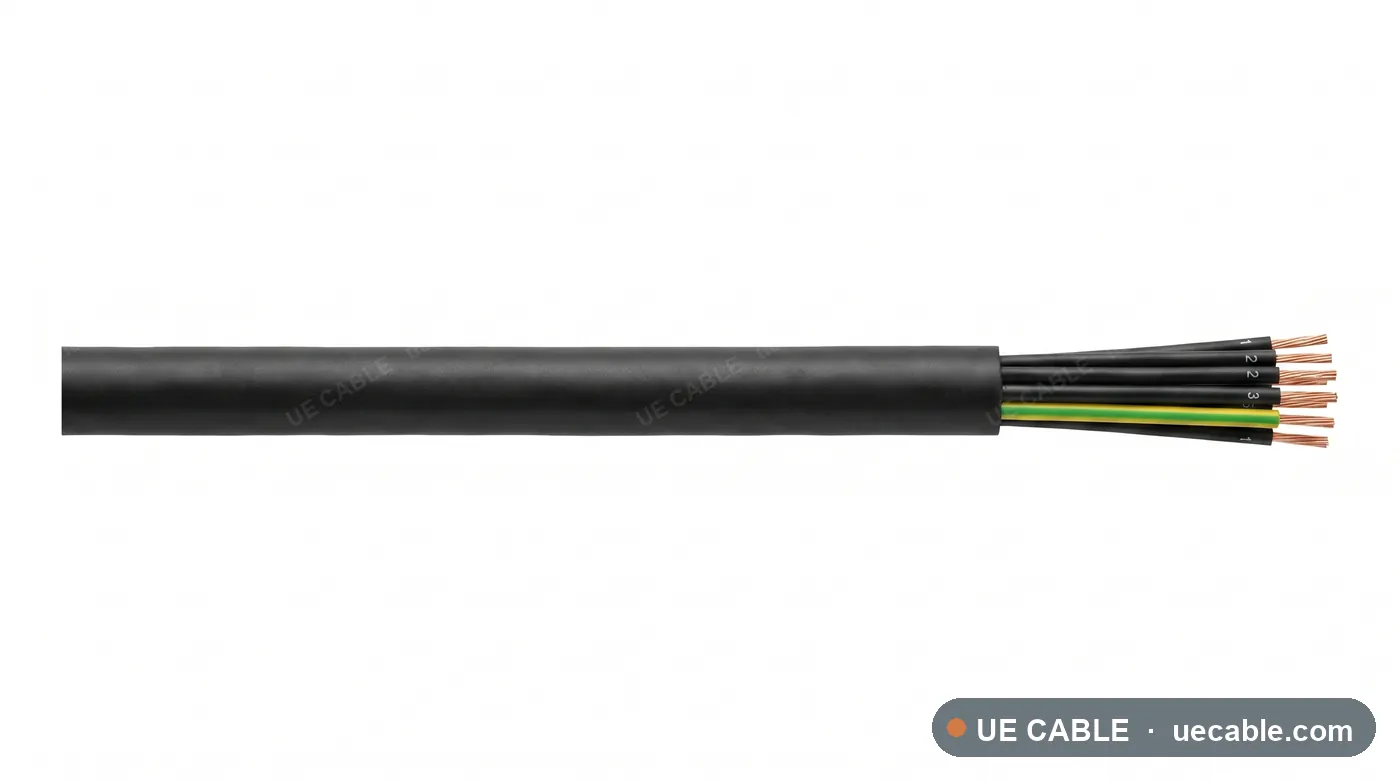

PUR Motor Reel Power Cable cable construction reference

Motor-driven reel power cable

PUR Motor Reel Power Cable

PUR Motor Reel Power Cable is a reeling cable construction for motor cable reels, hoisting devices, transport systems, using flexible copper conductor, special polymer power-core insulation, aramid yarn reinforced support and pur abrasion and oil resistant outer sheath.

Standard
DIN VDE 0250
Voltage class
0.6/1 kV
Conductor
Flexible copper conductor
Insulation / jacket
PUR abrasion and oil resistant outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

PUR Motor Reel Power Cable is a reeling cable construction for motor cable reels, hoisting devices, transport systems, using flexible copper conductor, special polymer power-core insulation, aramid yarn reinforced support and pur abrasion and oil resistant outer sheath.

  • Motor cable reels
  • Hoisting devices
  • Transport systems
  • Mobile machinery

Cable Construction

  • Flexible copper conductor
  • Special polymer power-core insulation
  • Aramid yarn reinforced support
  • PUR abrasion and oil resistant outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Motor reel power cable references

Each row is an exact reeling cable cable specification sheet. Shared reel duty, voltage, materials and mechanical data are listed above.

  • Reel dutyMotor-driven reel with high mechanical stress
  • Reel systemMotor cable reel
  • Tensile supportAramid yarn reinforced support
Cable referenceCore / element designConductor sizeMax DC resistance at 20 °COD guide
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 2.5 mm²4G2.5 mm²7.6 Ω/km20.6 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 4 mm²4G4 mm²4.7 Ω/km21.4 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 6 mm²4G6 mm²3.1 Ω/km22.3 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 10 mm²4G10 mm²1.83 Ω/km23.7 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 16 mm²4G16 mm²1.15 Ω/km25.4 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 25 mm²4G25 mm²0.727 Ω/km27.4 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 35 mm²4G35 mm²0.524 Ω/km29.2 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 4G 50 mm²4G50 mm²0.387 Ω/km31.5 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 2.5 mm²5G2.5 mm²7.6 Ω/km21.1 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 4 mm²5G4 mm²4.7 Ω/km21.9 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 6 mm²5G6 mm²3.1 Ω/km22.8 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 10 mm²5G10 mm²1.83 Ω/km24.2 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 16 mm²5G16 mm²1.15 Ω/km25.9 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 25 mm²5G25 mm²0.727 Ω/km27.9 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 35 mm²5G35 mm²0.524 Ω/km29.8 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 5G 50 mm²5G50 mm²0.387 Ω/km32.1 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 2.5 mm²7G2.5 mm²7.6 Ω/km22.0 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 4 mm²7G4 mm²4.7 Ω/km22.8 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 6 mm²7G6 mm²3.1 Ω/km23.7 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 10 mm²7G10 mm²1.83 Ω/km25.1 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 16 mm²7G16 mm²1.15 Ω/km26.8 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 25 mm²7G25 mm²0.727 Ω/km28.8 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 35 mm²7G35 mm²0.524 Ω/km30.7 mm
PUR motor reel power cable 0.6/1 kV Motor cable reel 7G 50 mm²7G50 mm²0.387 Ω/km33.0 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
