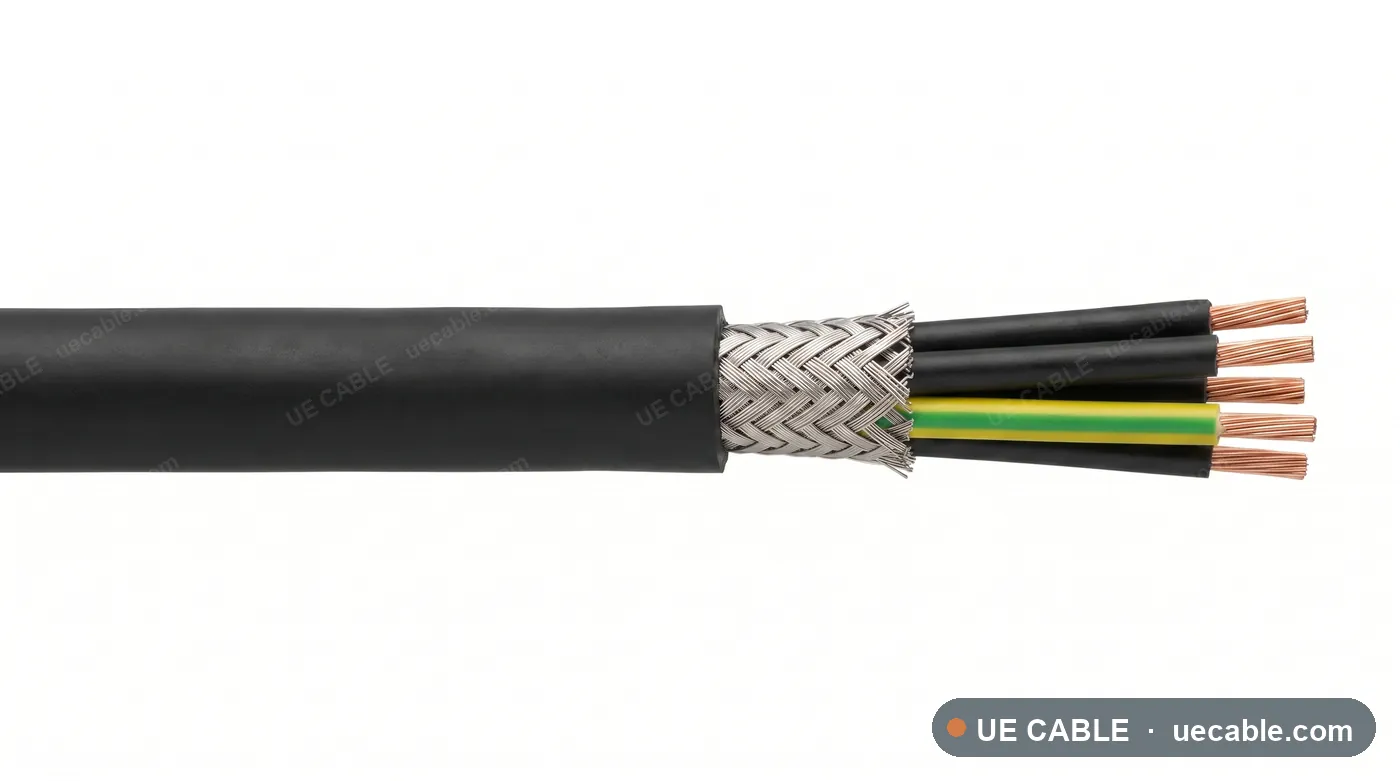

Shielded PUR Reeling Control Cable cable construction reference

Shielded PUR reeling cable

Shielded PUR Reeling Control Cable

Shielded PUR Reeling Control Cable is a reeling cable construction for screened cable reels, crane arms, control circuits, using flexible copper conductor, special polymer core insulation, overall copper braid screen, central high-tech yarn support and pur highflex outer sheath.

Standard
DIN VDE 0250
Voltage class
300/500 V
Conductor
Flexible copper conductor
Insulation / jacket
PUR highflex outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Shielded PUR Reeling Control Cable is a reeling cable construction for screened cable reels, crane arms, control circuits, using flexible copper conductor, special polymer core insulation, overall copper braid screen, central high-tech yarn support and pur highflex outer sheath.

  • Screened cable reels
  • Crane arms
  • Control circuits
  • Stage equipment

Cable Construction

  • Flexible copper conductor
  • Special polymer core insulation
  • Overall copper braid screen
  • Central high-tech yarn support
  • PUR highflex outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 16 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Shielded spring reel cable references

Each row is an exact reeling cable cable specification sheet. Shared reel duty, voltage, materials and mechanical data are listed above.

  • Reel dutySpring reel control with EMC requirement
  • Reel systemScreened spring cable reel
  • Tensile supportCentral high-tech yarn support
Cable referenceCore / element designConductor sizeMax DC resistance at 20 °COD guide
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 4G 0.75 mm²4G0.75 mm²24.7 Ω/km16.3 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 4G 1.0 mm²4G1.0 mm²18.5 Ω/km16.6 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 4G 1.5 mm²4G1.5 mm²12.7 Ω/km17.0 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 4G 2.5 mm²4G2.5 mm²7.6 Ω/km17.8 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 7G 0.75 mm²7G0.75 mm²24.7 Ω/km17.8 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 7G 1.0 mm²7G1.0 mm²18.5 Ω/km18.0 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 7G 1.5 mm²7G1.5 mm²12.7 Ω/km18.5 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 7G 2.5 mm²7G2.5 mm²7.6 Ω/km19.2 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 12G 0.75 mm²12G0.75 mm²24.7 Ω/km19.6 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 12G 1.0 mm²12G1.0 mm²18.5 Ω/km19.8 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 12G 1.5 mm²12G1.5 mm²12.7 Ω/km20.3 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 12G 2.5 mm²12G2.5 mm²7.6 Ω/km21.0 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 18G 0.75 mm²18G0.75 mm²24.7 Ω/km21.3 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 18G 1.0 mm²18G1.0 mm²18.5 Ω/km21.5 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 18G 1.5 mm²18G1.5 mm²12.7 Ω/km22.0 mm
Shielded PUR reeling control cable 300/500 V Screened spring cable reel 18G 2.5 mm²18G2.5 mm²7.6 Ω/km22.7 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
