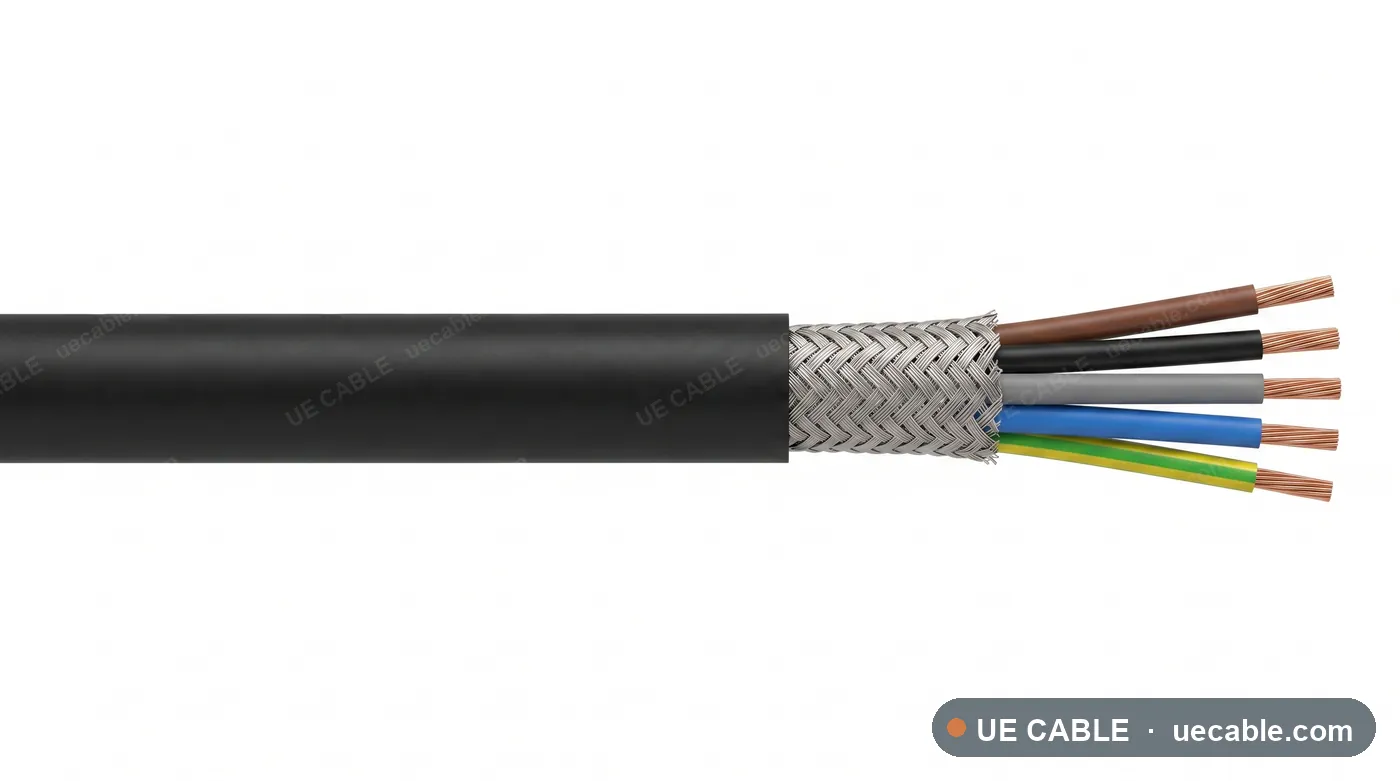

Offshore VFD EMC Drive Oil And Gas Cable

Offshore VFD EMC Drive Oil And Gas Cable is an oil, gas and petrochemical cable construction for Offshore VFD motors, Pump drives, Compressor drives, with NEK 606 / IEC 60502, emc screened vfd drive cable, low impedance copper tape and braid emc screen, flame retardant, low smoke and halogen free and oil and mud resistant shf2 sheath.

Standard
NEK 606 / IEC 60502
Voltage class
0.6/1 kV, 1.8/3 kV
Conductor
4 mm², 6 mm², 10 mm², 16 mm², 25 mm², 35 mm²
Insulation / jacket
Oil and mud resistant SHF2 sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Offshore VFD EMC Drive Oil And Gas Cable is an oil, gas and petrochemical cable construction for Offshore VFD motors, Pump drives, Compressor drives, with NEK 606 / IEC 60502, emc screened vfd drive cable, low impedance copper tape and braid emc screen, flame retardant, low smoke and halogen free and oil and mud resistant shf2 sheath.

  • Offshore VFD motors
  • Pump drives
  • Compressor drives
  • Motor control centres

Cable Construction

  • EMC screened VFD drive cable
  • Plain or tinned copper conductor, or optical fibre element where applicable
  • Circuit insulation and identification for oil, gas and petrochemical cable schedules
  • Low impedance copper tape and braid EMC screen
  • Flame retardant, low smoke and halogen free
  • Oil and mud resistant SHF2 sheath for offshore drives, pumps, compressors and motor-control routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Offshore VFD EMC Drive specification references

Each row is an exact cable specification sheet. Confirm hazardous-area route, cable schedule, fire survival level, oil/mud exposure, gland/accessory package, marking and drum length before quotation.

  • Service packageVariable frequency drive motor package
  • StandardNEK 606 / IEC 60502
  • Cable designEMC screened VFD drive cable
  • Screen / protectionLow impedance copper tape and braid EMC screen
  • Fire and safety ratingFlame retardant, low smoke and halogen free
  • Oil, mud and environmentOffshore drives, pumps, compressors and motor-control routes
  • SheathOil and mud resistant SHF2 sheath
Cable referenceVoltage / signal classPair / core designConductor / fibreElectrical / optical referenceOD guide
Offshore VFD EMC Drive 0.6/1 kV 3 core + 3 symmetrical grounds 4 mm² Oil and mud resistant SHF2 sheath0.6/1 kV3 core + 3 symmetrical grounds4 mm²4.61 Ω/km max23.1 mm
Offshore VFD EMC Drive 0.6/1 kV 3 core + 3 symmetrical grounds 6 mm² Oil and mud resistant SHF2 sheath0.6/1 kV3 core + 3 symmetrical grounds6 mm²3.08 Ω/km max23.9 mm
Offshore VFD EMC Drive 0.6/1 kV 3 core + 3 symmetrical grounds 10 mm² Oil and mud resistant SHF2 sheath0.6/1 kV3 core + 3 symmetrical grounds10 mm²1.83 Ω/km max25.0 mm
Offshore VFD EMC Drive 0.6/1 kV 3 core + 3 symmetrical grounds 16 mm² Oil and mud resistant SHF2 sheath0.6/1 kV3 core + 3 symmetrical grounds16 mm²1.15 Ω/km max26.3 mm
Offshore VFD EMC Drive 0.6/1 kV 3 core + 3 symmetrical grounds 25 mm² Oil and mud resistant SHF2 sheath0.6/1 kV3 core + 3 symmetrical grounds25 mm²0.727 Ω/km max27.9 mm
Offshore VFD EMC Drive 0.6/1 kV 3 core + 3 symmetrical grounds 35 mm² Oil and mud resistant SHF2 sheath0.6/1 kV3 core + 3 symmetrical grounds35 mm²0.524 Ω/km max29.4 mm
Offshore VFD EMC Drive 0.6/1 kV 4 core VFD 4 mm² Oil and mud resistant SHF2 sheath0.6/1 kV4 core VFD4 mm²4.61 Ω/km max32.5 mm
Offshore VFD EMC Drive 0.6/1 kV 4 core VFD 6 mm² Oil and mud resistant SHF2 sheath0.6/1 kV4 core VFD6 mm²3.08 Ω/km max33.2 mm
Offshore VFD EMC Drive 0.6/1 kV 4 core VFD 10 mm² Oil and mud resistant SHF2 sheath0.6/1 kV4 core VFD10 mm²1.83 Ω/km max34.4 mm
Offshore VFD EMC Drive 0.6/1 kV 4 core VFD 16 mm² Oil and mud resistant SHF2 sheath0.6/1 kV4 core VFD16 mm²1.15 Ω/km max35.7 mm
Offshore VFD EMC Drive 0.6/1 kV 4 core VFD 25 mm² Oil and mud resistant SHF2 sheath0.6/1 kV4 core VFD25 mm²0.727 Ω/km max37.3 mm
Offshore VFD EMC Drive 0.6/1 kV 4 core VFD 35 mm² Oil and mud resistant SHF2 sheath0.6/1 kV4 core VFD35 mm²0.524 Ω/km max38.8 mm
Offshore VFD EMC Drive 1.8/3 kV 3 core + 3 symmetrical grounds 4 mm² Oil and mud resistant SHF2 sheath1.8/3 kV3 core + 3 symmetrical grounds4 mm²4.61 Ω/km max23.1 mm
Offshore VFD EMC Drive 1.8/3 kV 3 core + 3 symmetrical grounds 6 mm² Oil and mud resistant SHF2 sheath1.8/3 kV3 core + 3 symmetrical grounds6 mm²3.08 Ω/km max23.9 mm
Offshore VFD EMC Drive 1.8/3 kV 3 core + 3 symmetrical grounds 10 mm² Oil and mud resistant SHF2 sheath1.8/3 kV3 core + 3 symmetrical grounds10 mm²1.83 Ω/km max25.0 mm
Offshore VFD EMC Drive 1.8/3 kV 3 core + 3 symmetrical grounds 16 mm² Oil and mud resistant SHF2 sheath1.8/3 kV3 core + 3 symmetrical grounds16 mm²1.15 Ω/km max26.3 mm
Offshore VFD EMC Drive 1.8/3 kV 3 core + 3 symmetrical grounds 25 mm² Oil and mud resistant SHF2 sheath1.8/3 kV3 core + 3 symmetrical grounds25 mm²0.727 Ω/km max27.9 mm
Offshore VFD EMC Drive 1.8/3 kV 3 core + 3 symmetrical grounds 35 mm² Oil and mud resistant SHF2 sheath1.8/3 kV3 core + 3 symmetrical grounds35 mm²0.524 Ω/km max29.4 mm
Offshore VFD EMC Drive 1.8/3 kV 4 core VFD 4 mm² Oil and mud resistant SHF2 sheath1.8/3 kV4 core VFD4 mm²4.61 Ω/km max32.5 mm
Offshore VFD EMC Drive 1.8/3 kV 4 core VFD 6 mm² Oil and mud resistant SHF2 sheath1.8/3 kV4 core VFD6 mm²3.08 Ω/km max33.2 mm
Offshore VFD EMC Drive 1.8/3 kV 4 core VFD 10 mm² Oil and mud resistant SHF2 sheath1.8/3 kV4 core VFD10 mm²1.83 Ω/km max34.4 mm
Offshore VFD EMC Drive 1.8/3 kV 4 core VFD 16 mm² Oil and mud resistant SHF2 sheath1.8/3 kV4 core VFD16 mm²1.15 Ω/km max35.7 mm
Offshore VFD EMC Drive 1.8/3 kV 4 core VFD 25 mm² Oil and mud resistant SHF2 sheath1.8/3 kV4 core VFD25 mm²0.727 Ω/km max37.3 mm
Offshore VFD EMC Drive 1.8/3 kV 4 core VFD 35 mm² Oil and mud resistant SHF2 sheath1.8/3 kV4 core VFD35 mm²0.524 Ω/km max38.8 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
