Spreader and basket crane cable

Crane Spreader Basket Cable

Crane Spreader Basket Cable is a crane cable construction for container crane spreaders, port cranes, basket systems, using flexible copper conductor, epr or tpe power and control insulation, optional data pair screen, integrated textile or aramid support element and pur or rubber high-abrasion outer sheath.

Standard: DIN VDE 0250
Voltage class: 0.6/1 kV power / control circuits
Conductor: Flexible copper conductor
Insulation / jacket: PUR or rubber high-abrasion outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Container crane spreaders
Port cranes
Basket systems
Vertical hoist movement

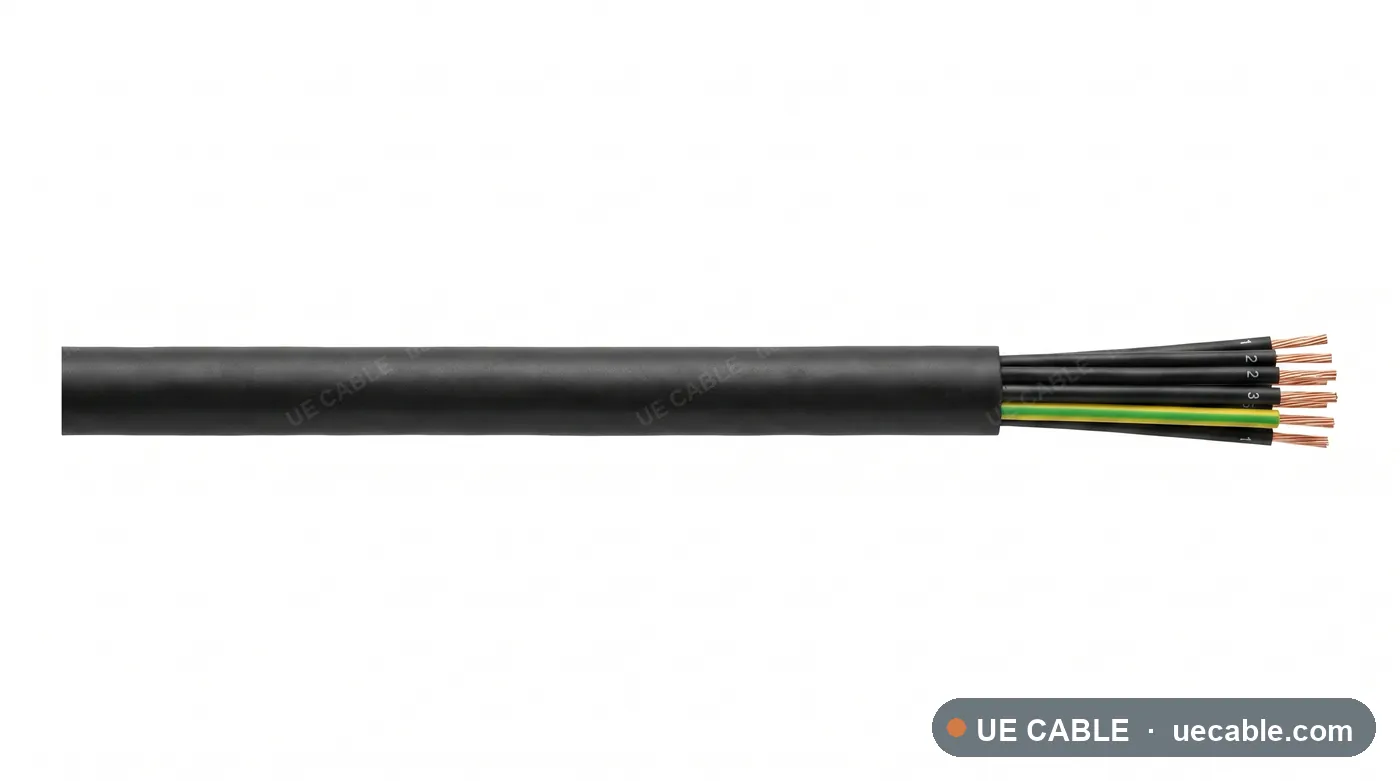

Cable Construction

Flexible copper conductor
EPR or TPE power and control insulation
Optional data pair screen
Integrated textile or aramid support element
PUR or rubber high-abrasion outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Spreader basket cable references

Each row is an exact crane cable cable specification sheet. Shared motion duty, voltage, materials and mechanical requirements are listed above.

Motion dutyVertical spreader basket movement
Cable systemSpreader basket cable

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	Dimension guide	Cable weight
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + control cores 4 mm²	4 power cores + control cores	4 mm²	4.7 Ω/km	24.4 mm	1.01 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + control cores 6 mm²	4 power cores + control cores	6 mm²	3.1 Ω/km	25.3 mm	1.11 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + control cores 10 mm²	4 power cores + control cores	10 mm²	1.83 Ω/km	26.8 mm	1.30 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + control cores 16 mm²	4 power cores + control cores	16 mm²	1.15 Ω/km	28.6 mm	1.59 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + control cores 25 mm²	4 power cores + control cores	25 mm²	0.727 Ω/km	30.7 mm	2.02 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + data pair 4 mm²	4 power cores + data pair	4 mm²	4.7 Ω/km	24.4 mm	1.01 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + data pair 6 mm²	4 power cores + data pair	6 mm²	3.1 Ω/km	25.3 mm	1.11 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + data pair 10 mm²	4 power cores + data pair	10 mm²	1.83 Ω/km	26.8 mm	1.30 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + data pair 16 mm²	4 power cores + data pair	16 mm²	1.15 Ω/km	28.6 mm	1.59 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 4 power cores + data pair 25 mm²	4 power cores + data pair	25 mm²	0.727 Ω/km	30.7 mm	2.02 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 3 power cores + PE + control cores 4 mm²	3 power cores + PE + control cores	4 mm²	4.7 Ω/km	23.8 mm	0.96 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 3 power cores + PE + control cores 6 mm²	3 power cores + PE + control cores	6 mm²	3.1 Ω/km	24.7 mm	1.04 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 3 power cores + PE + control cores 10 mm²	3 power cores + PE + control cores	10 mm²	1.83 Ω/km	26.2 mm	1.18 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 3 power cores + PE + control cores 16 mm²	3 power cores + PE + control cores	16 mm²	1.15 Ω/km	28.0 mm	1.40 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable 3 power cores + PE + control cores 25 mm²	3 power cores + PE + control cores	25 mm²	0.727 Ω/km	30.1 mm	1.72 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable Power + control + fiber element 4 mm²	Power + control + fiber element	4 mm²	4.7 Ω/km	24.4 mm	1.01 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable Power + control + fiber element 6 mm²	Power + control + fiber element	6 mm²	3.1 Ω/km	25.3 mm	1.11 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable Power + control + fiber element 10 mm²	Power + control + fiber element	10 mm²	1.83 Ω/km	26.8 mm	1.30 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable Power + control + fiber element 16 mm²	Power + control + fiber element	16 mm²	1.15 Ω/km	28.6 mm	1.59 kg/m
Crane spreader basket cable 0.6/1 kV power / control circuits Spreader basket cable Power + control + fiber element 25 mm²	Power + control + fiber element	25 mm²	0.727 Ω/km	30.7 mm	2.02 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
