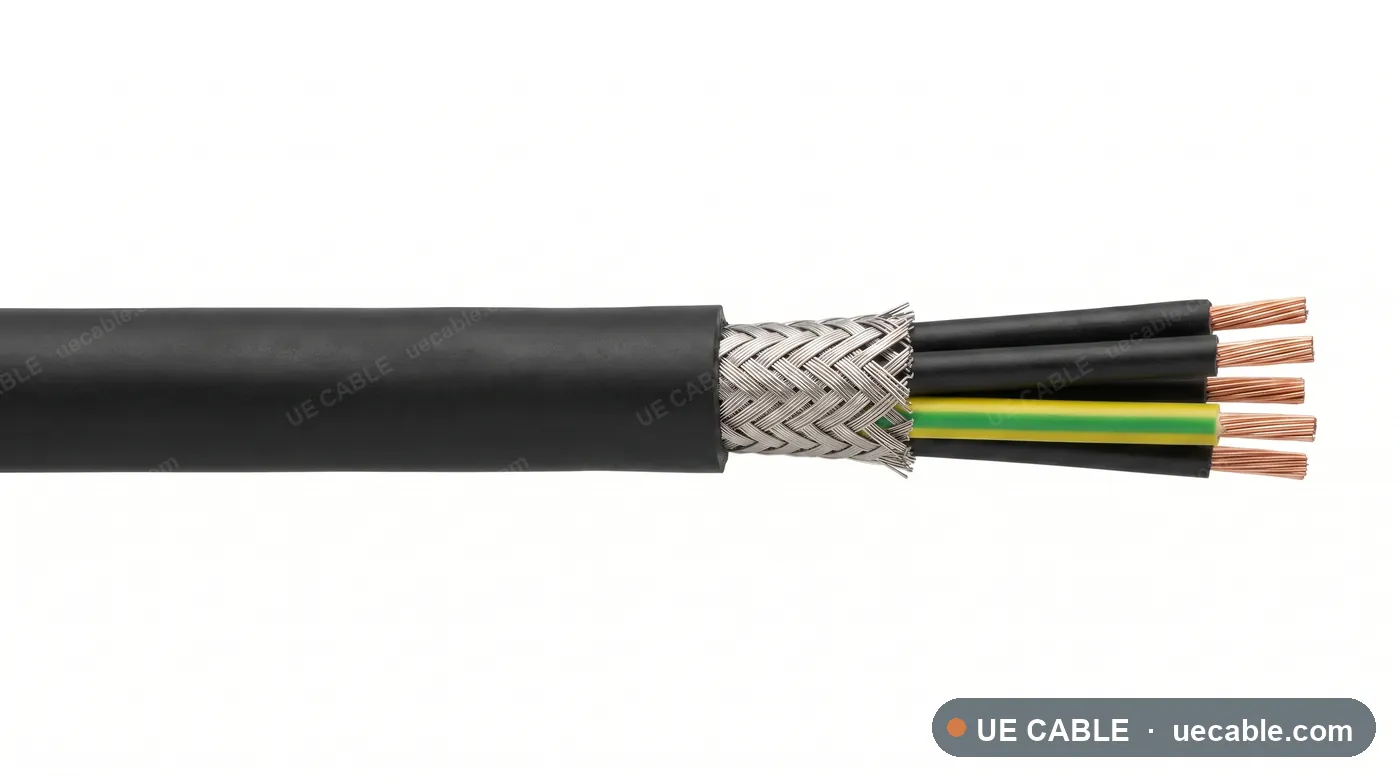

Screened Round Crane Control Cable cable construction reference

Screened round crane control cable

Screened Round Crane Control Cable

Screened Round Crane Control Cable is a crane cable construction for crane controls, drive controls, festoon controls, using flexible copper conductor, rubber or flexible pvc core insulation, overall tinned copper braid screen, optional textile support element and rubber or pur reinforced outer sheath.

Standard: DIN VDE 0250
Voltage class: 300/500 V
Conductor: Flexible copper conductor
Insulation / jacket: Rubber or PUR reinforced outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Screened Round Crane Control Cable is a crane cable construction for crane controls, drive controls, festoon controls, using flexible copper conductor, rubber or flexible pvc core insulation, overall tinned copper braid screen, optional textile support element and rubber or pur reinforced outer sheath.

Crane controls
Drive controls
Festoon controls
Material handling

Cable Construction

Flexible copper conductor
Rubber or flexible PVC core insulation
Overall tinned copper braid screen
Optional textile support element
Rubber or PUR reinforced outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 16 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Screened round crane control cable references

Each row is an exact crane cable cable specification sheet. Shared motion duty, voltage, materials and mechanical requirements are listed above.

Motion dutyCrane control with EMC requirement
Cable systemScreened round control cable

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	Dimension guide	Cable weight
Screened round crane control cable 300/500 V Screened round control cable 4 core 0.75 mm²	4 core	0.75 mm²	24.7 Ω/km	16.0 mm	0.66 kg/m
Screened round crane control cable 300/500 V Screened round control cable 4 core 1.0 mm²	4 core	1.0 mm²	18.5 Ω/km	16.3 mm	0.67 kg/m
Screened round crane control cable 300/500 V Screened round control cable 4 core 1.5 mm²	4 core	1.5 mm²	12.7 Ω/km	16.8 mm	0.69 kg/m
Screened round crane control cable 300/500 V Screened round control cable 4 core 2.5 mm²	4 core	2.5 mm²	7.6 Ω/km	17.5 mm	0.74 kg/m
Screened round crane control cable 300/500 V Screened round control cable 7 core 0.75 mm²	7 core	0.75 mm²	24.7 Ω/km	17.5 mm	0.68 kg/m
Screened round crane control cable 300/500 V Screened round control cable 7 core 1.0 mm²	7 core	1.0 mm²	18.5 Ω/km	17.8 mm	0.70 kg/m
Screened round crane control cable 300/500 V Screened round control cable 7 core 1.5 mm²	7 core	1.5 mm²	12.7 Ω/km	18.3 mm	0.75 kg/m
Screened round crane control cable 300/500 V Screened round control cable 7 core 2.5 mm²	7 core	2.5 mm²	7.6 Ω/km	19.0 mm	0.83 kg/m
Screened round crane control cable 300/500 V Screened round control cable 12 core 0.75 mm²	12 core	0.75 mm²	24.7 Ω/km	19.4 mm	0.73 kg/m
Screened round crane control cable 300/500 V Screened round control cable 12 core 1.0 mm²	12 core	1.0 mm²	18.5 Ω/km	19.7 mm	0.76 kg/m
Screened round crane control cable 300/500 V Screened round control cable 12 core 1.5 mm²	12 core	1.5 mm²	12.7 Ω/km	20.1 mm	0.84 kg/m
Screened round crane control cable 300/500 V Screened round control cable 12 core 2.5 mm²	12 core	2.5 mm²	7.6 Ω/km	20.9 mm	0.98 kg/m
Screened round crane control cable 300/500 V Screened round control cable 18 core 0.75 mm²	18 core	0.75 mm²	24.7 Ω/km	21.2 mm	0.78 kg/m
Screened round crane control cable 300/500 V Screened round control cable 18 core 1.0 mm²	18 core	1.0 mm²	18.5 Ω/km	21.5 mm	0.84 kg/m
Screened round crane control cable 300/500 V Screened round control cable 18 core 1.5 mm²	18 core	1.5 mm²	12.7 Ω/km	21.9 mm	0.94 kg/m
Screened round crane control cable 300/500 V Screened round control cable 18 core 2.5 mm²	18 core	2.5 mm²	7.6 Ω/km	22.7 mm	1.16 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
