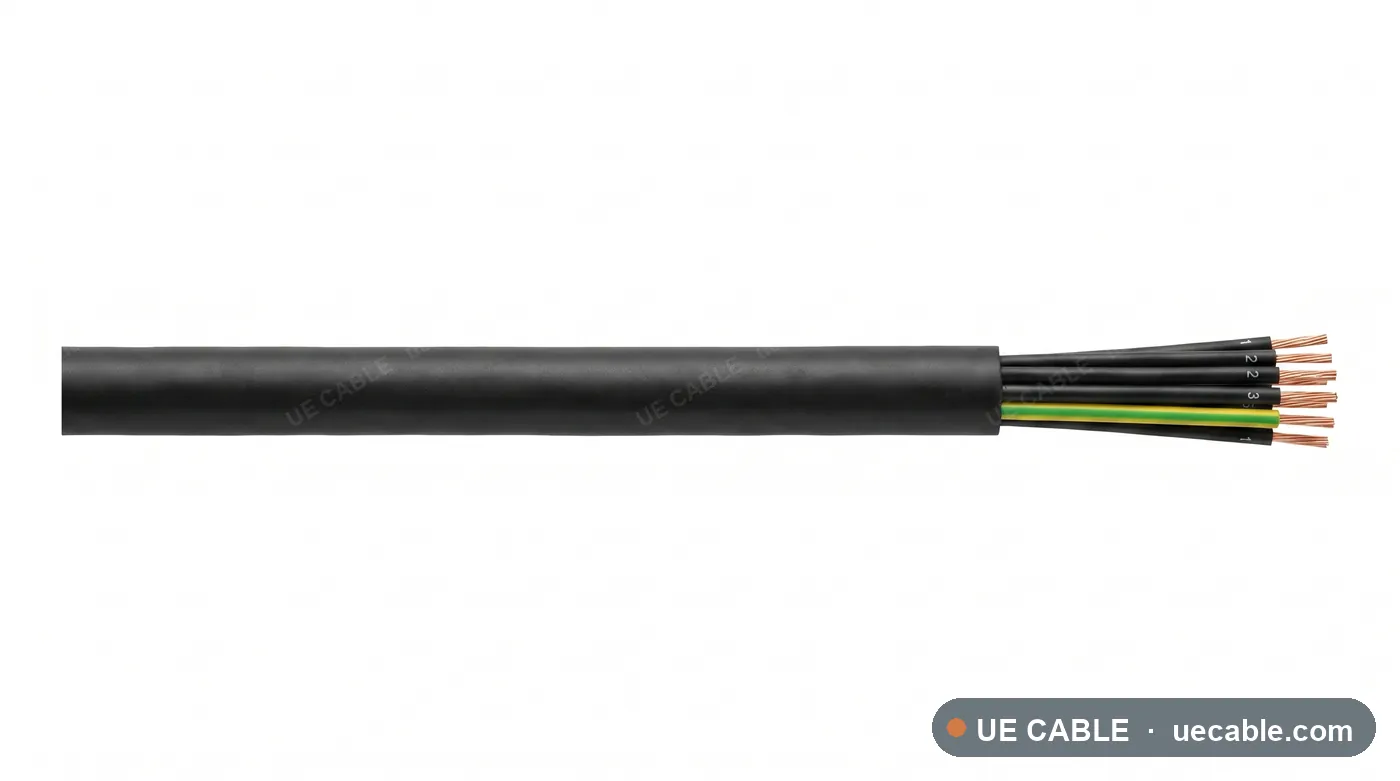

Low Voltage Crane Reeling Cable cable construction reference

Low-voltage reeling crane cable

Low Voltage Crane Reeling Cable

Low Voltage Crane Reeling Cable is a crane cable construction for cable reels, gantry cranes, stacker reclaimers, using flexible copper conductor, epr power-core insulation, optional earth screen or control screen, reinforced textile support and anti-torsion lay and pur or rubber reeling outer sheath.

Standard: DIN VDE 0250
Voltage class: 0.6/1 kV
Conductor: Flexible copper conductor
Insulation / jacket: PUR or rubber reeling outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Low Voltage Crane Reeling Cable is a crane cable construction for cable reels, gantry cranes, stacker reclaimers, using flexible copper conductor, epr power-core insulation, optional earth screen or control screen, reinforced textile support and anti-torsion lay and pur or rubber reeling outer sheath.

Cable reels
Gantry cranes
Stacker reclaimers
Ship loaders

Cable Construction

Flexible copper conductor
EPR power-core insulation
Optional earth screen or control screen
Reinforced textile support and anti-torsion lay
PUR or rubber reeling outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Low-voltage crane reeling cable references

Each row is an exact crane cable cable specification sheet. Shared motion duty, voltage, materials and mechanical requirements are listed above.

Motion dutyFrequent reeling and unreeling
Cable systemCable reel power feed

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	Dimension guide	Cable weight
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 6 mm²	4G power cores	6 mm²	3.1 Ω/km	23.3 mm	1.01 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 10 mm²	4G power cores	10 mm²	1.83 Ω/km	24.8 mm	1.20 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 16 mm²	4G power cores	16 mm²	1.15 Ω/km	26.6 mm	1.49 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 25 mm²	4G power cores	25 mm²	0.727 Ω/km	28.7 mm	1.92 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 35 mm²	4G power cores	35 mm²	0.524 Ω/km	30.6 mm	2.40 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 50 mm²	4G power cores	50 mm²	0.387 Ω/km	33.0 mm	3.12 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 70 mm²	4G power cores	70 mm²	0.268 Ω/km	35.8 mm	4.08 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 4G power cores 95 mm²	4G power cores	95 mm²	0.193 Ω/km	38.7 mm	5.28 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 6 mm²	3 power cores + 3 symmetrical grounds	6 mm²	3.1 Ω/km	22.7 mm	0.94 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 10 mm²	3 power cores + 3 symmetrical grounds	10 mm²	1.83 Ω/km	24.2 mm	1.08 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 16 mm²	3 power cores + 3 symmetrical grounds	16 mm²	1.15 Ω/km	26.0 mm	1.30 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 25 mm²	3 power cores + 3 symmetrical grounds	25 mm²	0.727 Ω/km	28.1 mm	1.62 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 35 mm²	3 power cores + 3 symmetrical grounds	35 mm²	0.524 Ω/km	30.0 mm	1.98 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 50 mm²	3 power cores + 3 symmetrical grounds	50 mm²	0.387 Ω/km	32.4 mm	2.52 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 70 mm²	3 power cores + 3 symmetrical grounds	70 mm²	0.268 Ω/km	35.2 mm	3.24 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + 3 symmetrical grounds 95 mm²	3 power cores + 3 symmetrical grounds	95 mm²	0.193 Ω/km	38.1 mm	4.14 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 6 mm²	3 power cores + earth + pilot	6 mm²	3.1 Ω/km	22.7 mm	0.94 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 10 mm²	3 power cores + earth + pilot	10 mm²	1.83 Ω/km	24.2 mm	1.08 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 16 mm²	3 power cores + earth + pilot	16 mm²	1.15 Ω/km	26.0 mm	1.30 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 25 mm²	3 power cores + earth + pilot	25 mm²	0.727 Ω/km	28.1 mm	1.62 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 35 mm²	3 power cores + earth + pilot	35 mm²	0.524 Ω/km	30.0 mm	1.98 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 50 mm²	3 power cores + earth + pilot	50 mm²	0.387 Ω/km	32.4 mm	2.52 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 70 mm²	3 power cores + earth + pilot	70 mm²	0.268 Ω/km	35.2 mm	3.24 kg/m
Low voltage crane reeling cable 0.6/1 kV Cable reel power feed 3 power cores + earth + pilot 95 mm²	3 power cores + earth + pilot	95 mm²	0.193 Ω/km	38.1 mm	4.14 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
