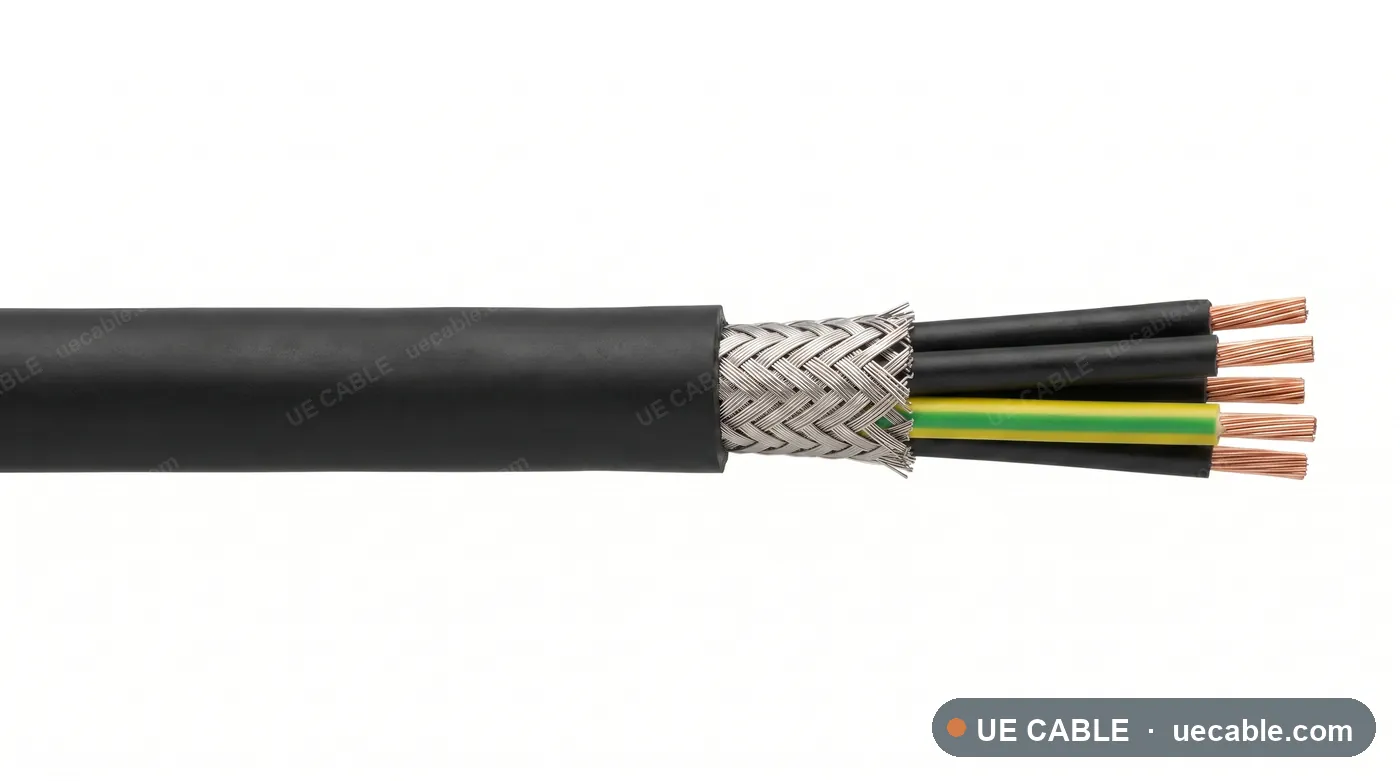

Marine LSZH EMC VFD Cable cable construction reference

Marine drive cable

Marine LSZH EMC VFD Cable

Marine LSZH EMC VFD Cable is a specific variable-frequency drive cable construction for shipboard motor drives, marine pumps, offshore auxiliary drives, using class 5 flexible copper conductor, xlpe or epr insulation, foil and tinned copper braid emc screen and shf1 or shf2 lszh marine sheath.

Standard
IEC 60092-353
Voltage class
0.6/1 kV
Conductor
Class 5 flexible copper conductor
Insulation / jacket
SHF1 or SHF2 LSZH marine sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Marine LSZH EMC VFD Cable is a specific variable-frequency drive cable construction for shipboard motor drives, marine pumps, offshore auxiliary drives, using class 5 flexible copper conductor, xlpe or epr insulation, foil and tinned copper braid emc screen and shf1 or shf2 lszh marine sheath.

  • Shipboard motor drives
  • Marine pumps
  • Offshore auxiliary drives
  • Ventilation fans

Cable Construction

  • Class 5 flexible copper conductor
  • XLPE or EPR insulation
  • Symmetrical protective earth or ground conductors
  • Foil and tinned copper braid EMC screen
  • SHF1 or SHF2 LSZH marine sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 9 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

0.6/1 kV EMC drive specification references

Each row is an exact VFD cable cable specification sheet. Shared insulation, EMC screen and sheath data are listed above.

  • Voltage class0.6/1 kV
  • EMC screenFoil and tinned copper braid EMC screen
Cable referenceCore / ground designPower conductorMax DC resistance at 20 °COD guide
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 6 mm² + 3 symmetrical grounds x 1.5 mm²3 x 6 mm² + 3 symmetrical grounds x 1.5 mm²6 mm²3.30 Ω/km16 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 10 mm² + 3 symmetrical grounds x 1.5 mm²3 x 10 mm² + 3 symmetrical grounds x 1.5 mm²10 mm²1.91 Ω/km18 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 16 mm² + 3 symmetrical grounds x 1.5 mm²3 x 16 mm² + 3 symmetrical grounds x 1.5 mm²16 mm²1.21 Ω/km20 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 25 mm² + 3 symmetrical grounds x 4 mm²3 x 25 mm² + 3 symmetrical grounds x 4 mm²25 mm²0.780 Ω/km23 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 35 mm² + 3 symmetrical grounds x 4 mm²3 x 35 mm² + 3 symmetrical grounds x 4 mm²35 mm²0.554 Ω/km25 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 50 mm² + 3 symmetrical grounds x 10 mm²3 x 50 mm² + 3 symmetrical grounds x 10 mm²50 mm²0.386 Ω/km28 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 70 mm² + 3 symmetrical grounds x 10 mm²3 x 70 mm² + 3 symmetrical grounds x 10 mm²70 mm²0.272 Ω/km32 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 95 mm² + 3 symmetrical grounds x 16 mm²3 x 95 mm² + 3 symmetrical grounds x 16 mm²95 mm²0.206 Ω/km35 mm
Marine LSZH EMC VFD cable 0.6/1 kV 3 x 120 mm² + 3 symmetrical grounds x 16 mm²3 x 120 mm² + 3 symmetrical grounds x 16 mm²120 mm²0.161 Ω/km38 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
