Low-voltage EMC drive cable

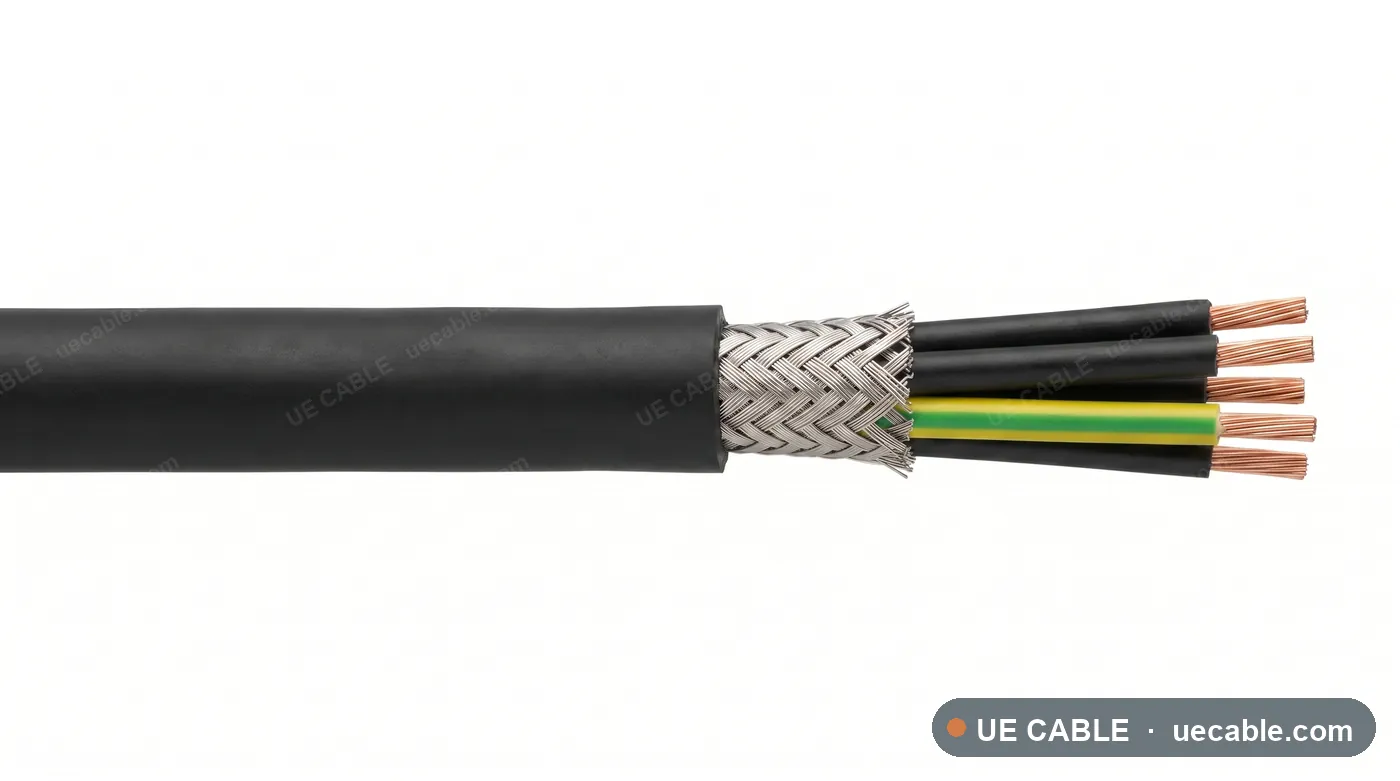

LSZH EMC VFD Cable 0.6/1 kV is a specific variable-frequency drive cable construction for variable frequency drives, pumps, fans, using class 5 flexible copper conductor, xlpe or drive-grade cross-linked insulation, aluminium/polyester tape plus tinned copper braid screen and lszh outer sheath.
Cable Type Data
LSZH EMC VFD Cable 0.6/1 kV is a specific variable-frequency drive cable construction for variable frequency drives, pumps, fans, using class 5 flexible copper conductor, xlpe or drive-grade cross-linked insulation, aluminium/polyester tape plus tinned copper braid screen and lszh outer sheath.
Specifications
Each row below is a complete specification sheet — 9 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact VFD cable cable specification sheet. Shared insulation, EMC screen and sheath data are listed above.
| Cable reference | Core / ground design | Power conductor | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|---|
| LSZH EMC VFD cable 0.6/1 kV 3 x 6 mm² + 3 symmetrical grounds x 1.5 mm² | 3 x 6 mm² + 3 symmetrical grounds x 1.5 mm² | 6 mm² | 3.30 Ω/km | 16 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 10 mm² + 3 symmetrical grounds x 1.5 mm² | 3 x 10 mm² + 3 symmetrical grounds x 1.5 mm² | 10 mm² | 1.91 Ω/km | 18 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 16 mm² + 3 symmetrical grounds x 1.5 mm² | 3 x 16 mm² + 3 symmetrical grounds x 1.5 mm² | 16 mm² | 1.21 Ω/km | 20 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 25 mm² + 3 symmetrical grounds x 4 mm² | 3 x 25 mm² + 3 symmetrical grounds x 4 mm² | 25 mm² | 0.780 Ω/km | 23 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 35 mm² + 3 symmetrical grounds x 4 mm² | 3 x 35 mm² + 3 symmetrical grounds x 4 mm² | 35 mm² | 0.554 Ω/km | 25 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 50 mm² + 3 symmetrical grounds x 10 mm² | 3 x 50 mm² + 3 symmetrical grounds x 10 mm² | 50 mm² | 0.386 Ω/km | 28 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 70 mm² + 3 symmetrical grounds x 10 mm² | 3 x 70 mm² + 3 symmetrical grounds x 10 mm² | 70 mm² | 0.272 Ω/km | 32 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 95 mm² + 3 symmetrical grounds x 16 mm² | 3 x 95 mm² + 3 symmetrical grounds x 16 mm² | 95 mm² | 0.206 Ω/km | 35 mm |
| LSZH EMC VFD cable 0.6/1 kV 3 x 120 mm² + 3 symmetrical grounds x 16 mm² | 3 x 120 mm² + 3 symmetrical grounds x 16 mm² | 120 mm² | 0.161 Ω/km | 38 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
