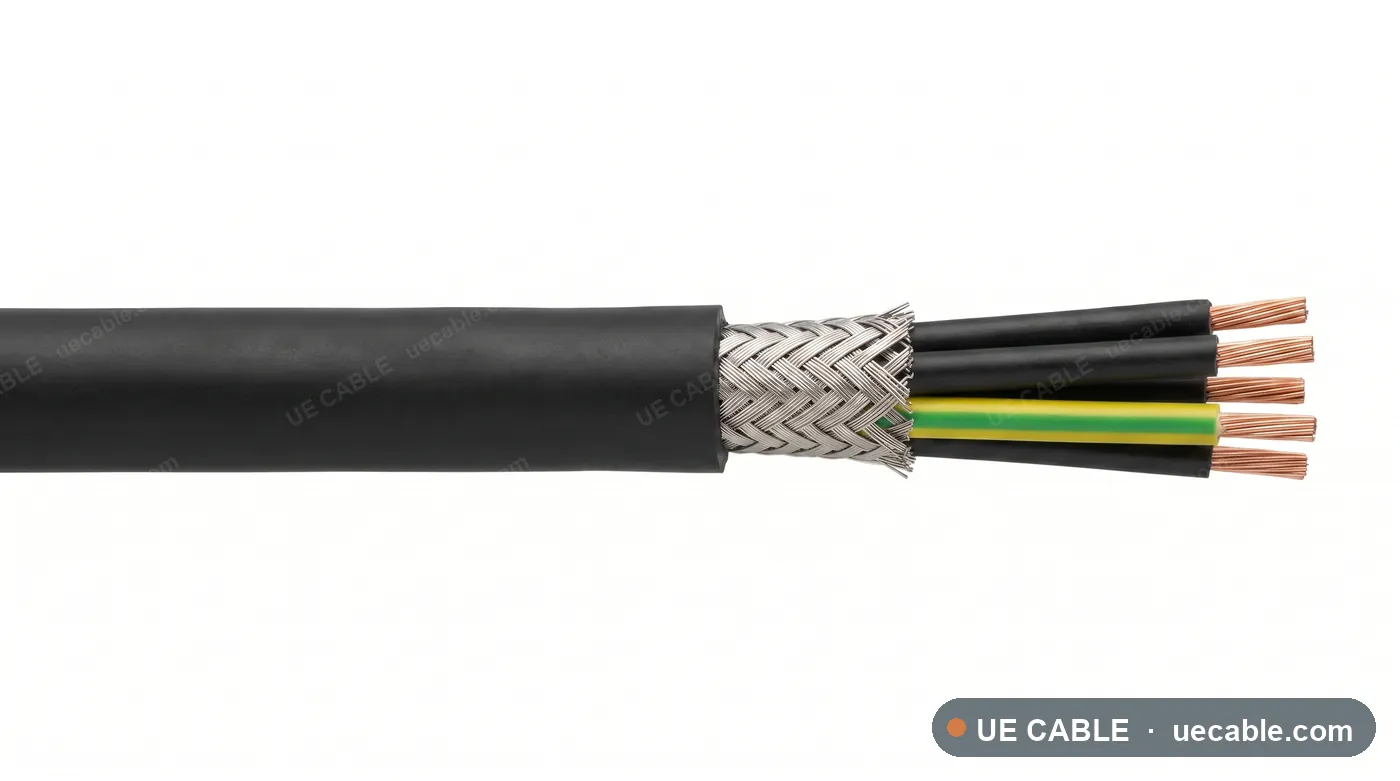

LSZH EMC VFD Cable 1.8/3 kV cable construction reference

Higher-voltage EMC drive cable

LSZH EMC VFD Cable 1.8/3 kV

LSZH EMC VFD Cable 1.8/3 kV is a specific variable-frequency drive cable construction for large motor drives, industrial inverters, pump stations, using class 5 flexible copper conductor, xlpe or drive-grade cross-linked insulation, aluminium/polyester tape plus tinned copper braid screen and lszh outer sheath.

Standard
IEC 60502-1
Voltage class
1.8/3 kV
Conductor
Class 5 flexible copper conductor
Insulation / jacket
LSZH
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

LSZH EMC VFD Cable 1.8/3 kV is a specific variable-frequency drive cable construction for large motor drives, industrial inverters, pump stations, using class 5 flexible copper conductor, xlpe or drive-grade cross-linked insulation, aluminium/polyester tape plus tinned copper braid screen and lszh outer sheath.

  • Large motor drives
  • Industrial inverters
  • Pump stations
  • Longer drive-to-motor runs

Cable Construction

  • Class 5 flexible copper conductor
  • XLPE or drive-grade cross-linked insulation
  • Symmetrical protective earth or ground conductors
  • Aluminium/polyester tape plus tinned copper braid screen
  • LSZH outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 9 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

1.8/3 kV EMC drive specification references

Each row is an exact VFD cable cable specification sheet. Shared insulation, EMC screen and sheath data are listed above.

  • Voltage class1.8/3 kV
  • EMC screenAluminium/polyester tape plus tinned copper braid screen
Cable referenceCore / ground designPower conductorMax DC resistance at 20 °COD guide
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 25 mm² + 3 symmetrical grounds x 4 mm²3 x 25 mm² + 3 symmetrical grounds x 4 mm²25 mm²0.780 Ω/km28 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 35 mm² + 3 symmetrical grounds x 4 mm²3 x 35 mm² + 3 symmetrical grounds x 4 mm²35 mm²0.554 Ω/km30 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 50 mm² + 3 symmetrical grounds x 10 mm²3 x 50 mm² + 3 symmetrical grounds x 10 mm²50 mm²0.386 Ω/km33 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 70 mm² + 3 symmetrical grounds x 10 mm²3 x 70 mm² + 3 symmetrical grounds x 10 mm²70 mm²0.272 Ω/km37 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 95 mm² + 3 symmetrical grounds x 16 mm²3 x 95 mm² + 3 symmetrical grounds x 16 mm²95 mm²0.206 Ω/km40 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 120 mm² + 3 symmetrical grounds x 16 mm²3 x 120 mm² + 3 symmetrical grounds x 16 mm²120 mm²0.161 Ω/km43 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 150 mm² + 3 symmetrical grounds x 25 mm²3 x 150 mm² + 3 symmetrical grounds x 25 mm²150 mm²0.129 Ω/km47 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 185 mm² + 3 symmetrical grounds x 25 mm²3 x 185 mm² + 3 symmetrical grounds x 25 mm²185 mm²0.106 Ω/km50 mm
1.8/3 kV LSZH EMC VFD cable 1.8/3 kV 3 x 240 mm² + 3 symmetrical grounds x 25 mm²3 x 240 mm² + 3 symmetrical grounds x 25 mm²240 mm²0.0801 Ω/km55 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
