Low-capacitance drive cable

Low Capacitance XLPE VFD Cable

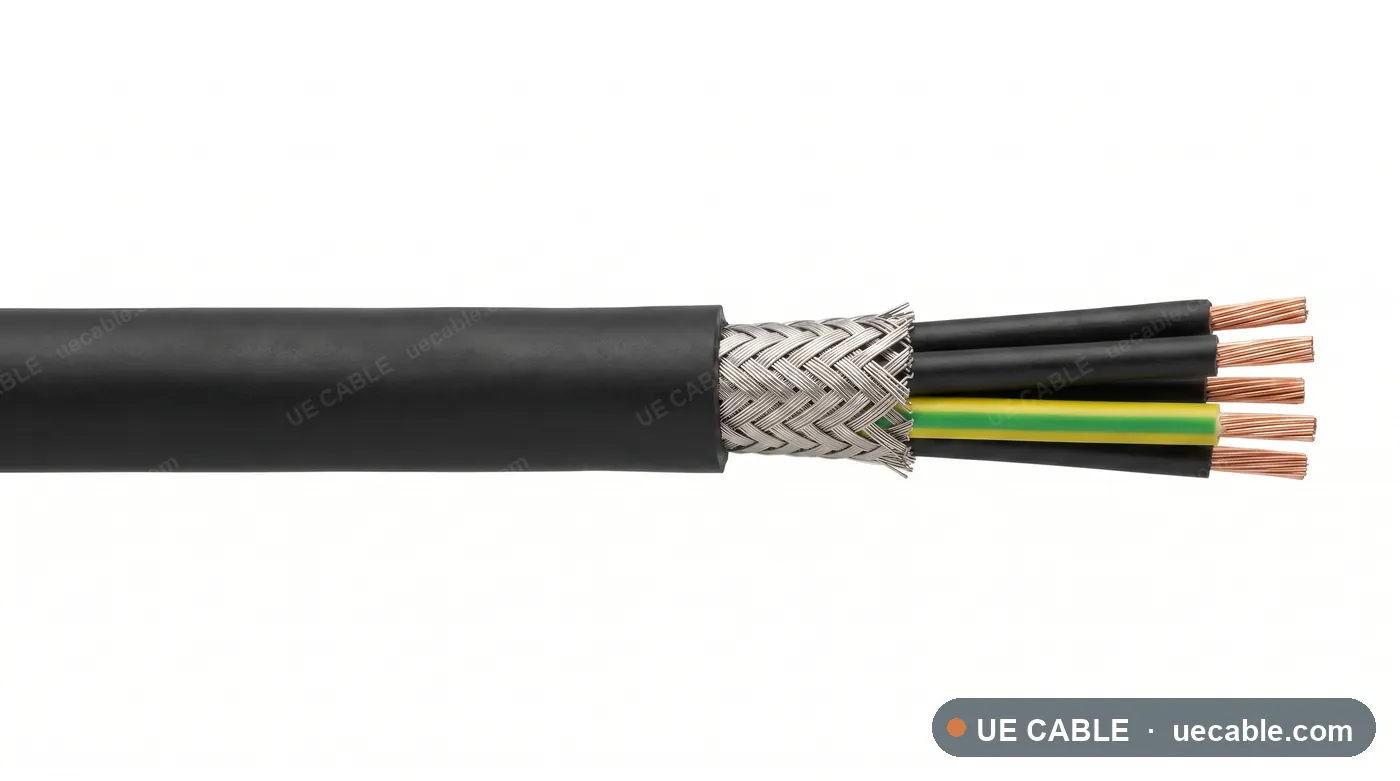

Low Capacitance XLPE VFD Cable is a specific variable-frequency drive cable construction for long motor feeder runs, high emc demand installations, conveyor drives, using class 5 flexible copper conductor, low-capacitance xlpe insulation, copper tape plus overall copper braid screen and oil and uv resistant sheath.

Standard: IEC 60502-1
Voltage class: 0.6/1 kV
Conductor: Class 5 flexible copper conductor
Insulation / jacket: Oil and UV resistant sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Long motor feeder runs
High EMC demand installations
Conveyor drives
Process plant motors

Cable Construction

Class 5 flexible copper conductor
Low-capacitance XLPE insulation
Symmetrical protective earth or ground conductors
Copper tape plus overall copper braid screen
Oil and UV resistant sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 9 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

0.6/1 kV EMC drive specification references

Each row is an exact VFD cable cable specification sheet. Shared insulation, EMC screen and sheath data are listed above.

Voltage class0.6/1 kV
EMC screenCopper tape plus overall copper braid screen

Cable reference	Core / ground design	Power conductor	Max DC resistance at 20 °C	OD guide
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 6 mm² + 3 symmetrical grounds x 1.5 mm²	3 x 6 mm² + 3 symmetrical grounds x 1.5 mm²	6 mm²	3.30 Ω/km	15 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 10 mm² + 3 symmetrical grounds x 1.5 mm²	3 x 10 mm² + 3 symmetrical grounds x 1.5 mm²	10 mm²	1.91 Ω/km	17 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 16 mm² + 3 symmetrical grounds x 1.5 mm²	3 x 16 mm² + 3 symmetrical grounds x 1.5 mm²	16 mm²	1.21 Ω/km	19 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 25 mm² + 3 symmetrical grounds x 4 mm²	3 x 25 mm² + 3 symmetrical grounds x 4 mm²	25 mm²	0.780 Ω/km	22 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 35 mm² + 3 symmetrical grounds x 4 mm²	3 x 35 mm² + 3 symmetrical grounds x 4 mm²	35 mm²	0.554 Ω/km	24 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 50 mm² + 3 symmetrical grounds x 10 mm²	3 x 50 mm² + 3 symmetrical grounds x 10 mm²	50 mm²	0.386 Ω/km	27 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 70 mm² + 3 symmetrical grounds x 10 mm²	3 x 70 mm² + 3 symmetrical grounds x 10 mm²	70 mm²	0.272 Ω/km	31 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 95 mm² + 3 symmetrical grounds x 16 mm²	3 x 95 mm² + 3 symmetrical grounds x 16 mm²	95 mm²	0.206 Ω/km	34 mm
Low capacitance XLPE VFD cable 0.6/1 kV 3 x 120 mm² + 3 symmetrical grounds x 16 mm²	3 x 120 mm² + 3 symmetrical grounds x 16 mm²	120 mm²	0.161 Ω/km	37 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
