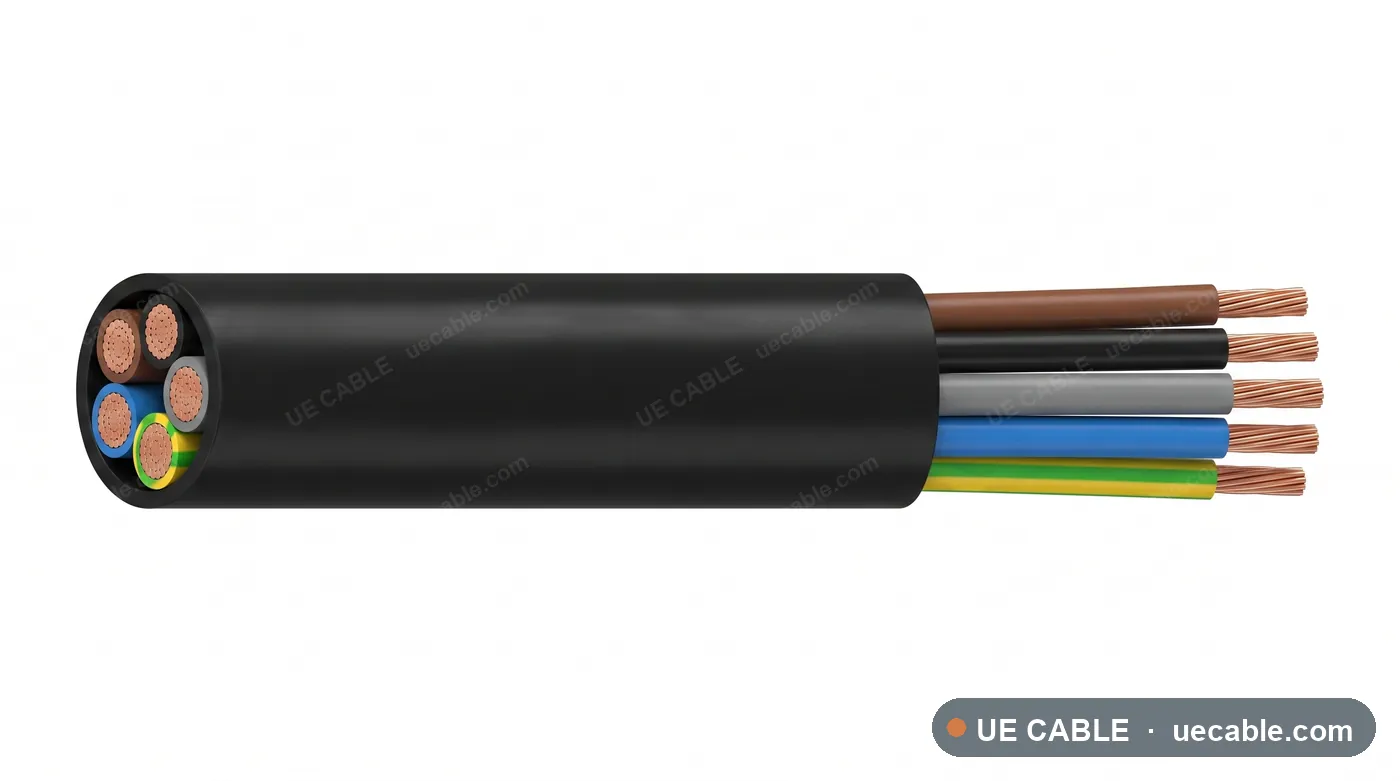

EN 50306-4 Thin Wall Multicore Rolling Stock Cable cable construction reference

Thin wall multicore train cable

EN 50306-4 Thin Wall Multicore Rolling Stock Cable

EN 50306-4 Thin Wall Multicore Rolling Stock Cable is a rolling stock cable construction for control harnesses, driver desks, switchboards, using class 5 tinned copper conductor, thin wall halogen-free core insulation and thin wall halogen-free rolling stock sheath.

Standard
EN 50306-4
Voltage class
300/500 V
Temperature class
90 °C or 105 °C class guide
Conductor
Class 5 tinned copper conductor
Insulation / jacket
Thin wall halogen-free rolling stock sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50306-4 Thin Wall Multicore Rolling Stock Cable is a rolling stock cable construction for control harnesses, driver desks, switchboards, using class 5 tinned copper conductor, thin wall halogen-free core insulation and thin wall halogen-free rolling stock sheath.

  • Control harnesses
  • Driver desks
  • Switchboards
  • Compact train wiring

Cable Construction

  • Class 5 tinned copper conductor
  • Thin wall halogen-free core insulation
  • Thin wall halogen-free rolling stock sheath
  • Halogen-free low-smoke rolling stock compound system

Specifications

Select a cable size.

Each row below is a complete specification sheet — 40 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Space-saving multicore control wiring specification references

Each row is an exact rolling stock cable cable specification sheet. Shared EN railway fire performance, conductor, insulation and sheath data are listed above.

  • Onboard dutySpace-saving multicore control wiring
  • Wall systemThin wall multicore sheath
  • Voltage class300/500 V
  • Fire classEN 45545-2 HL1 to HL3 material system
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 2 core 0.5 mm²2 core0.5 mm²37.1 Ω/km8.9 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 2 core 0.75 mm²2 core0.75 mm²24.7 Ω/km9.2 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 2 core 1.0 mm²2 core1.0 mm²18.5 Ω/km9.5 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 2 core 1.5 mm²2 core1.5 mm²12.7 Ω/km9.9 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 2 core 2.5 mm²2 core2.5 mm²7.6 Ω/km10.6 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 3 core 0.5 mm²3 core0.5 mm²37.1 Ω/km9.4 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 3 core 0.75 mm²3 core0.75 mm²24.7 Ω/km9.7 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 3 core 1.0 mm²3 core1.0 mm²18.5 Ω/km10.0 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 3 core 1.5 mm²3 core1.5 mm²12.7 Ω/km10.4 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 3 core 2.5 mm²3 core2.5 mm²7.6 Ω/km11.1 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 4 core 0.5 mm²4 core0.5 mm²37.1 Ω/km9.8 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 4 core 0.75 mm²4 core0.75 mm²24.7 Ω/km10.1 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 4 core 1.0 mm²4 core1.0 mm²18.5 Ω/km10.3 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 4 core 1.5 mm²4 core1.5 mm²12.7 Ω/km10.8 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 4 core 2.5 mm²4 core2.5 mm²7.6 Ω/km11.5 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 7 core 0.5 mm²7 core0.5 mm²37.1 Ω/km10.7 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 7 core 0.75 mm²7 core0.75 mm²24.7 Ω/km11.0 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 7 core 1.0 mm²7 core1.0 mm²18.5 Ω/km11.3 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 7 core 1.5 mm²7 core1.5 mm²12.7 Ω/km11.7 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 7 core 2.5 mm²7 core2.5 mm²7.6 Ω/km12.4 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 12 core 0.5 mm²12 core0.5 mm²37.1 Ω/km11.9 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 12 core 0.75 mm²12 core0.75 mm²24.7 Ω/km12.2 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 12 core 1.0 mm²12 core1.0 mm²18.5 Ω/km12.5 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 12 core 1.5 mm²12 core1.5 mm²12.7 Ω/km12.9 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 12 core 2.5 mm²12 core2.5 mm²7.6 Ω/km13.6 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 19 core 0.5 mm²19 core0.5 mm²37.1 Ω/km13.2 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 19 core 0.75 mm²19 core0.75 mm²24.7 Ω/km13.5 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 19 core 1.0 mm²19 core1.0 mm²18.5 Ω/km13.8 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 19 core 1.5 mm²19 core1.5 mm²12.7 Ω/km14.2 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 19 core 2.5 mm²19 core2.5 mm²7.6 Ω/km14.9 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 24 core 0.5 mm²24 core0.5 mm²37.1 Ω/km14.0 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 24 core 0.75 mm²24 core0.75 mm²24.7 Ω/km14.3 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 24 core 1.0 mm²24 core1.0 mm²18.5 Ω/km14.6 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 24 core 1.5 mm²24 core1.5 mm²12.7 Ω/km15.0 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 24 core 2.5 mm²24 core2.5 mm²7.6 Ω/km15.7 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 48 core 0.5 mm²48 core0.5 mm²37.1 Ω/km16.9 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 48 core 0.75 mm²48 core0.75 mm²24.7 Ω/km17.2 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 48 core 1.0 mm²48 core1.0 mm²18.5 Ω/km17.5 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 48 core 1.5 mm²48 core1.5 mm²12.7 Ω/km17.9 mm
EN 50306 thin wall multicore 300/500 V Space-saving multicore control wiring 48 core 2.5 mm²48 core2.5 mm²7.6 Ω/km18.6 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
