EN 50264-3-2 Multicore Rolling Stock Control Cable cable construction reference

Standard wall multicore control cable

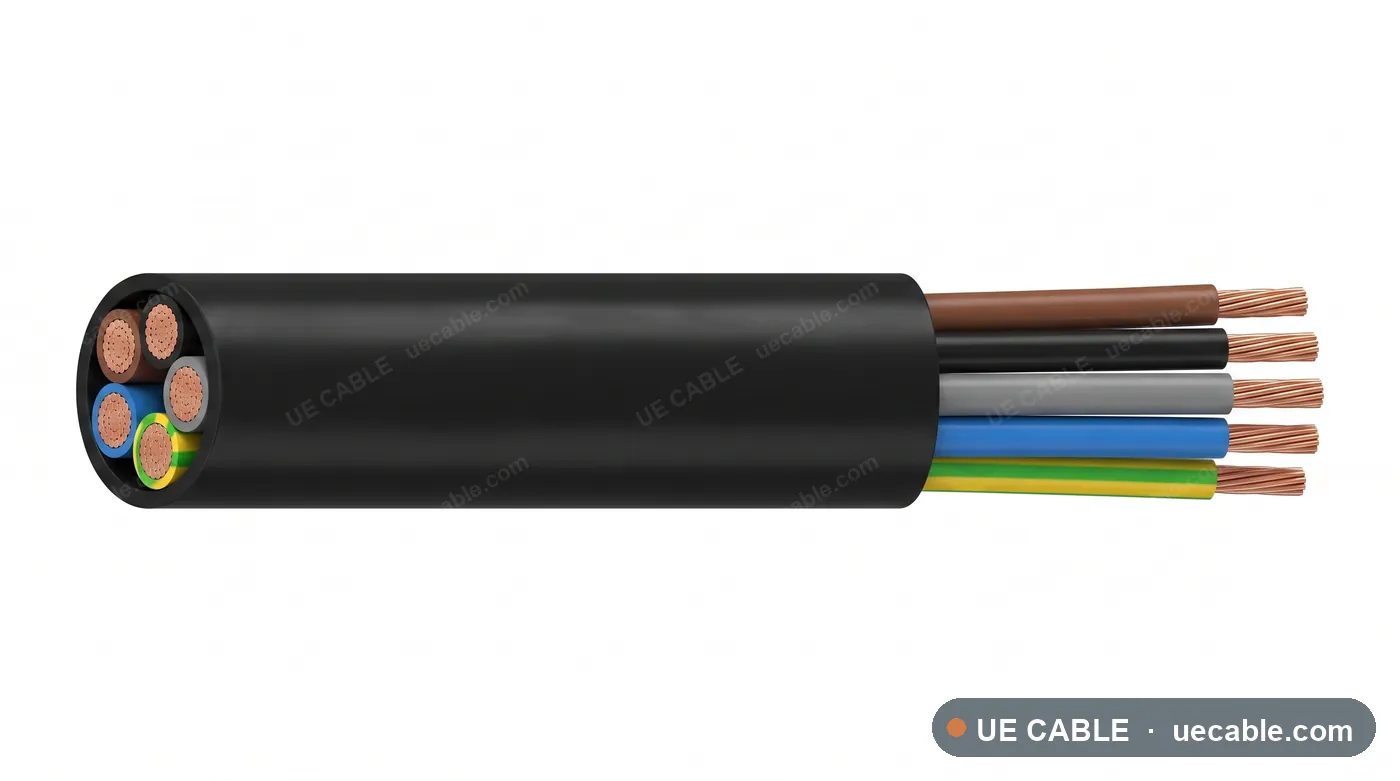

EN 50264-3-2 Multicore Rolling Stock Control Cable

EN 50264-3-2 Multicore Rolling Stock Control Cable is a rolling stock cable construction for train control, auxiliary systems, switchboards, using class 5 tinned copper conductor, cross-linked halogen-free core insulation and halogen-free rolling stock outer sheath.

Standard
EN 50264-3-2
Voltage class
300/500 V or 0.6/1 kV
Temperature class
-40 °C to +120 °C fixed guide
Conductor
Class 5 tinned copper conductor
Insulation / jacket
Halogen-free rolling stock outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50264-3-2 Multicore Rolling Stock Control Cable is a rolling stock cable construction for train control, auxiliary systems, switchboards, using class 5 tinned copper conductor, cross-linked halogen-free core insulation and halogen-free rolling stock outer sheath.

  • Train control
  • Auxiliary systems
  • Switchboards
  • HVAC and lighting

Cable Construction

  • Class 5 tinned copper conductor
  • Cross-linked halogen-free core insulation
  • Halogen-free rolling stock outer sheath
  • Halogen-free low-smoke rolling stock compound system

Specifications

Select a cable size.

Each row below is a complete specification sheet — 42 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Control and auxiliary circuits specification references

Each row is an exact rolling stock cable cable specification sheet. Shared EN railway fire performance, conductor, insulation and sheath data are listed above.

  • Onboard dutyControl and auxiliary circuits
  • Wall systemStandard wall multicore sheath
  • Voltage class300/500 V or 0.6/1 kV
  • Fire classEN 45545-2 HL1 to HL3 material system
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 2 core 0.5 mm²2 core0.5 mm²37.1 Ω/km9.5 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 2 core 0.75 mm²2 core0.75 mm²24.7 Ω/km9.8 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 2 core 1.0 mm²2 core1.0 mm²18.5 Ω/km10.1 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 2 core 1.5 mm²2 core1.5 mm²12.7 Ω/km10.5 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 2 core 2.5 mm²2 core2.5 mm²7.6 Ω/km11.2 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 2 core 4 mm²2 core4 mm²4.7 Ω/km12.1 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 2 core 6 mm²2 core6 mm²3.1 Ω/km12.9 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 3 core 0.5 mm²3 core0.5 mm²37.1 Ω/km10.0 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 3 core 0.75 mm²3 core0.75 mm²24.7 Ω/km10.3 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 3 core 1.0 mm²3 core1.0 mm²18.5 Ω/km10.6 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 3 core 1.5 mm²3 core1.5 mm²12.7 Ω/km11.0 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 3 core 2.5 mm²3 core2.5 mm²7.6 Ω/km11.7 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 3 core 4 mm²3 core4 mm²4.7 Ω/km12.5 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 3 core 6 mm²3 core6 mm²3.1 Ω/km13.4 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 4 core 0.5 mm²4 core0.5 mm²37.1 Ω/km10.4 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 4 core 0.75 mm²4 core0.75 mm²24.7 Ω/km10.7 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 4 core 1.0 mm²4 core1.0 mm²18.5 Ω/km10.9 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 4 core 1.5 mm²4 core1.5 mm²12.7 Ω/km11.4 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 4 core 2.5 mm²4 core2.5 mm²7.6 Ω/km12.1 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 4 core 4 mm²4 core4 mm²4.7 Ω/km12.9 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 4 core 6 mm²4 core6 mm²3.1 Ω/km13.8 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 7 core 0.5 mm²7 core0.5 mm²37.1 Ω/km11.3 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 7 core 0.75 mm²7 core0.75 mm²24.7 Ω/km11.6 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 7 core 1.0 mm²7 core1.0 mm²18.5 Ω/km11.9 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 7 core 1.5 mm²7 core1.5 mm²12.7 Ω/km12.3 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 7 core 2.5 mm²7 core2.5 mm²7.6 Ω/km13.0 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 7 core 4 mm²7 core4 mm²4.7 Ω/km13.8 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 7 core 6 mm²7 core6 mm²3.1 Ω/km14.7 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 12 core 0.5 mm²12 core0.5 mm²37.1 Ω/km12.5 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 12 core 0.75 mm²12 core0.75 mm²24.7 Ω/km12.8 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 12 core 1.0 mm²12 core1.0 mm²18.5 Ω/km13.1 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 12 core 1.5 mm²12 core1.5 mm²12.7 Ω/km13.5 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 12 core 2.5 mm²12 core2.5 mm²7.6 Ω/km14.2 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 12 core 4 mm²12 core4 mm²4.7 Ω/km15.0 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 12 core 6 mm²12 core6 mm²3.1 Ω/km15.9 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 19 core 0.5 mm²19 core0.5 mm²37.1 Ω/km13.8 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 19 core 0.75 mm²19 core0.75 mm²24.7 Ω/km14.1 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 19 core 1.0 mm²19 core1.0 mm²18.5 Ω/km14.4 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 19 core 1.5 mm²19 core1.5 mm²12.7 Ω/km14.8 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 19 core 2.5 mm²19 core2.5 mm²7.6 Ω/km15.5 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 19 core 4 mm²19 core4 mm²4.7 Ω/km16.3 mm
EN 50264 multicore control cable 300/500 V or 0.6/1 kV Control and auxiliary circuits 19 core 6 mm²19 core6 mm²3.1 Ω/km17.2 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
