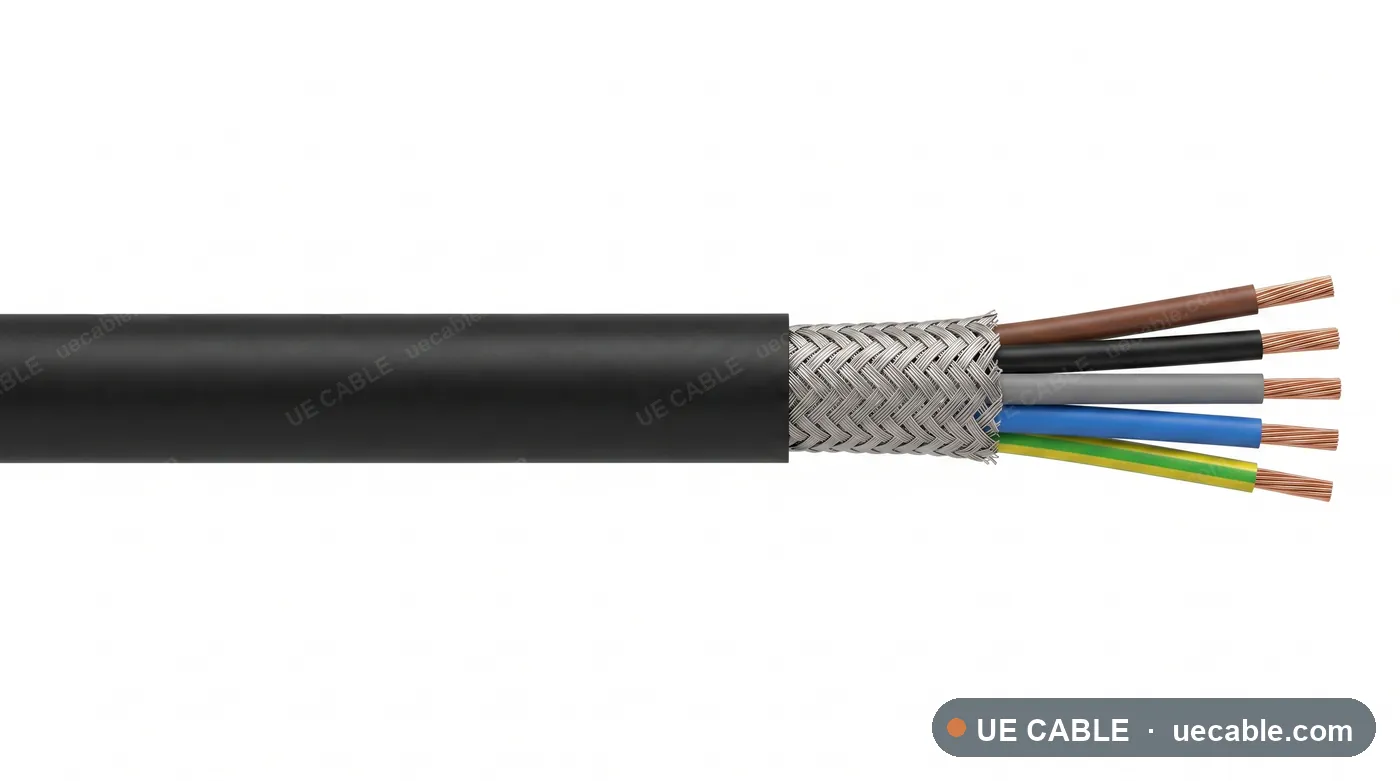

EN 50264-3-2 Screened Multicore Rolling Stock Cable cable construction reference

Screened standard wall multicore cable

EN 50264-3-2 Screened Multicore Rolling Stock Cable

EN 50264-3-2 Screened Multicore Rolling Stock Cable is a rolling stock cable construction for emc-sensitive control, vehicle electronics, auxiliary systems, using class 5 tinned copper conductor, cross-linked halogen-free core insulation, overall tinned copper braid screen and halogen-free rolling stock outer sheath.

Standard
EN 50264-3-2
Voltage class
300/500 V or 0.6/1 kV
Temperature class
-40 °C to +120 °C fixed guide
Conductor
Class 5 tinned copper conductor
Insulation / jacket
Halogen-free rolling stock outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50264-3-2 Screened Multicore Rolling Stock Cable is a rolling stock cable construction for emc-sensitive control, vehicle electronics, auxiliary systems, using class 5 tinned copper conductor, cross-linked halogen-free core insulation, overall tinned copper braid screen and halogen-free rolling stock outer sheath.

  • EMC-sensitive control
  • Vehicle electronics
  • Auxiliary systems
  • Train equipment cabinets

Cable Construction

  • Class 5 tinned copper conductor
  • Cross-linked halogen-free core insulation
  • Overall tinned copper braid screen
  • Halogen-free rolling stock outer sheath
  • Halogen-free low-smoke rolling stock compound system

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

EMC-sensitive control circuits specification references

Each row is an exact rolling stock cable cable specification sheet. Shared EN railway fire performance, conductor, insulation and sheath data are listed above.

  • Onboard dutyEMC-sensitive control circuits
  • Wall systemStandard wall screened multicore sheath
  • Voltage class300/500 V or 0.6/1 kV
  • Fire classEN 45545-2 HL1 to HL3 material system
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 2 core 0.5 mm²2 core0.5 mm²37.1 Ω/km10.5 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 2 core 0.75 mm²2 core0.75 mm²24.7 Ω/km10.8 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 2 core 1.0 mm²2 core1.0 mm²18.5 Ω/km11.1 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 2 core 1.5 mm²2 core1.5 mm²12.7 Ω/km11.5 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 2 core 2.5 mm²2 core2.5 mm²7.6 Ω/km12.2 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 4 core 0.5 mm²4 core0.5 mm²37.1 Ω/km11.4 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 4 core 0.75 mm²4 core0.75 mm²24.7 Ω/km11.7 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 4 core 1.0 mm²4 core1.0 mm²18.5 Ω/km11.9 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 4 core 1.5 mm²4 core1.5 mm²12.7 Ω/km12.4 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 4 core 2.5 mm²4 core2.5 mm²7.6 Ω/km13.1 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 7 core 0.5 mm²7 core0.5 mm²37.1 Ω/km12.3 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 7 core 0.75 mm²7 core0.75 mm²24.7 Ω/km12.6 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 7 core 1.0 mm²7 core1.0 mm²18.5 Ω/km12.9 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 7 core 1.5 mm²7 core1.5 mm²12.7 Ω/km13.3 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 7 core 2.5 mm²7 core2.5 mm²7.6 Ω/km14.0 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 12 core 0.5 mm²12 core0.5 mm²37.1 Ω/km13.5 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 12 core 0.75 mm²12 core0.75 mm²24.7 Ω/km13.8 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 12 core 1.0 mm²12 core1.0 mm²18.5 Ω/km14.1 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 12 core 1.5 mm²12 core1.5 mm²12.7 Ω/km14.5 mm
EN 50264 screened multicore 300/500 V or 0.6/1 kV EMC-sensitive control circuits 12 core 2.5 mm²12 core2.5 mm²7.6 Ω/km15.2 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
