Refinery LSZH Control SWA Oil And Gas Cable

Refinery LSZH Control SWA Oil And Gas Cable is an oil, gas and petrochemical cable construction for Refinery control circuits, Tank farm controls, Process skids, with IEC 60502-1 / BS 5467, multicore control cable, steel wire armour, lszh, low smoke and flame retardant and black lszh outer sheath.

Standard: IEC 60502-1 / BS 5467
Voltage class: 0.6/1 kV
Conductor: 1.5 mm², 2.5 mm², 4 mm²
Insulation / jacket: Black LSZH outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Refinery control circuits
Tank farm controls
Process skids
Auxiliary power and control

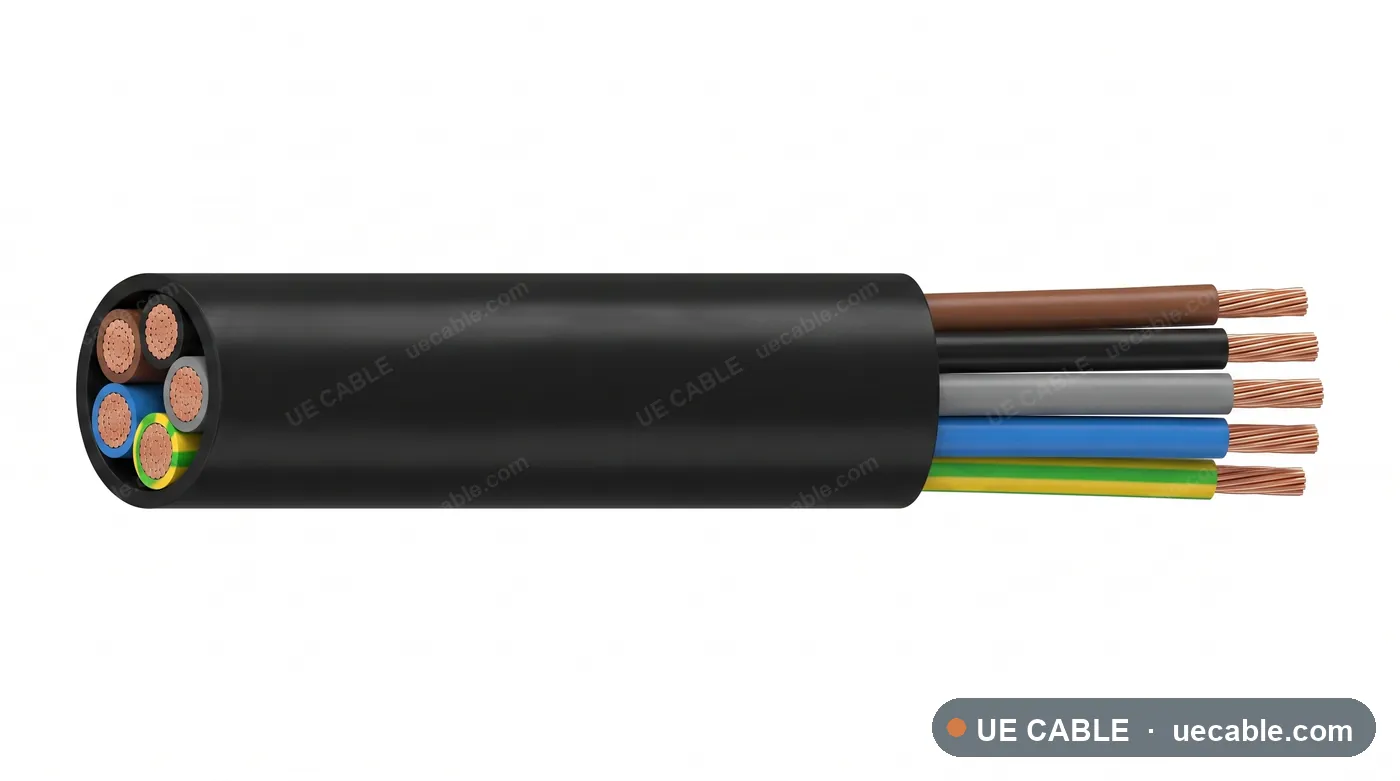

Cable Construction

Multicore control cable
Plain or tinned copper conductor, or optical fibre element where applicable
Circuit insulation and identification for oil, gas and petrochemical cable schedules
Steel wire armour
LSZH, low smoke and flame retardant
Black LSZH outer sheath for refinery, petrochemical plant and tank farm cable tray routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 15 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Refinery LSZH Control SWA specification references

Each row is an exact cable specification sheet. Confirm hazardous-area route, cable schedule, fire survival level, oil/mud exposure, gland/accessory package, marking and drum length before quotation.

Service packageOnshore refinery control and auxiliary package
StandardIEC 60502-1 / BS 5467
Cable designMulticore control cable
Voltage / signal class0.6/1 kV
Screen / protectionSteel wire armour
Fire and safety ratingLSZH, low smoke and flame retardant
Oil, mud and environmentRefinery, petrochemical plant and tank farm cable tray routes
SheathBlack LSZH outer sheath

Cable reference	Pair / core design	Conductor / fibre	Electrical / optical reference	OD guide
Refinery LSZH Control SWA 0.6/1 kV 7 core 1.5 mm² Black LSZH outer sheath	7 core	1.5 mm²	12.1 Ω/km max	22.5 mm
Refinery LSZH Control SWA 0.6/1 kV 7 core 2.5 mm² Black LSZH outer sheath	7 core	2.5 mm²	7.41 Ω/km max	23.1 mm
Refinery LSZH Control SWA 0.6/1 kV 7 core 4 mm² Black LSZH outer sheath	7 core	4 mm²	4.61 Ω/km max	23.8 mm
Refinery LSZH Control SWA 0.6/1 kV 12 core 1.5 mm² Black LSZH outer sheath	12 core	1.5 mm²	12.1 Ω/km max	23.6 mm
Refinery LSZH Control SWA 0.6/1 kV 12 core 2.5 mm² Black LSZH outer sheath	12 core	2.5 mm²	7.41 Ω/km max	24.2 mm
Refinery LSZH Control SWA 0.6/1 kV 12 core 4 mm² Black LSZH outer sheath	12 core	4 mm²	4.61 Ω/km max	24.9 mm
Refinery LSZH Control SWA 0.6/1 kV 19 core 1.5 mm² Black LSZH outer sheath	19 core	1.5 mm²	12.1 Ω/km max	24.8 mm
Refinery LSZH Control SWA 0.6/1 kV 19 core 2.5 mm² Black LSZH outer sheath	19 core	2.5 mm²	7.41 Ω/km max	25.4 mm
Refinery LSZH Control SWA 0.6/1 kV 19 core 4 mm² Black LSZH outer sheath	19 core	4 mm²	4.61 Ω/km max	26.1 mm
Refinery LSZH Control SWA 0.6/1 kV 27 core 1.5 mm² Black LSZH outer sheath	27 core	1.5 mm²	12.1 Ω/km max	26.0 mm
Refinery LSZH Control SWA 0.6/1 kV 27 core 2.5 mm² Black LSZH outer sheath	27 core	2.5 mm²	7.41 Ω/km max	26.5 mm
Refinery LSZH Control SWA 0.6/1 kV 27 core 4 mm² Black LSZH outer sheath	27 core	4 mm²	4.61 Ω/km max	27.2 mm
Refinery LSZH Control SWA 0.6/1 kV 37 core 1.5 mm² Black LSZH outer sheath	37 core	1.5 mm²	12.1 Ω/km max	27.2 mm
Refinery LSZH Control SWA 0.6/1 kV 37 core 2.5 mm² Black LSZH outer sheath	37 core	2.5 mm²	7.41 Ω/km max	27.7 mm
Refinery LSZH Control SWA 0.6/1 kV 37 core 4 mm² Black LSZH outer sheath	37 core	4 mm²	4.61 Ω/km max	28.4 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
