Fire resistant offshore power/control cable

NEK 606 BFOU Fire Resistant Power And Control Oil And Gas Cable

NEK 606 BFOU Fire Resistant Power And Control Oil And Gas Cable is an oil, gas and petrochemical cable construction for Emergency power circuits, Offshore safety systems, Fire pump control, with NEK 606, bfou fire resistant power and control cable, braid armour or offshore mechanical protection, circuit integrity fire resistant, low smoke and halogen free and shf2 mud resistant offshore sheath.

Standard: NEK 606
Voltage class: 0.6/1 kV
Conductor: 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm²
Insulation / jacket: SHF2 mud resistant offshore sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Emergency power circuits
Offshore safety systems
Fire pump control
Critical topside circuits

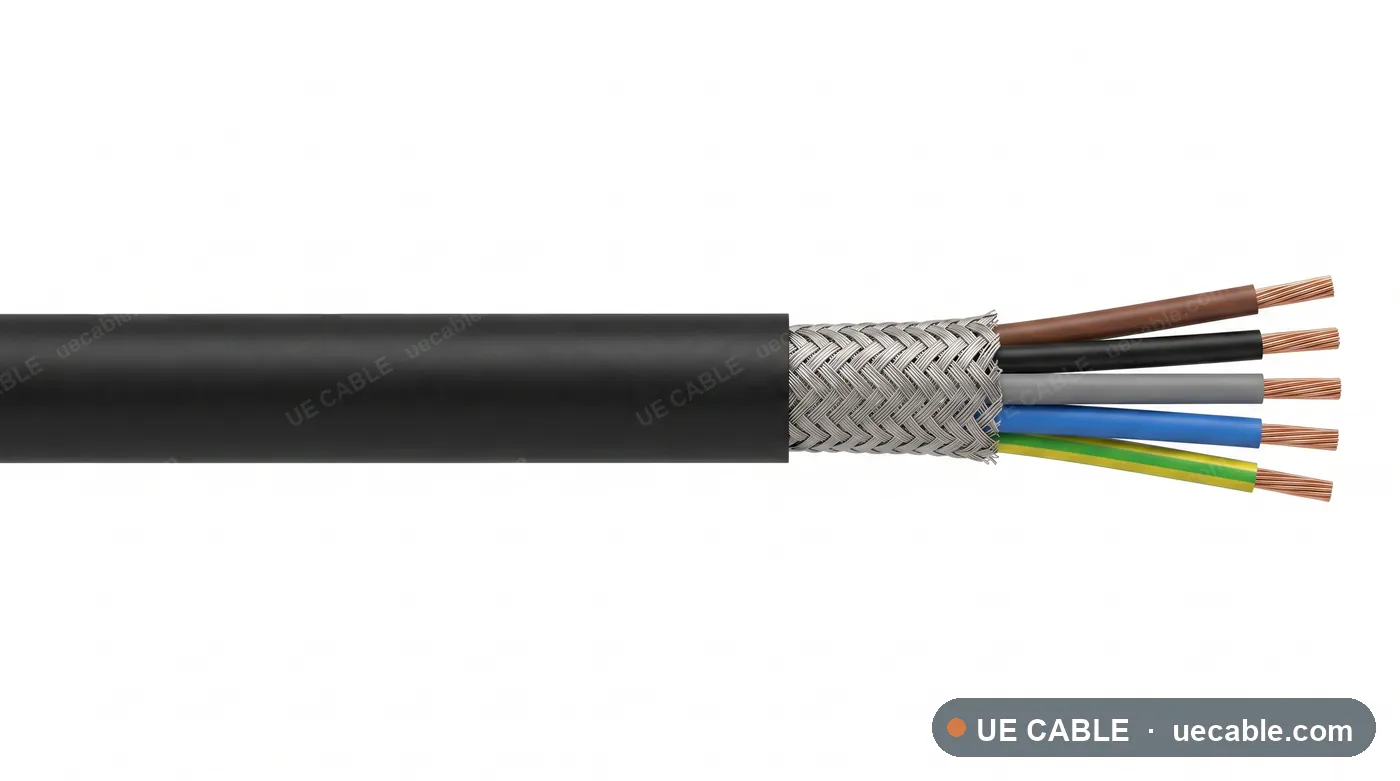

Cable Construction

BFOU fire resistant power and control cable
Plain or tinned copper conductor, or optical fibre element where applicable
Circuit insulation and identification for oil, gas and petrochemical cable schedules
Braid armour or offshore mechanical protection
Circuit integrity fire resistant, low smoke and halogen free
SHF2 mud resistant offshore sheath for offshore emergency, safety and critical power routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 25 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

BFOU Fire Resistant Power Control specification references

Each row is an exact cable specification sheet. Confirm hazardous-area route, cable schedule, fire survival level, oil/mud exposure, gland/accessory package, marking and drum length before quotation.

Service packageFire resistant offshore power and control package
StandardNEK 606
Cable designBFOU fire resistant power and control cable
Voltage / signal class0.6/1 kV
Screen / protectionBraid armour or offshore mechanical protection
Fire and safety ratingCircuit integrity fire resistant, low smoke and halogen free
Oil, mud and environmentOffshore emergency, safety and critical power routes
SheathSHF2 mud resistant offshore sheath

Cable reference	Pair / core design	Conductor / fibre	Electrical / optical reference	OD guide
BFOU Fire Resistant Power Control 0.6/1 kV 3 core 1.5 mm² SHF2 mud resistant offshore sheath	3 core	1.5 mm²	12.1 Ω/km max	21.9 mm
BFOU Fire Resistant Power Control 0.6/1 kV 3 core 2.5 mm² SHF2 mud resistant offshore sheath	3 core	2.5 mm²	7.41 Ω/km max	22.5 mm
BFOU Fire Resistant Power Control 0.6/1 kV 3 core 4 mm² SHF2 mud resistant offshore sheath	3 core	4 mm²	4.61 Ω/km max	23.1 mm
BFOU Fire Resistant Power Control 0.6/1 kV 3 core 6 mm² SHF2 mud resistant offshore sheath	3 core	6 mm²	3.08 Ω/km max	23.9 mm
BFOU Fire Resistant Power Control 0.6/1 kV 3 core 10 mm² SHF2 mud resistant offshore sheath	3 core	10 mm²	1.83 Ω/km max	25.0 mm
BFOU Fire Resistant Power Control 0.6/1 kV 4 core 1.5 mm² SHF2 mud resistant offshore sheath	4 core	1.5 mm²	12.1 Ω/km max	22.3 mm
BFOU Fire Resistant Power Control 0.6/1 kV 4 core 2.5 mm² SHF2 mud resistant offshore sheath	4 core	2.5 mm²	7.41 Ω/km max	22.8 mm
BFOU Fire Resistant Power Control 0.6/1 kV 4 core 4 mm² SHF2 mud resistant offshore sheath	4 core	4 mm²	4.61 Ω/km max	23.5 mm
BFOU Fire Resistant Power Control 0.6/1 kV 4 core 6 mm² SHF2 mud resistant offshore sheath	4 core	6 mm²	3.08 Ω/km max	24.2 mm
BFOU Fire Resistant Power Control 0.6/1 kV 4 core 10 mm² SHF2 mud resistant offshore sheath	4 core	10 mm²	1.83 Ω/km max	25.4 mm
BFOU Fire Resistant Power Control 0.6/1 kV 7 core 1.5 mm² SHF2 mud resistant offshore sheath	7 core	1.5 mm²	12.1 Ω/km max	23.1 mm
BFOU Fire Resistant Power Control 0.6/1 kV 7 core 2.5 mm² SHF2 mud resistant offshore sheath	7 core	2.5 mm²	7.41 Ω/km max	23.7 mm
BFOU Fire Resistant Power Control 0.6/1 kV 7 core 4 mm² SHF2 mud resistant offshore sheath	7 core	4 mm²	4.61 Ω/km max	24.4 mm
BFOU Fire Resistant Power Control 0.6/1 kV 7 core 6 mm² SHF2 mud resistant offshore sheath	7 core	6 mm²	3.08 Ω/km max	25.1 mm
BFOU Fire Resistant Power Control 0.6/1 kV 7 core 10 mm² SHF2 mud resistant offshore sheath	7 core	10 mm²	1.83 Ω/km max	26.2 mm
BFOU Fire Resistant Power Control 0.6/1 kV 12 core 1.5 mm² SHF2 mud resistant offshore sheath	12 core	1.5 mm²	12.1 Ω/km max	24.2 mm
BFOU Fire Resistant Power Control 0.6/1 kV 12 core 2.5 mm² SHF2 mud resistant offshore sheath	12 core	2.5 mm²	7.41 Ω/km max	24.8 mm
BFOU Fire Resistant Power Control 0.6/1 kV 12 core 4 mm² SHF2 mud resistant offshore sheath	12 core	4 mm²	4.61 Ω/km max	25.5 mm
BFOU Fire Resistant Power Control 0.6/1 kV 12 core 6 mm² SHF2 mud resistant offshore sheath	12 core	6 mm²	3.08 Ω/km max	26.2 mm
BFOU Fire Resistant Power Control 0.6/1 kV 12 core 10 mm² SHF2 mud resistant offshore sheath	12 core	10 mm²	1.83 Ω/km max	27.3 mm
BFOU Fire Resistant Power Control 0.6/1 kV 19 core 1.5 mm² SHF2 mud resistant offshore sheath	19 core	1.5 mm²	12.1 Ω/km max	25.4 mm
BFOU Fire Resistant Power Control 0.6/1 kV 19 core 2.5 mm² SHF2 mud resistant offshore sheath	19 core	2.5 mm²	7.41 Ω/km max	26.0 mm
BFOU Fire Resistant Power Control 0.6/1 kV 19 core 4 mm² SHF2 mud resistant offshore sheath	19 core	4 mm²	4.61 Ω/km max	26.7 mm
BFOU Fire Resistant Power Control 0.6/1 kV 19 core 6 mm² SHF2 mud resistant offshore sheath	19 core	6 mm²	3.08 Ω/km max	27.4 mm
BFOU Fire Resistant Power Control 0.6/1 kV 19 core 10 mm² SHF2 mud resistant offshore sheath	19 core	10 mm²	1.83 Ω/km max	28.5 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
