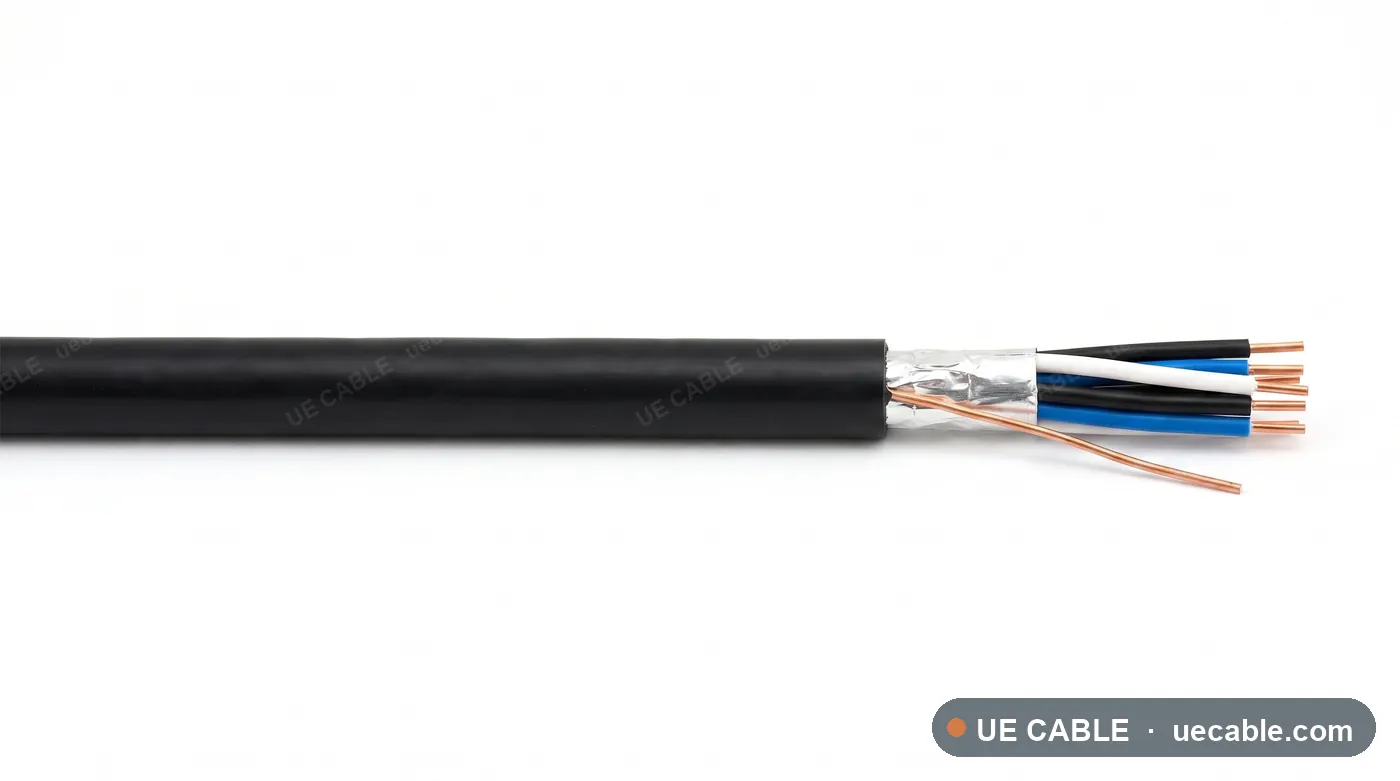

EN 50288-7 RE-2X(St)H Single Triple Instrumentation Cable cable construction reference

Overall Screened

EN 50288-7 RE-2X(St)H Single Triple Instrumentation Cable

EN 50288-7 RE-2X(St)H Single Triple Instrumentation Cable is an instrumentation cable construction for three-wire transmitter and RTD style instrumentation circuits, combining XLPE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
XLPE
Cross-section range
1 triple
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2X(St)H Single Triple Instrumentation Cable is an instrumentation cable construction for three-wire transmitter and RTD style instrumentation circuits, combining XLPE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • three-wire transmitter and RTD style instrumentation circuits

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • XLPE insulated triple with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Overall aluminium/polyester tape screen with tinned copper drain wire
  • Separator or bedding tape as required by construction
  • standard
  • LSZH outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 4 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2X(St)H Single Triple specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Pair / triple / core layout1 triple
  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referenceConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-XLPE-LSZH-OS-SINGLE-TRIPLE-1TRIPLE-0P5MM2 1 triple 0.5 mm²0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm8.0 mm76 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SINGLE-TRIPLE-1TRIPLE-0P75MM2 1 triple 0.75 mm²0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm8.2 mm83 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SINGLE-TRIPLE-1TRIPLE-1P0MM2 1 triple 1.0 mm²1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm8.4 mm89 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SINGLE-TRIPLE-1TRIPLE-1P5MM2 1 triple 1.5 mm²1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm8.7 mm103 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
