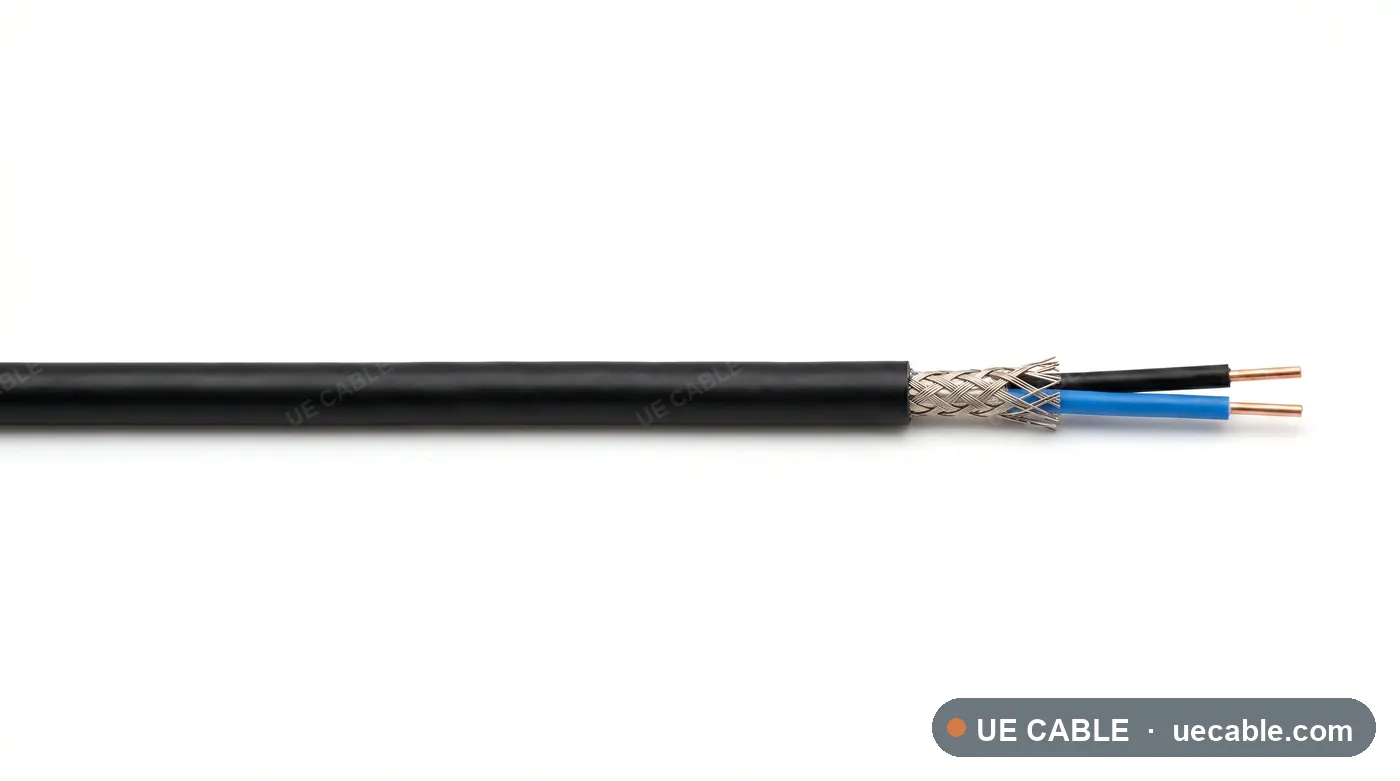

EN 50288-7 RE-2X(St)H CWB Single Pair Instrumentation Cable cable construction reference

Copper Wire Braid Screened

EN 50288-7 RE-2X(St)H CWB Single Pair Instrumentation Cable

EN 50288-7 RE-2X(St)H CWB Single Pair Instrumentation Cable is an instrumentation cable construction for single analogue or digital instrument loop, combining XLPE insulation, LSZH sheath, copper wire braid screen for emc protection and mechanical stability and a protected installation profile.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
XLPE
Cross-section range
1 pair
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2X(St)H CWB Single Pair Instrumentation Cable is an instrumentation cable construction for single analogue or digital instrument loop, combining XLPE insulation, LSZH sheath, copper wire braid screen for emc protection and mechanical stability and a protected installation profile.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • single analogue or digital instrument loop

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • XLPE insulated pair with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Copper wire braid screen for EMC protection and mechanical stability
  • Separator or bedding tape as required by construction
  • standard
  • LSZH outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 4 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2X(St)H CWB Single Pair specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Pair / triple / core layout1 pair
  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
  • Mutual capacitance115 pF/m guide
Cable referenceConductor sizeMax DC resistance at 20 °CL/R ratioOD guideWeight guide
UEC-EN50288-7-XLPE-LSZH-CWB-SINGLE-PAIR-1PAIR-0P5MM2 1 pair 0.5 mm²0.5 mm²39.39 Ω/km25 uH/ohm8.3 mm93 kg/km
UEC-EN50288-7-XLPE-LSZH-CWB-SINGLE-PAIR-1PAIR-0P75MM2 1 pair 0.75 mm²0.75 mm²26.8 Ω/km25 uH/ohm8.5 mm98 kg/km
UEC-EN50288-7-XLPE-LSZH-CWB-SINGLE-PAIR-1PAIR-1P0MM2 1 pair 1.0 mm²1.0 mm²19.7 Ω/km40 uH/ohm8.6 mm102 kg/km
UEC-EN50288-7-XLPE-LSZH-CWB-SINGLE-PAIR-1PAIR-1P5MM2 1 pair 1.5 mm²1.5 mm²13.43 Ω/km40 uH/ohm8.9 mm111 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
