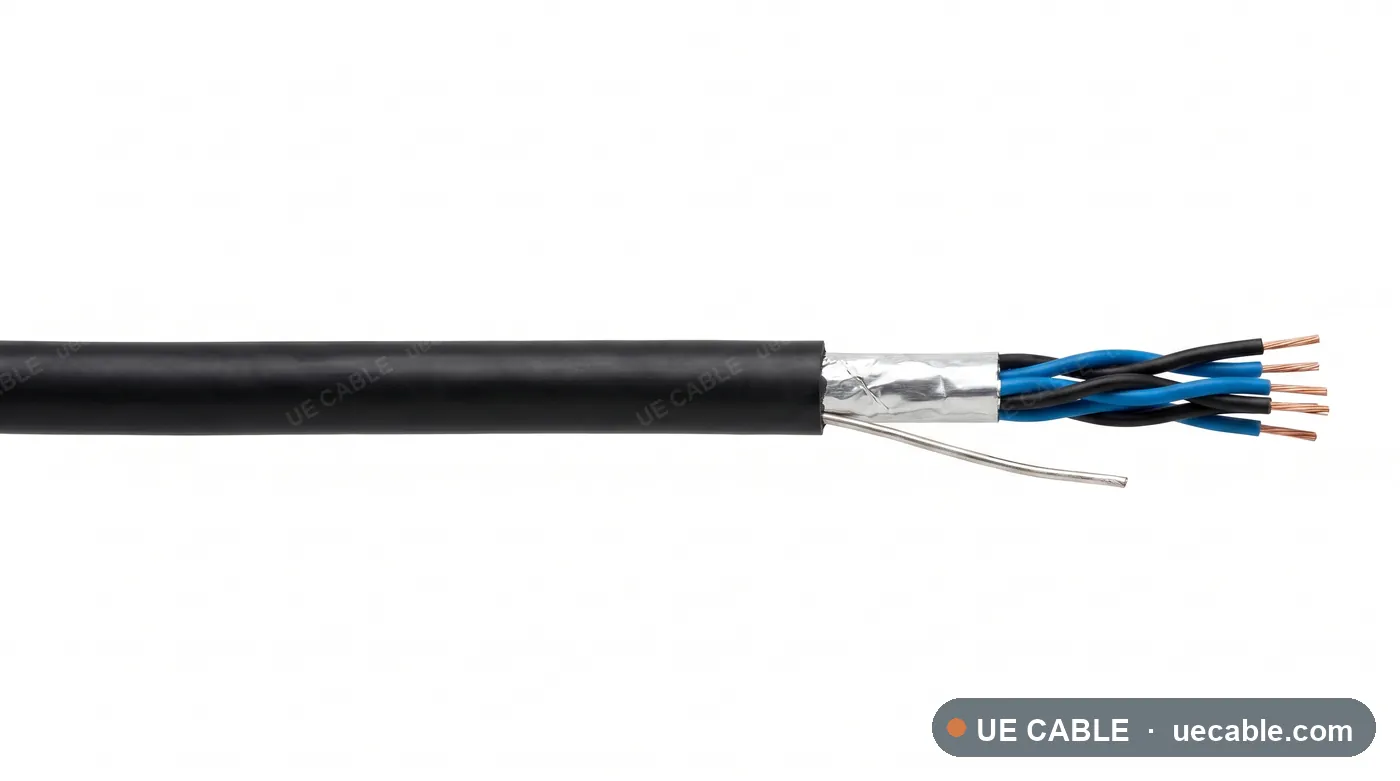

EN 50288-7 RE-2X(St)H Multipair Instrumentation Cable cable construction reference

Overall Screened

EN 50288-7 RE-2X(St)H Multipair Instrumentation Cable

EN 50288-7 RE-2X(St)H Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining XLPE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
XLPE
Cross-section range
2 pair to 50 pair available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2X(St)H Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining XLPE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • XLPE insulated pairs with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Overall aluminium/polyester tape screen with tinned copper drain wire
  • Separator or bedding tape as required by construction
  • standard
  • LSZH outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2X(St)H Multipair specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-2PAIR-0P5MM2 2 pair 0.5 mm²2 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm8.5 mm83 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-2PAIR-0P75MM2 2 pair 0.75 mm²2 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm8.7 mm92 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-2PAIR-1P0MM2 2 pair 1.0 mm²2 pair1.0 mm²19.7 Ω/km115 pF/m guide40 uH/ohm8.8 mm101 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-2PAIR-1P5MM2 2 pair 1.5 mm²2 pair1.5 mm²13.43 Ω/km115 pF/m guide40 uH/ohm9.1 mm118 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-5PAIR-0P5MM2 5 pair 0.5 mm²5 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm9.8 mm117 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-5PAIR-0P75MM2 5 pair 0.75 mm²5 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm10.0 mm139 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-5PAIR-1P0MM2 5 pair 1.0 mm²5 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm10.1 mm162 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-5PAIR-1P5MM2 5 pair 1.5 mm²5 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm10.4 mm206 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-10PAIR-0P5MM2 10 pair 0.5 mm²10 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm11.3 mm174 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-10PAIR-0P75MM2 10 pair 0.75 mm²10 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm11.5 mm219 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-10PAIR-1P0MM2 10 pair 1.0 mm²10 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm11.6 mm263 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-10PAIR-1P5MM2 10 pair 1.5 mm²10 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm11.9 mm352 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-15PAIR-0P5MM2 15 pair 0.5 mm²15 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm12.5 mm231 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-15PAIR-0P75MM2 15 pair 0.75 mm²15 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm12.6 mm298 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-15PAIR-1P0MM2 15 pair 1.0 mm²15 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm12.8 mm365 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-15PAIR-1P5MM2 15 pair 1.5 mm²15 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm13.0 mm498 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-20PAIR-0P5MM2 20 pair 0.5 mm²20 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm13.4 mm288 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-20PAIR-0P75MM2 20 pair 0.75 mm²20 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm13.6 mm377 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-20PAIR-1P0MM2 20 pair 1.0 mm²20 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm13.8 mm466 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-20PAIR-1P5MM2 20 pair 1.5 mm²20 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm14.0 mm644 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-30PAIR-0P5MM2 30 pair 0.5 mm²30 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm15.1 mm402 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-30PAIR-0P75MM2 30 pair 0.75 mm²30 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm15.2 mm536 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-30PAIR-1P0MM2 30 pair 1.0 mm²30 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm15.4 mm669 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-30PAIR-1P5MM2 30 pair 1.5 mm²30 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm15.6 mm936 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-50PAIR-0P5MM2 50 pair 0.5 mm²50 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm17.6 mm630 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-50PAIR-0P75MM2 50 pair 0.75 mm²50 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm17.8 mm853 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-50PAIR-1P0MM2 50 pair 1.0 mm²50 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm18.0 mm1075 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-MULTIPAIR-50PAIR-1P5MM2 50 pair 1.5 mm²50 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm18.2 mm1520 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
