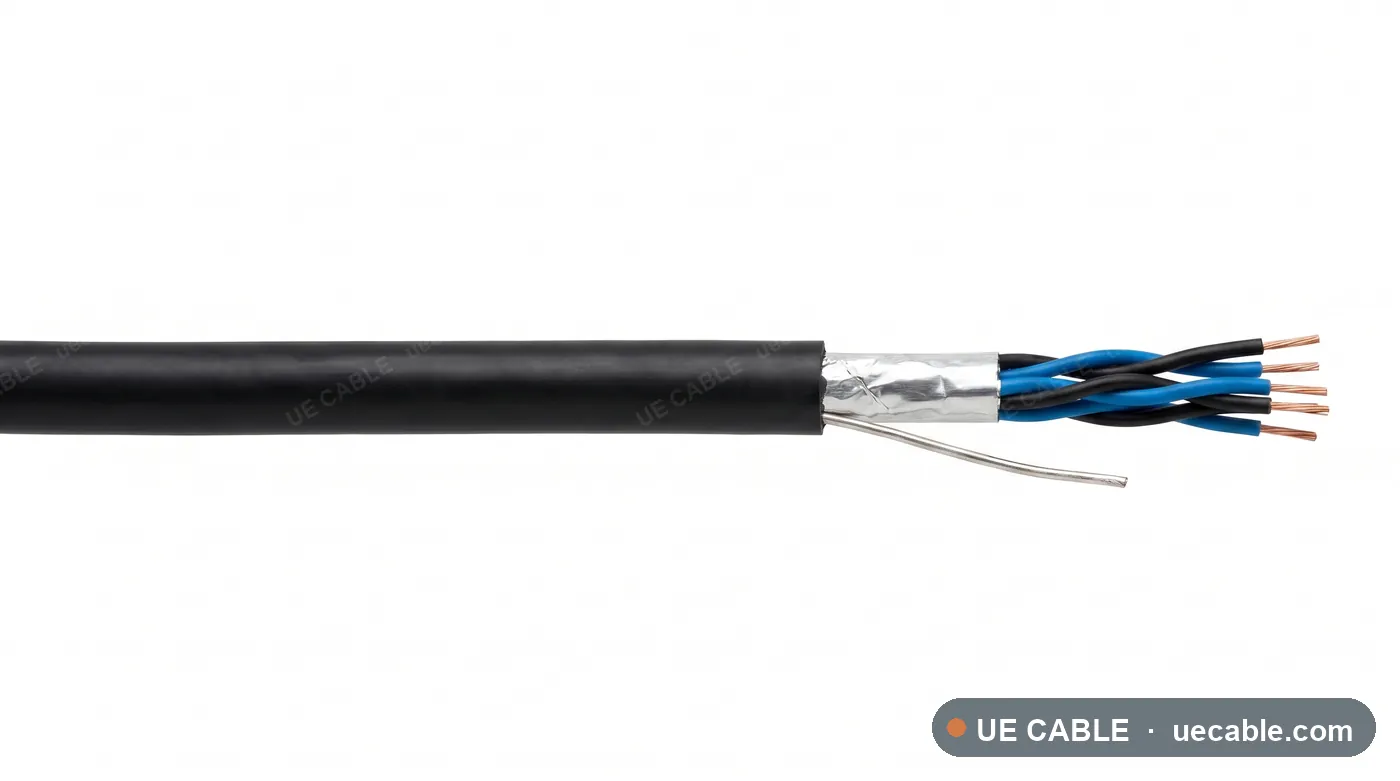

EN 50288-7 RE-2X(St)H SWA Multipair Instrumentation Cable cable construction reference

Overall Screened Armoured

EN 50288-7 RE-2X(St)H SWA Multipair Instrumentation Cable

EN 50288-7 RE-2X(St)H SWA Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining XLPE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and mechanical protection.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
XLPE
Cross-section range
2 pair to 50 pair available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2X(St)H SWA Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining XLPE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and mechanical protection.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • XLPE insulated pairs with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Overall aluminium/polyester tape screen with tinned copper drain wire
  • Inner bedding below armour
  • Galvanized steel wire armour or specified mechanical protection
  • LSZH outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2X(St)H SWA Multipair specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-2PAIR-0P5MM2 2 pair 0.5 mm²2 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm11.7 mm228 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-2PAIR-0P75MM2 2 pair 0.75 mm²2 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm11.9 mm237 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-2PAIR-1P0MM2 2 pair 1.0 mm²2 pair1.0 mm²19.7 Ω/km115 pF/m guide40 uH/ohm12.0 mm246 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-2PAIR-1P5MM2 2 pair 1.5 mm²2 pair1.5 mm²13.43 Ω/km115 pF/m guide40 uH/ohm12.3 mm263 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-5PAIR-0P5MM2 5 pair 0.5 mm²5 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm13.0 mm262 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-5PAIR-0P75MM2 5 pair 0.75 mm²5 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm13.2 mm284 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-5PAIR-1P0MM2 5 pair 1.0 mm²5 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm13.3 mm307 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-5PAIR-1P5MM2 5 pair 1.5 mm²5 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm13.6 mm351 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-10PAIR-0P5MM2 10 pair 0.5 mm²10 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm14.5 mm319 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-10PAIR-0P75MM2 10 pair 0.75 mm²10 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm14.7 mm364 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-10PAIR-1P0MM2 10 pair 1.0 mm²10 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm14.8 mm408 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-10PAIR-1P5MM2 10 pair 1.5 mm²10 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm15.1 mm497 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-15PAIR-0P5MM2 15 pair 0.5 mm²15 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm15.7 mm376 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-15PAIR-0P75MM2 15 pair 0.75 mm²15 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm15.8 mm443 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-15PAIR-1P0MM2 15 pair 1.0 mm²15 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm16.0 mm510 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-15PAIR-1P5MM2 15 pair 1.5 mm²15 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm16.2 mm643 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-20PAIR-0P5MM2 20 pair 0.5 mm²20 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm16.6 mm433 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-20PAIR-0P75MM2 20 pair 0.75 mm²20 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm16.8 mm522 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-20PAIR-1P0MM2 20 pair 1.0 mm²20 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm17.0 mm611 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-20PAIR-1P5MM2 20 pair 1.5 mm²20 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm17.2 mm789 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-30PAIR-0P5MM2 30 pair 0.5 mm²30 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm18.3 mm547 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-30PAIR-0P75MM2 30 pair 0.75 mm²30 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm18.4 mm681 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-30PAIR-1P0MM2 30 pair 1.0 mm²30 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm18.6 mm814 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-30PAIR-1P5MM2 30 pair 1.5 mm²30 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm18.8 mm1081 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-50PAIR-0P5MM2 50 pair 0.5 mm²50 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm20.8 mm775 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-50PAIR-0P75MM2 50 pair 0.75 mm²50 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm21.0 mm998 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-50PAIR-1P0MM2 50 pair 1.0 mm²50 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm21.2 mm1220 kg/km
UEC-EN50288-7-XLPE-LSZH-OS-SWA-MULTIPAIR-50PAIR-1P5MM2 50 pair 1.5 mm²50 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm21.4 mm1665 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
