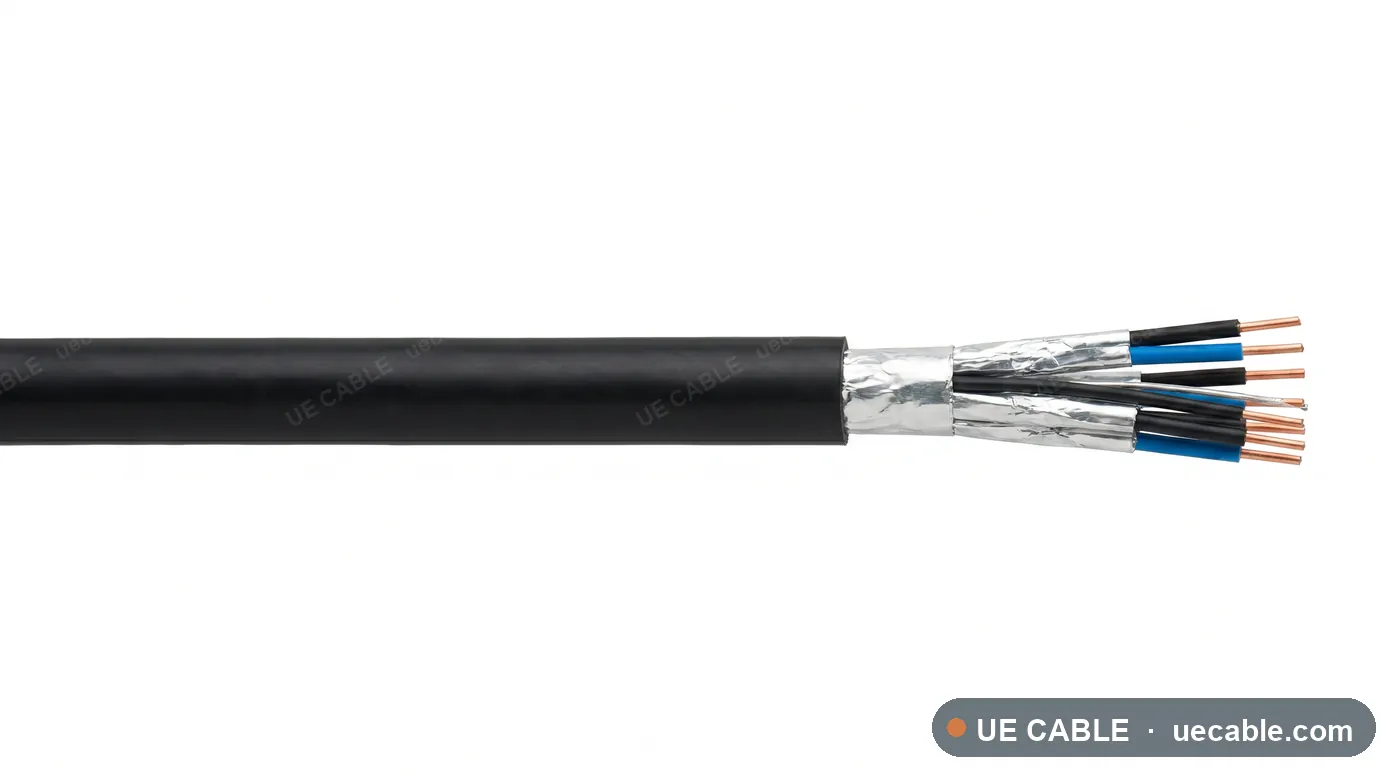

EN 50288-7 RE-Y(St)Y PiMF SWA Multipair Instrumentation Cable cable construction reference

Individual And Overall Screened Armoured

EN 50288-7 RE-Y(St)Y PiMF SWA Multipair Instrumentation Cable

EN 50288-7 RE-Y(St)Y PiMF SWA Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining PVC insulation, PVC sheath, individual pair or triple aluminium/polyester screens plus collective overall screen and mechanical protection.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
PVC
Cross-section range
2 pair to 50 pair available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-Y(St)Y PiMF SWA Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining PVC insulation, PVC sheath, individual pair or triple aluminium/polyester screens plus collective overall screen and mechanical protection.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • PVC insulated pairs with identification to cable schedule
  • Individual pair or triple screen with drain wire where required
  • Individual pair or triple aluminium/polyester screens plus collective overall screen
  • Inner bedding below armour
  • Galvanized steel wire armour or specified mechanical protection
  • PVC outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-Y(St)Y PiMF SWA Multipair specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-2PAIR-0P5MM2 2 pair 0.5 mm²2 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm12.3 mm235 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-2PAIR-0P75MM2 2 pair 0.75 mm²2 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm12.5 mm244 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-2PAIR-1P0MM2 2 pair 1.0 mm²2 pair1.0 mm²19.7 Ω/km115 pF/m guide40 uH/ohm12.7 mm253 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-2PAIR-1P5MM2 2 pair 1.5 mm²2 pair1.5 mm²13.43 Ω/km115 pF/m guide40 uH/ohm12.9 mm271 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-5PAIR-0P5MM2 5 pair 0.5 mm²5 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm13.7 mm278 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-5PAIR-0P75MM2 5 pair 0.75 mm²5 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm13.8 mm300 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-5PAIR-1P0MM2 5 pair 1.0 mm²5 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm14.0 mm322 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-5PAIR-1P5MM2 5 pair 1.5 mm²5 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm14.2 mm367 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-10PAIR-0P5MM2 10 pair 0.5 mm²10 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm15.2 mm348 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-10PAIR-0P75MM2 10 pair 0.75 mm²10 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm15.3 mm393 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-10PAIR-1P0MM2 10 pair 1.0 mm²10 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm15.5 mm437 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-10PAIR-1P5MM2 10 pair 1.5 mm²10 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm15.7 mm526 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-15PAIR-0P5MM2 15 pair 0.5 mm²15 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm16.3 mm419 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-15PAIR-0P75MM2 15 pair 0.75 mm²15 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm16.5 mm485 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-15PAIR-1P0MM2 15 pair 1.0 mm²15 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm16.6 mm552 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-15PAIR-1P5MM2 15 pair 1.5 mm²15 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm16.9 mm686 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-20PAIR-0P5MM2 20 pair 0.5 mm²20 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm17.3 mm489 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-20PAIR-0P75MM2 20 pair 0.75 mm²20 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm17.5 mm578 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-20PAIR-1P0MM2 20 pair 1.0 mm²20 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm17.6 mm667 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-20PAIR-1P5MM2 20 pair 1.5 mm²20 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm17.9 mm845 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-30PAIR-0P5MM2 30 pair 0.5 mm²30 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm18.9 mm630 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-30PAIR-0P75MM2 30 pair 0.75 mm²30 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm19.1 mm764 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-30PAIR-1P0MM2 30 pair 1.0 mm²30 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm19.2 mm897 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-30PAIR-1P5MM2 30 pair 1.5 mm²30 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm19.5 mm1164 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-50PAIR-0P5MM2 50 pair 0.5 mm²50 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm21.5 mm912 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-50PAIR-0P75MM2 50 pair 0.75 mm²50 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm21.7 mm1135 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-50PAIR-1P0MM2 50 pair 1.0 mm²50 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm21.8 mm1357 kg/km
UEC-EN50288-7-PVC-PVC-IOS-SWA-MULTIPAIR-50PAIR-1P5MM2 50 pair 1.5 mm²50 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm22.1 mm1802 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
