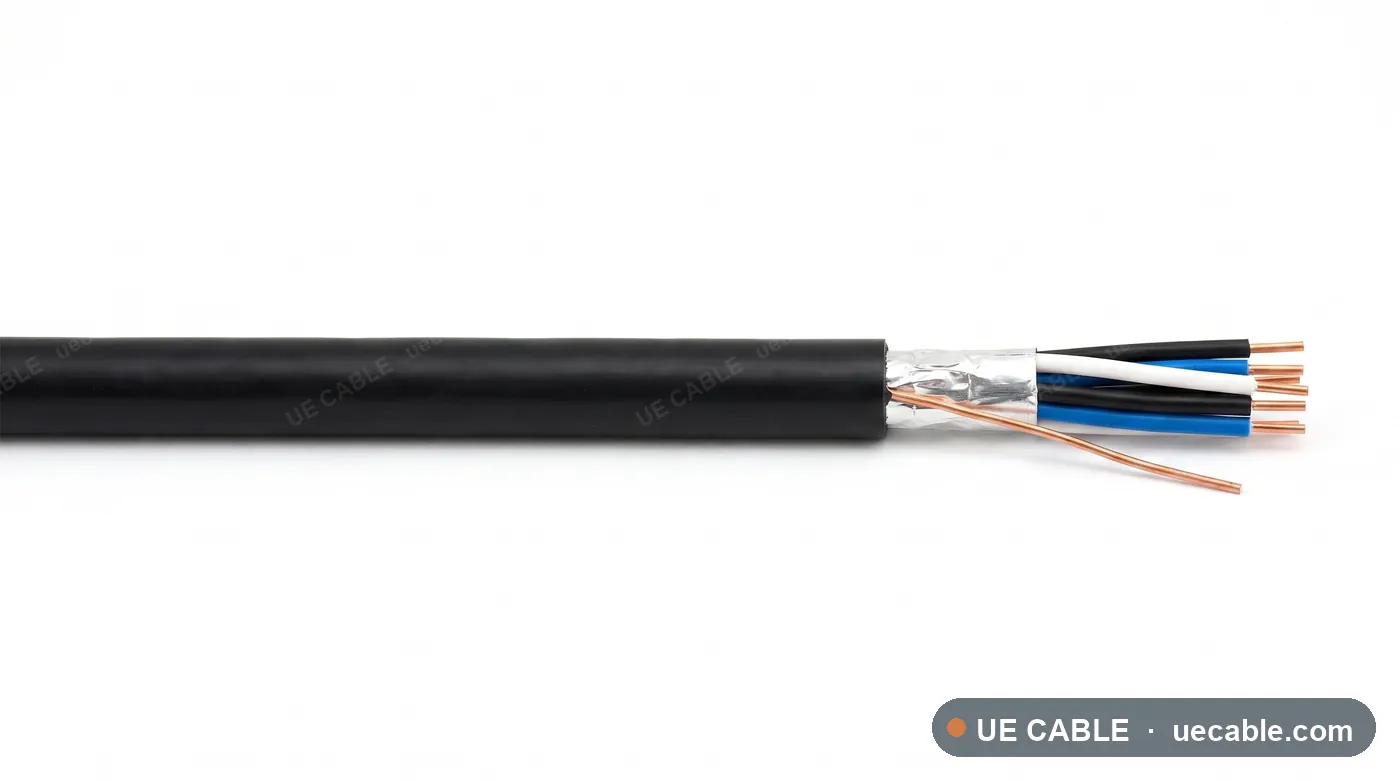

EN 50288-7 RE-2Y(St)Y SWA Multitriple Instrumentation Cable cable construction reference

Overall Screened Armoured

EN 50288-7 RE-2Y(St)Y SWA Multitriple Instrumentation Cable

EN 50288-7 RE-2Y(St)Y SWA Multitriple Instrumentation Cable is an instrumentation cable construction for multi-circuit three-wire instrumentation routes in process plants, combining PE insulation, PVC sheath, overall aluminium/polyester tape screen with tinned copper drain wire and mechanical protection.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
PE
Cross-section range
2 triple to 24 triple available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2Y(St)Y SWA Multitriple Instrumentation Cable is an instrumentation cable construction for multi-circuit three-wire instrumentation routes in process plants, combining PE insulation, PVC sheath, overall aluminium/polyester tape screen with tinned copper drain wire and mechanical protection.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • multi-circuit three-wire instrumentation routes in process plants

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • PE insulated triples with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Overall aluminium/polyester tape screen with tinned copper drain wire
  • Inner bedding below armour
  • Galvanized steel wire armour or specified mechanical protection
  • PVC outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2Y(St)Y SWA Multitriple specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-2TRIPLE-0P5MM2 2 triple 0.5 mm²2 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm11.7 mm233 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-2TRIPLE-0P75MM2 2 triple 0.75 mm²2 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm11.9 mm246 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-2TRIPLE-1P0MM2 2 triple 1.0 mm²2 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm12.1 mm259 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-2TRIPLE-1P5MM2 2 triple 1.5 mm²2 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm12.4 mm286 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-4TRIPLE-0P5MM2 4 triple 0.5 mm²4 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm12.6 mm264 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-4TRIPLE-0P75MM2 4 triple 0.75 mm²4 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm12.8 mm291 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-4TRIPLE-1P0MM2 4 triple 1.0 mm²4 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm13.0 mm318 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-4TRIPLE-1P5MM2 4 triple 1.5 mm²4 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm13.3 mm371 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-8TRIPLE-0P5MM2 8 triple 0.5 mm²8 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm13.8 mm328 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-8TRIPLE-0P75MM2 8 triple 0.75 mm²8 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm14.0 mm381 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-8TRIPLE-1P0MM2 8 triple 1.0 mm²8 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm14.2 mm435 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-8TRIPLE-1P5MM2 8 triple 1.5 mm²8 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm14.5 mm541 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-12TRIPLE-0P5MM2 12 triple 0.5 mm²12 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm14.7 mm391 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-12TRIPLE-0P75MM2 12 triple 0.75 mm²12 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm14.9 mm471 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-12TRIPLE-1P0MM2 12 triple 1.0 mm²12 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm15.1 mm551 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-12TRIPLE-1P5MM2 12 triple 1.5 mm²12 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm15.4 mm712 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-16TRIPLE-0P5MM2 16 triple 0.5 mm²16 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm15.5 mm455 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-16TRIPLE-0P75MM2 16 triple 0.75 mm²16 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm15.7 mm561 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-16TRIPLE-1P0MM2 16 triple 1.0 mm²16 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm15.9 mm668 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-16TRIPLE-1P5MM2 16 triple 1.5 mm²16 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm16.2 mm882 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-20TRIPLE-0P5MM2 20 triple 0.5 mm²20 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm16.2 mm518 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-20TRIPLE-0P75MM2 20 triple 0.75 mm²20 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm16.4 mm652 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-20TRIPLE-1P0MM2 20 triple 1.0 mm²20 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm16.6 mm785 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-20TRIPLE-1P5MM2 20 triple 1.5 mm²20 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm16.9 mm1052 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-24TRIPLE-0P5MM2 24 triple 0.5 mm²24 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm16.9 mm581 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-24TRIPLE-0P75MM2 24 triple 0.75 mm²24 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm17.1 mm742 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-24TRIPLE-1P0MM2 24 triple 1.0 mm²24 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm17.3 mm902 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTITRIPLE-24TRIPLE-1P5MM2 24 triple 1.5 mm²24 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm17.6 mm1222 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
