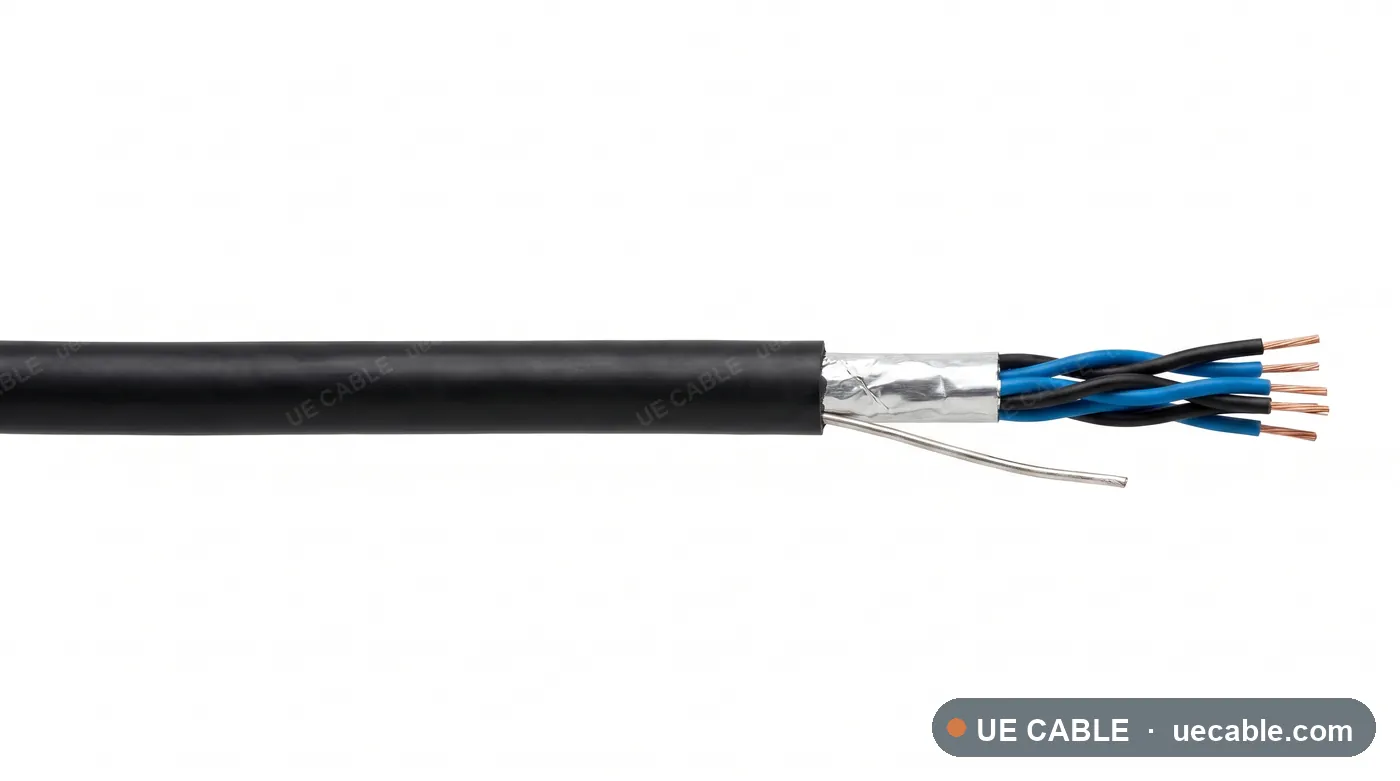

EN 50288-7 RE-2Y(St)Y SWA Multipair Instrumentation Cable cable construction reference

Overall Screened Armoured

EN 50288-7 RE-2Y(St)Y SWA Multipair Instrumentation Cable

EN 50288-7 RE-2Y(St)Y SWA Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining PE insulation, PVC sheath, overall aluminium/polyester tape screen with tinned copper drain wire and mechanical protection.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
PE
Cross-section range
2 pair to 50 pair available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2Y(St)Y SWA Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining PE insulation, PVC sheath, overall aluminium/polyester tape screen with tinned copper drain wire and mechanical protection.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • PE insulated pairs with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Overall aluminium/polyester tape screen with tinned copper drain wire
  • Inner bedding below armour
  • Galvanized steel wire armour or specified mechanical protection
  • PVC outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2Y(St)Y SWA Multipair specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-2PAIR-0P5MM2 2 pair 0.5 mm²2 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm11.5 mm224 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-2PAIR-0P75MM2 2 pair 0.75 mm²2 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm11.7 mm233 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-2PAIR-1P0MM2 2 pair 1.0 mm²2 pair1.0 mm²19.7 Ω/km115 pF/m guide40 uH/ohm11.9 mm242 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-2PAIR-1P5MM2 2 pair 1.5 mm²2 pair1.5 mm²13.43 Ω/km115 pF/m guide40 uH/ohm12.1 mm259 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-5PAIR-0P5MM2 5 pair 0.5 mm²5 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm12.9 mm258 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-5PAIR-0P75MM2 5 pair 0.75 mm²5 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm13.0 mm280 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-5PAIR-1P0MM2 5 pair 1.0 mm²5 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm13.2 mm303 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-5PAIR-1P5MM2 5 pair 1.5 mm²5 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm13.4 mm347 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-10PAIR-0P5MM2 10 pair 0.5 mm²10 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm14.4 mm315 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-10PAIR-0P75MM2 10 pair 0.75 mm²10 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm14.5 mm360 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-10PAIR-1P0MM2 10 pair 1.0 mm²10 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm14.7 mm404 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-10PAIR-1P5MM2 10 pair 1.5 mm²10 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm14.9 mm493 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-15PAIR-0P5MM2 15 pair 0.5 mm²15 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm15.5 mm372 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-15PAIR-0P75MM2 15 pair 0.75 mm²15 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm15.7 mm439 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-15PAIR-1P0MM2 15 pair 1.0 mm²15 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm15.8 mm506 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-15PAIR-1P5MM2 15 pair 1.5 mm²15 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm16.1 mm639 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-20PAIR-0P5MM2 20 pair 0.5 mm²20 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm16.5 mm429 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-20PAIR-0P75MM2 20 pair 0.75 mm²20 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm16.7 mm518 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-20PAIR-1P0MM2 20 pair 1.0 mm²20 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm16.8 mm607 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-20PAIR-1P5MM2 20 pair 1.5 mm²20 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm17.1 mm785 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-30PAIR-0P5MM2 30 pair 0.5 mm²30 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm18.1 mm543 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-30PAIR-0P75MM2 30 pair 0.75 mm²30 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm18.3 mm677 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-30PAIR-1P0MM2 30 pair 1.0 mm²30 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm18.4 mm810 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-30PAIR-1P5MM2 30 pair 1.5 mm²30 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm18.7 mm1077 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-50PAIR-0P5MM2 50 pair 0.5 mm²50 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm20.7 mm771 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-50PAIR-0P75MM2 50 pair 0.75 mm²50 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm20.9 mm994 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-50PAIR-1P0MM2 50 pair 1.0 mm²50 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm21.0 mm1216 kg/km
UEC-EN50288-7-PE-PVC-OS-SWA-MULTIPAIR-50PAIR-1P5MM2 50 pair 1.5 mm²50 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm21.3 mm1661 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
