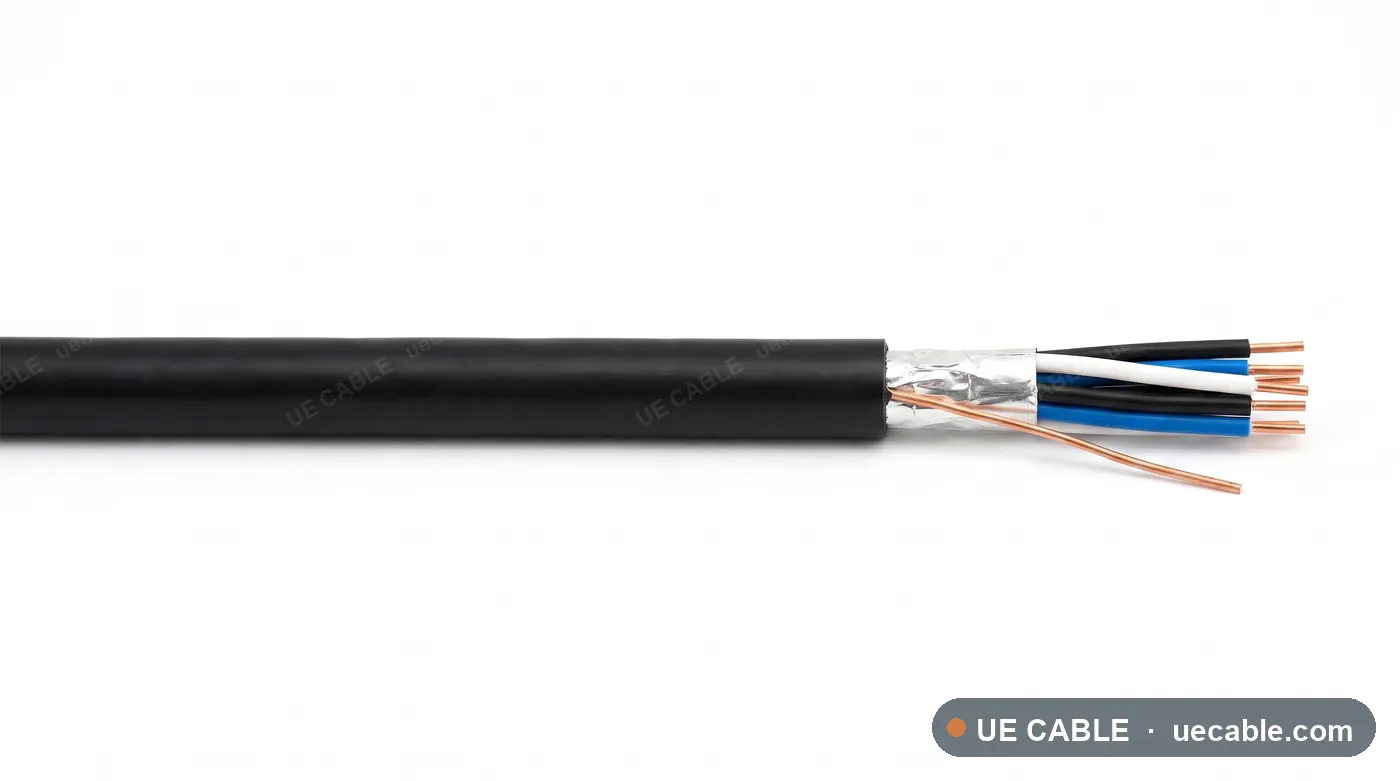

EN 50288-7 RE-2Y(St)H Multitriple Instrumentation Cable

EN 50288-7 RE-2Y(St)H Multitriple Instrumentation Cable is an instrumentation cable construction for multi-circuit three-wire instrumentation routes in process plants, combining PE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
PE
Cross-section range
2 triple to 24 triple available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2Y(St)H Multitriple Instrumentation Cable is an instrumentation cable construction for multi-circuit three-wire instrumentation routes in process plants, combining PE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • multi-circuit three-wire instrumentation routes in process plants

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • PE insulated triples with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Overall aluminium/polyester tape screen with tinned copper drain wire
  • Separator or bedding tape as required by construction
  • standard
  • LSZH outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2Y(St)H Multitriple specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-2TRIPLE-0P5MM2 2 triple 0.5 mm²2 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm8.6 mm92 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-2TRIPLE-0P75MM2 2 triple 0.75 mm²2 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm8.9 mm105 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-2TRIPLE-1P0MM2 2 triple 1.0 mm²2 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm9.0 mm118 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-2TRIPLE-1P5MM2 2 triple 1.5 mm²2 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm9.3 mm145 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-4TRIPLE-0P5MM2 4 triple 0.5 mm²4 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm9.5 mm123 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-4TRIPLE-0P75MM2 4 triple 0.75 mm²4 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm9.7 mm150 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-4TRIPLE-1P0MM2 4 triple 1.0 mm²4 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm9.9 mm177 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-4TRIPLE-1P5MM2 4 triple 1.5 mm²4 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm10.2 mm230 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-8TRIPLE-0P5MM2 8 triple 0.5 mm²8 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm10.7 mm187 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-8TRIPLE-0P75MM2 8 triple 0.75 mm²8 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm11.0 mm240 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-8TRIPLE-1P0MM2 8 triple 1.0 mm²8 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm11.1 mm294 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-8TRIPLE-1P5MM2 8 triple 1.5 mm²8 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm11.4 mm400 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-12TRIPLE-0P5MM2 12 triple 0.5 mm²12 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm11.7 mm250 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-12TRIPLE-0P75MM2 12 triple 0.75 mm²12 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm11.9 mm330 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-12TRIPLE-1P0MM2 12 triple 1.0 mm²12 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm12.1 mm410 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-12TRIPLE-1P5MM2 12 triple 1.5 mm²12 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm12.4 mm571 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-16TRIPLE-0P5MM2 16 triple 0.5 mm²16 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm12.5 mm314 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-16TRIPLE-0P75MM2 16 triple 0.75 mm²16 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm12.7 mm420 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-16TRIPLE-1P0MM2 16 triple 1.0 mm²16 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm12.9 mm527 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-16TRIPLE-1P5MM2 16 triple 1.5 mm²16 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm13.2 mm741 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-20TRIPLE-0P5MM2 20 triple 0.5 mm²20 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm13.2 mm377 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-20TRIPLE-0P75MM2 20 triple 0.75 mm²20 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm13.4 mm511 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-20TRIPLE-1P0MM2 20 triple 1.0 mm²20 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm13.6 mm644 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-20TRIPLE-1P5MM2 20 triple 1.5 mm²20 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm13.9 mm911 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-24TRIPLE-0P5MM2 24 triple 0.5 mm²24 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm13.8 mm440 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-24TRIPLE-0P75MM2 24 triple 0.75 mm²24 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm14.0 mm601 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-24TRIPLE-1P0MM2 24 triple 1.0 mm²24 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm14.2 mm761 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTITRIPLE-24TRIPLE-1P5MM2 24 triple 1.5 mm²24 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm14.5 mm1081 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
