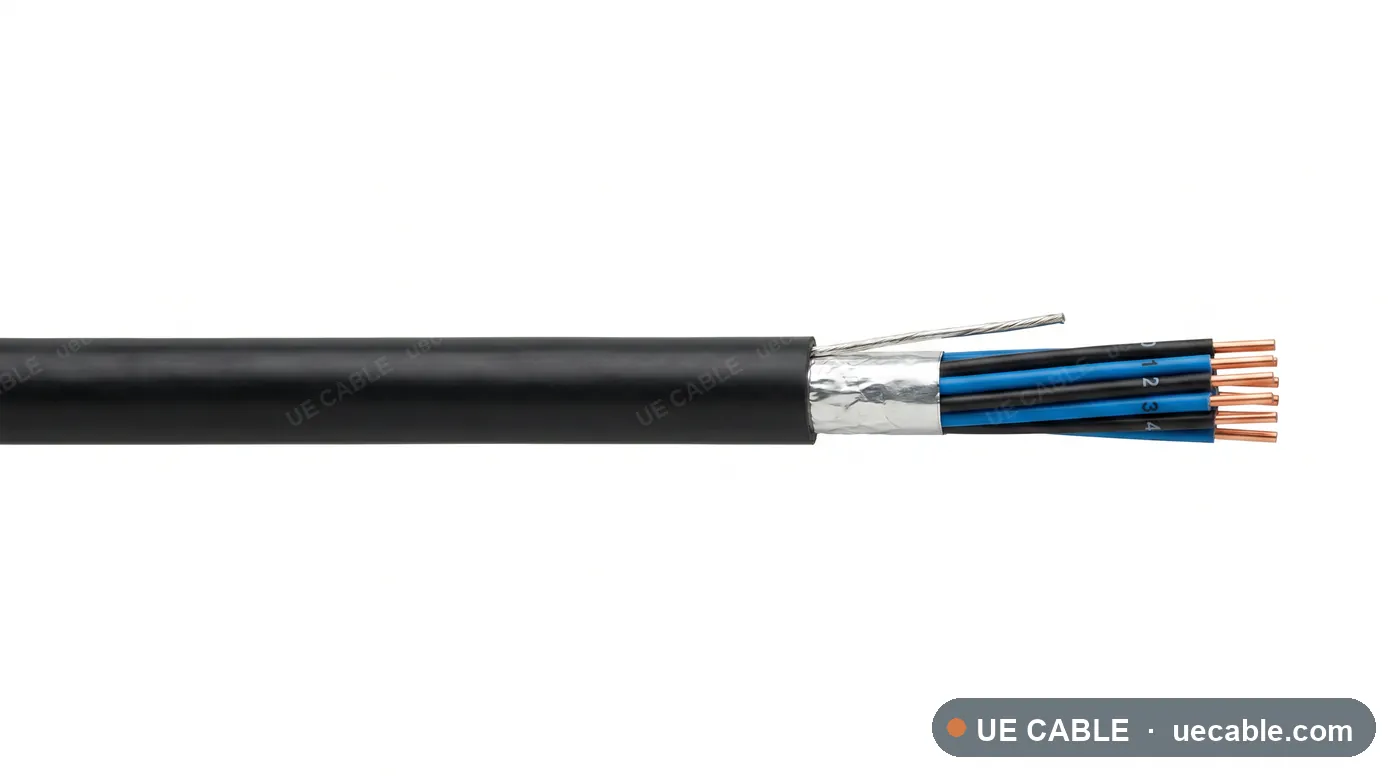

EN 50288-7 RE-2Y(St)H Multicore Instrumentation Cable

EN 50288-7 RE-2Y(St)H Multicore Instrumentation Cable is an instrumentation cable construction for multi-core signal and control circuits where pair twisting is not required, combining PE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
PE
Cross-section range
2 core to 48 core available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2Y(St)H Multicore Instrumentation Cable is an instrumentation cable construction for multi-core signal and control circuits where pair twisting is not required, combining PE insulation, LSZH sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • multi-core signal and control circuits where pair twisting is not required

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • PE insulated cores with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Overall aluminium/polyester tape screen with tinned copper drain wire
  • Separator or bedding tape as required by construction
  • standard
  • LSZH outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 40 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2Y(St)H Multicore specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
  • Mutual capacitanceBy core layup
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CL/R ratioOD guideWeight guide
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-2CORE-0P5MM2 2 core 0.5 mm²2 core0.5 mm²39.39 Ω/km25 uH/ohm6.4 mm74 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-2CORE-0P75MM2 2 core 0.75 mm²2 core0.75 mm²26.8 Ω/km25 uH/ohm6.6 mm78 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-2CORE-1P0MM2 2 core 1.0 mm²2 core1.0 mm²19.7 Ω/km40 uH/ohm6.7 mm83 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-2CORE-1P5MM2 2 core 1.5 mm²2 core1.5 mm²13.43 Ω/km40 uH/ohm6.9 mm92 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-3CORE-0P5MM2 3 core 0.5 mm²3 core0.5 mm²39.39 Ω/km25 uH/ohm6.7 mm81 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-3CORE-0P75MM2 3 core 0.75 mm²3 core0.75 mm²26.8 Ω/km25 uH/ohm6.9 mm88 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-3CORE-1P0MM2 3 core 1.0 mm²3 core1.0 mm²19.7 Ω/km40 uH/ohm7.0 mm94 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-3CORE-1P5MM2 3 core 1.5 mm²3 core1.5 mm²13.43 Ω/km40 uH/ohm7.2 mm108 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-4CORE-0P5MM2 4 core 0.5 mm²4 core0.5 mm²39.39 Ω/km25 uH/ohm7.0 mm88 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-4CORE-0P75MM2 4 core 0.75 mm²4 core0.75 mm²26.8 Ω/km25 uH/ohm7.2 mm97 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-4CORE-1P0MM2 4 core 1.0 mm²4 core1.0 mm²19.7 Ω/km40 uH/ohm7.3 mm106 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-4CORE-1P5MM2 4 core 1.5 mm²4 core1.5 mm²13.43 Ω/km40 uH/ohm7.5 mm123 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-6CORE-0P5MM2 6 core 0.5 mm²6 core0.5 mm²39.39 Ω/km25 uH/ohm7.5 mm102 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-6CORE-0P75MM2 6 core 0.75 mm²6 core0.75 mm²26.8 Ω/km25 uH/ohm7.7 mm115 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-6CORE-1P0MM2 6 core 1.0 mm²6 core1.0 mm²19.7 Ω/km40 uH/ohm7.8 mm128 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-6CORE-1P5MM2 6 core 1.5 mm²6 core1.5 mm²13.43 Ω/km40 uH/ohm8.0 mm155 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-8CORE-0P5MM2 8 core 0.5 mm²8 core0.5 mm²39.39 Ω/km25 uH/ohm7.9 mm116 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-8CORE-0P75MM2 8 core 0.75 mm²8 core0.75 mm²26.8 Ω/km25 uH/ohm8.1 mm133 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-8CORE-1P0MM2 8 core 1.0 mm²8 core1.0 mm²19.7 Ω/km40 uH/ohm8.2 mm151 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-8CORE-1P5MM2 8 core 1.5 mm²8 core1.5 mm²13.43 Ω/km40 uH/ohm8.4 mm187 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-12CORE-0P5MM2 12 core 0.5 mm²12 core0.5 mm²39.39 Ω/km25 uH/ohm8.6 mm143 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-12CORE-0P75MM2 12 core 0.75 mm²12 core0.75 mm²26.8 Ω/km25 uH/ohm8.8 mm170 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-12CORE-1P0MM2 12 core 1.0 mm²12 core1.0 mm²19.7 Ω/km40 uH/ohm8.9 mm197 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-12CORE-1P5MM2 12 core 1.5 mm²12 core1.5 mm²13.43 Ω/km40 uH/ohm9.1 mm250 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-18CORE-0P5MM2 18 core 0.5 mm²18 core0.5 mm²39.39 Ω/km25 uH/ohm9.5 mm185 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-18CORE-0P75MM2 18 core 0.75 mm²18 core0.75 mm²26.8 Ω/km25 uH/ohm9.6 mm225 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-18CORE-1P0MM2 18 core 1.0 mm²18 core1.0 mm²19.7 Ω/km40 uH/ohm9.7 mm265 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-18CORE-1P5MM2 18 core 1.5 mm²18 core1.5 mm²13.43 Ω/km40 uH/ohm9.9 mm345 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-24CORE-0P5MM2 24 core 0.5 mm²24 core0.5 mm²39.39 Ω/km25 uH/ohm10.2 mm227 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-24CORE-0P75MM2 24 core 0.75 mm²24 core0.75 mm²26.8 Ω/km25 uH/ohm10.3 mm280 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-24CORE-1P0MM2 24 core 1.0 mm²24 core1.0 mm²19.7 Ω/km40 uH/ohm10.4 mm334 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-24CORE-1P5MM2 24 core 1.5 mm²24 core1.5 mm²13.43 Ω/km40 uH/ohm10.7 mm440 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-36CORE-0P5MM2 36 core 0.5 mm²36 core0.5 mm²39.39 Ω/km25 uH/ohm11.4 mm310 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-36CORE-0P75MM2 36 core 0.75 mm²36 core0.75 mm²26.8 Ω/km25 uH/ohm11.5 mm390 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-36CORE-1P0MM2 36 core 1.0 mm²36 core1.0 mm²19.7 Ω/km40 uH/ohm11.6 mm470 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-36CORE-1P5MM2 36 core 1.5 mm²36 core1.5 mm²13.43 Ω/km40 uH/ohm11.8 mm631 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-48CORE-0P5MM2 48 core 0.5 mm²48 core0.5 mm²39.39 Ω/km25 uH/ohm12.4 mm394 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-48CORE-0P75MM2 48 core 0.75 mm²48 core0.75 mm²26.8 Ω/km25 uH/ohm12.5 mm500 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-48CORE-1P0MM2 48 core 1.0 mm²48 core1.0 mm²19.7 Ω/km40 uH/ohm12.6 mm607 kg/km
UEC-EN50288-7-PE-LSZH-OS-MULTICORE-48CORE-1P5MM2 48 core 1.5 mm²48 core1.5 mm²13.43 Ω/km40 uH/ohm12.8 mm821 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
