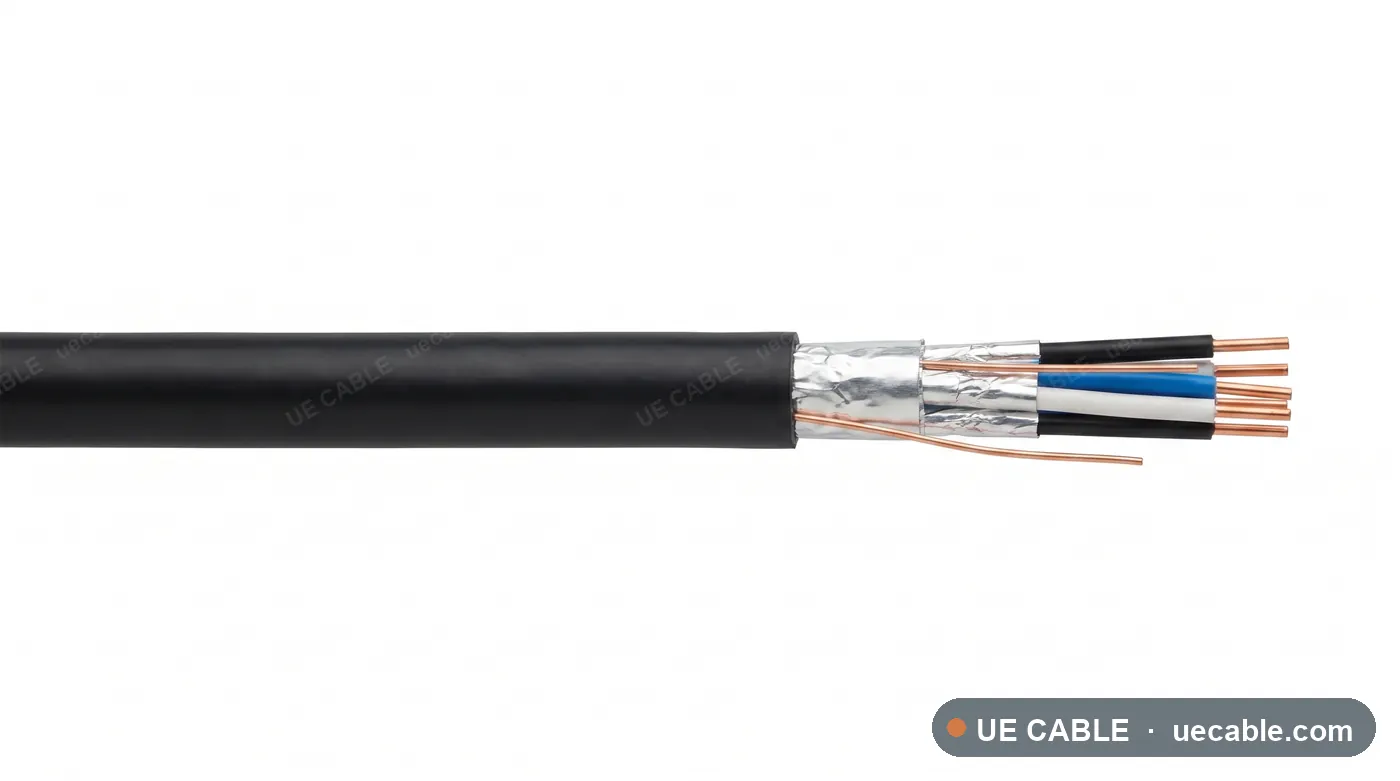

EN 50288-7 RE-2Y(St)H PiMF SWA Multitriple Instrumentation Cable cable construction reference

Individual And Overall Screened Armoured

EN 50288-7 RE-2Y(St)H PiMF SWA Multitriple Instrumentation Cable

EN 50288-7 RE-2Y(St)H PiMF SWA Multitriple Instrumentation Cable is an instrumentation cable construction for multi-circuit three-wire instrumentation routes in process plants, combining PE insulation, LSZH sheath, individual pair or triple aluminium/polyester screens plus collective overall screen and mechanical protection.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
PE
Cross-section range
2 triple to 24 triple available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2Y(St)H PiMF SWA Multitriple Instrumentation Cable is an instrumentation cable construction for multi-circuit three-wire instrumentation routes in process plants, combining PE insulation, LSZH sheath, individual pair or triple aluminium/polyester screens plus collective overall screen and mechanical protection.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • multi-circuit three-wire instrumentation routes in process plants

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • PE insulated triples with identification to cable schedule
  • Individual pair or triple screen with drain wire where required
  • Individual pair or triple aluminium/polyester screens plus collective overall screen
  • Inner bedding below armour
  • Galvanized steel wire armour or specified mechanical protection
  • LSZH outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2Y(St)H PiMF SWA Multitriple specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-2TRIPLE-0P5MM2 2 triple 0.5 mm²2 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm12.6 mm248 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-2TRIPLE-0P75MM2 2 triple 0.75 mm²2 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm12.9 mm261 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-2TRIPLE-1P0MM2 2 triple 1.0 mm²2 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm13.0 mm275 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-2TRIPLE-1P5MM2 2 triple 1.5 mm²2 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm13.3 mm302 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-4TRIPLE-0P5MM2 4 triple 0.5 mm²4 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm13.5 mm285 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-4TRIPLE-0P75MM2 4 triple 0.75 mm²4 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm13.7 mm312 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-4TRIPLE-1P0MM2 4 triple 1.0 mm²4 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm13.9 mm339 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-4TRIPLE-1P5MM2 4 triple 1.5 mm²4 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm14.2 mm392 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-8TRIPLE-0P5MM2 8 triple 0.5 mm²8 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm14.7 mm359 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-8TRIPLE-0P75MM2 8 triple 0.75 mm²8 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm15.0 mm413 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-8TRIPLE-1P0MM2 8 triple 1.0 mm²8 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm15.1 mm466 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-8TRIPLE-1P5MM2 8 triple 1.5 mm²8 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm15.4 mm573 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-12TRIPLE-0P5MM2 12 triple 0.5 mm²12 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm15.7 mm434 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-12TRIPLE-0P75MM2 12 triple 0.75 mm²12 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm15.9 mm514 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-12TRIPLE-1P0MM2 12 triple 1.0 mm²12 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm16.1 mm594 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-12TRIPLE-1P5MM2 12 triple 1.5 mm²12 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm16.4 mm754 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-16TRIPLE-0P5MM2 16 triple 0.5 mm²16 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm16.5 mm508 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-16TRIPLE-0P75MM2 16 triple 0.75 mm²16 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm16.7 mm615 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-16TRIPLE-1P0MM2 16 triple 1.0 mm²16 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm16.9 mm721 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-16TRIPLE-1P5MM2 16 triple 1.5 mm²16 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm17.2 mm935 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-20TRIPLE-0P5MM2 20 triple 0.5 mm²20 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm17.2 mm582 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-20TRIPLE-0P75MM2 20 triple 0.75 mm²20 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm17.4 mm716 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-20TRIPLE-1P0MM2 20 triple 1.0 mm²20 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm17.6 mm849 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-20TRIPLE-1P5MM2 20 triple 1.5 mm²20 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm17.9 mm1116 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-24TRIPLE-0P5MM2 24 triple 0.5 mm²24 triple0.5 mm²39.39 Ω/km75 pF/m guide25 uH/ohm17.8 mm656 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-24TRIPLE-0P75MM2 24 triple 0.75 mm²24 triple0.75 mm²26.8 Ω/km75 pF/m guide25 uH/ohm18.0 mm816 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-24TRIPLE-1P0MM2 24 triple 1.0 mm²24 triple1.0 mm²19.7 Ω/km85 pF/m guide40 uH/ohm18.2 mm977 kg/km
UEC-EN50288-7-PE-LSZH-IOS-SWA-MULTITRIPLE-24TRIPLE-1P5MM2 24 triple 1.5 mm²24 triple1.5 mm²13.43 Ω/km85 pF/m guide40 uH/ohm18.5 mm1297 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
