Application And Installation
Bare copper conductors for grounding, earthing, bonding, overhead and electrical connection applications.
- Earthing
- Grounding
- Bonding
- Electrical connections
Earthing conductor
Bare Copper Conductors
Bare copper conductors for grounding, earthing, bonding, overhead and electrical connection applications.
Cable construction
Bare Copper Conductors
Technical reference for cable construction, sheath finish, screening and cross-section review.
Cable Construction
- Plain or tinned copper strands
- Solid, stranded or flexible conductor forms
- Bare conductor without insulation
- Round or customer-specified conductor formats
Standards And Voltage Classes
- IEC 60228
- ASTM B3
- ASTM B8
- BS EN conductor standards
Conductor Selection Data
| Conductor family | Annealed stranded bare copper, hard drawn bare copper and tinned copper bonding conductors |
|---|---|
| Material | Plain annealed copper, hard drawn copper or tinned copper |
| Application | Earthing, grounding, bonding, lightning protection, overhead copper conductor and electrical connection |
| Size range | 1.5 mm² to 500 mm² depending on conductor family |
| Technical data | Conductor size, stranding, diameter, resistance at 20 °C, rated strength, weight and specification reference |
| Standards | EN 13602, IEC 60228, BS 7884, ASTM B3, ASTM B8 and ASTM B33 references |
Find The Exact Cable Size
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Conductor Families And Size References
Conductor pages are organised by conductor family, material, standard reference and route duty. Open a conductor family page to compare exact size, stranding, resistance, diameter, strength and weight references.
Annealed stranded bare copper conductor
Bare Copper Class 2 Annealed Stranded Conductor
Bare Copper Class 2 Annealed Stranded Conductor is a bare conductor reference for earthing systems, grounding grids, bonding conductors, using class 2 annealed stranded copper conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →
Hard drawn stranded bare copper conductor
Hard Drawn Bare Copper Class 2 Conductor
Hard Drawn Bare Copper Class 2 Conductor is a bare conductor reference for overhead line conductors, earthing conductors on insulators, distribution line connections, using hard drawn copper conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →

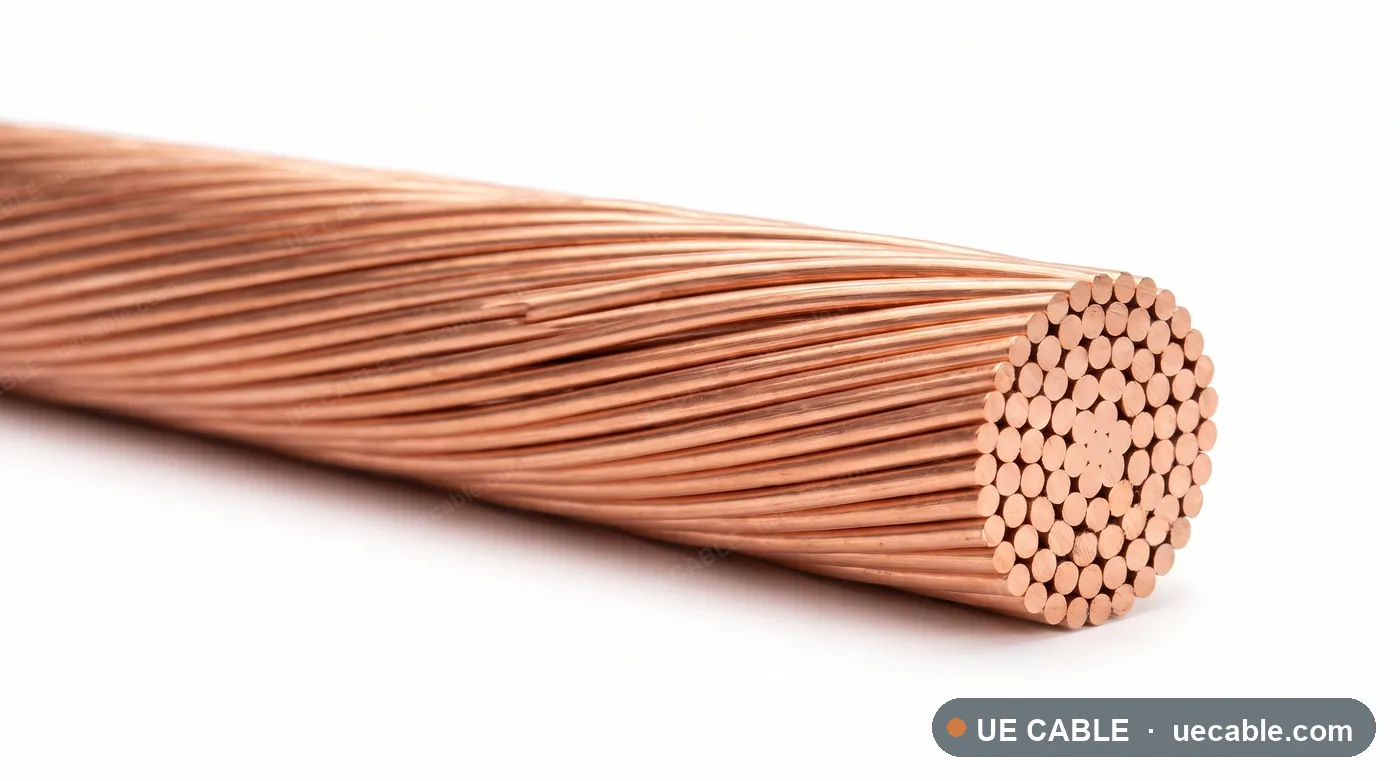

Tinned stranded bonding conductor
Tinned Copper Stranded Bonding Conductor
Tinned Copper Stranded Bonding Conductor is a bare conductor reference for bonding links, marine earthing, corrosion-exposed grounding, using tinned stranded copper conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →Conductor Reference Names
Available Options
- Bare copper conductor
- Class 2 copper conductor
- Hard drawn copper conductor
- Tinned copper conductor
- Copper earth wire
- Copper bonding conductor
FAQ
Bare Copper Conductors — common questions
What are bare copper conductors?
Bare copper conductors for grounding, earthing, bonding, overhead and electrical connection applications. They are built to IEC 60228, ASTM B3, ASTM B8, BS EN conductor standards.
Which standards do bare copper conductors comply with?
UE Cable bare copper conductors are manufactured and tested to IEC 60228, ASTM B3, ASTM B8, BS EN conductor standards. The exact standard for each construction is stated on its specification sheet.
What sizes and configurations are available?
3 construction families are catalogued under bare copper conductors, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Can bare copper conductors be custom-made, and how fast is a quote?
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
