Aluminium cable
Aluminium conductor catalog for AAC, AAAC, ACSR and ACAR overhead conductors used in utility distribution, transmission and rail overhead line routes.
Aluminium conductor catalog for AAC, AAAC, ACSR and ACAR overhead conductors used in utility distribution, transmission and rail overhead line routes.
| Conductor family | AAC, AAAC, ACSR and ACAR bare aluminium conductor references |
|---|---|
| Material | Hard drawn aluminium, aluminium alloy, galvanized steel reinforced aluminium or alloy reinforced aluminium |
| Application | Urban distribution, long-span routes, transmission lines, rail overhead line routes and utility reconductoring |
| Construction | Concentric stranded bare conductor |
| Size range | 16 mm² to 630 mm² depending on conductor family |
| Technical data | Conductor size, stranding, diameter, resistance at 20 °C, rated strength, weight and specification reference |
| Standards | IEC 61089, ASTM B231, ASTM B232, ASTM B399 and ASTM B524 references |
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Conductor pages are organised by conductor family, material, standard reference and route duty. Open a conductor family page to compare exact size, stranding, resistance, diameter, strength and weight references.
All aluminium conductor
AAC All Aluminium Conductor is a bare conductor reference for urban overhead distribution, short-span utility routes, coastal distribution, using hard drawn aluminium conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →

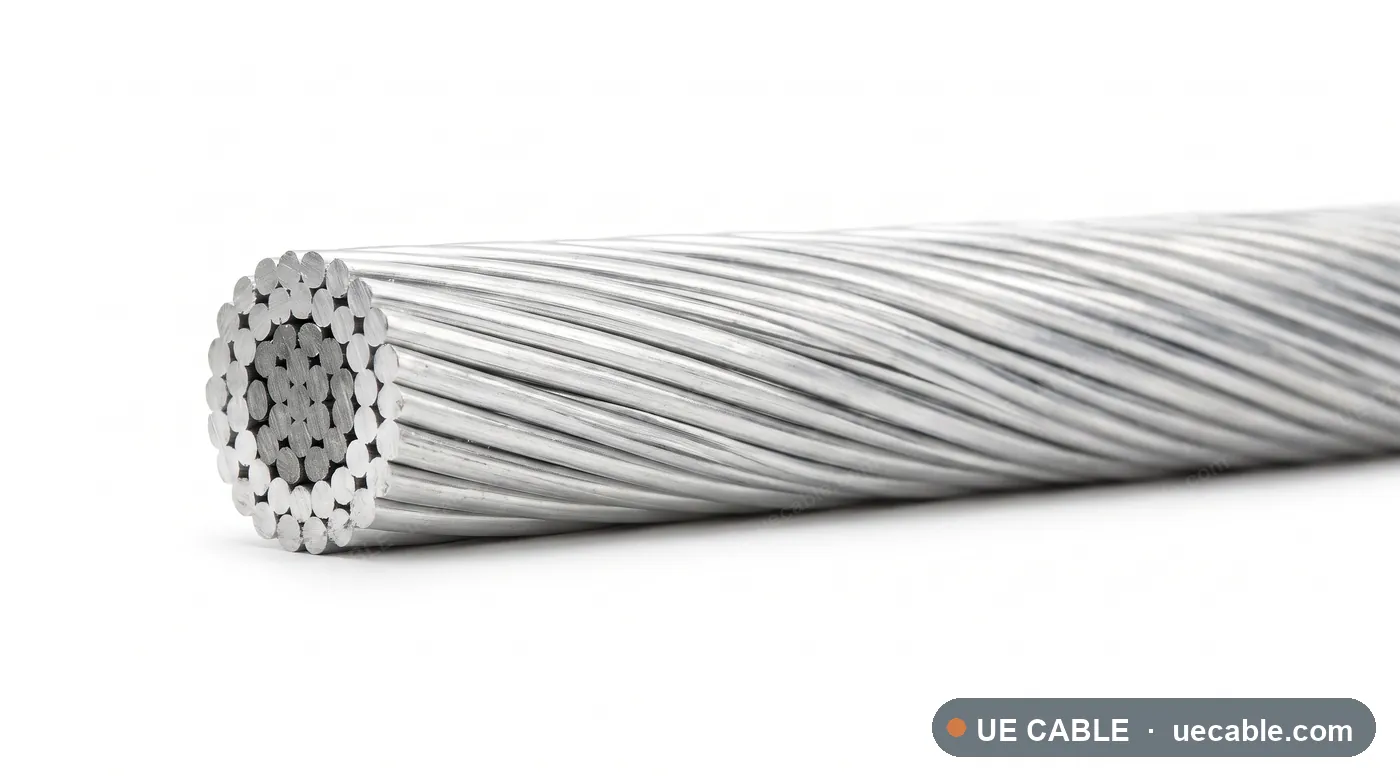

All aluminium alloy conductor
AAAC All Aluminium Alloy Conductor is a bare conductor reference for distribution feeders, longer-span overhead routes, corrosion-prone utility networks, using aluminium alloy conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →
Steel reinforced aluminium conductor
ACSR Aluminium Conductor Steel Reinforced is a bare conductor reference for transmission lines, distribution lines, long-span overhead routes, using aluminium conductor with galvanized steel core with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →
Alloy reinforced aluminium conductor
ACAR Aluminium Conductor Alloy Reinforced is a bare conductor reference for transmission upgrades, distribution feeders, higher-strength aluminium routes, using aluminium conductor with aluminium alloy core with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →FAQ
Aluminium conductor catalog for AAC, AAAC, ACSR and ACAR overhead conductors used in utility distribution, transmission and rail overhead line routes. They are built to IEC 60228, IEC 61089, ASTM conductor standards.
UE Cable aluminium conductor cables are manufactured and tested to IEC 60228, IEC 61089, ASTM conductor standards. The exact standard for each construction is stated on its specification sheet.
4 construction families are catalogued under aluminium conductor cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
