Application And Installation
Overhead line conductors for transmission, distribution, rail and utility infrastructure.
- Transmission lines
- Distribution lines
- Rail electrification
- Utility networks
OHL conductor
Overhead Line Conductors
Overhead line conductors for transmission, distribution, rail and utility infrastructure.
Cable construction
Overhead Line Conductors
Technical reference for cable construction, sheath finish, screening and cross-section review.
Cable Construction
- AAC, AAAC, ACSR, ACAR or galvanized steel overhead conductor
- Concentric stranded conductor construction
- Bare conductor surface for overhead line installation
- Drum supply for utility line construction
Standards And Voltage Classes
- IEC 61089
- ASTM B232
- EN conductor standards
Conductor Selection Data
| Conductor family | AAC, AAAC, ACSR, ACAR and galvanized steel overhead earth wire |
|---|---|
| Material | Aluminium, aluminium alloy, steel reinforced aluminium, alloy reinforced aluminium or galvanized steel |
| Application | Transmission, distribution, rail electrification and utility networks |
| Technical data | Conductor size, stranding, diameter, resistance at 20 °C, rated strength, weight and specification reference |
| Standards | IEC 61089, ASTM B231, ASTM B232, ASTM B399, ASTM B524 and IEC 60888 references |
Find The Exact Cable Size
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Conductor Families And Size References
Conductor pages are organised by conductor family, material, standard reference and route duty. Open a conductor family page to compare exact size, stranding, resistance, diameter, strength and weight references.
All aluminium conductor
AAC All Aluminium Conductor
AAC All Aluminium Conductor is a bare conductor reference for urban overhead distribution, short-span utility routes, coastal distribution, using hard drawn aluminium conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →
All aluminium alloy conductor
AAAC All Aluminium Alloy Conductor
AAAC All Aluminium Alloy Conductor is a bare conductor reference for distribution feeders, longer-span overhead routes, corrosion-prone utility networks, using aluminium alloy conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →
Steel reinforced aluminium conductor
ACSR Aluminium Conductor Steel Reinforced
ACSR Aluminium Conductor Steel Reinforced is a bare conductor reference for transmission lines, distribution lines, long-span overhead routes, using aluminium conductor with galvanized steel core with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →
Alloy reinforced aluminium conductor
ACAR Aluminium Conductor Alloy Reinforced
ACAR Aluminium Conductor Alloy Reinforced is a bare conductor reference for transmission upgrades, distribution feeders, higher-strength aluminium routes, using aluminium conductor with aluminium alloy core with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →
Overhead earth wire

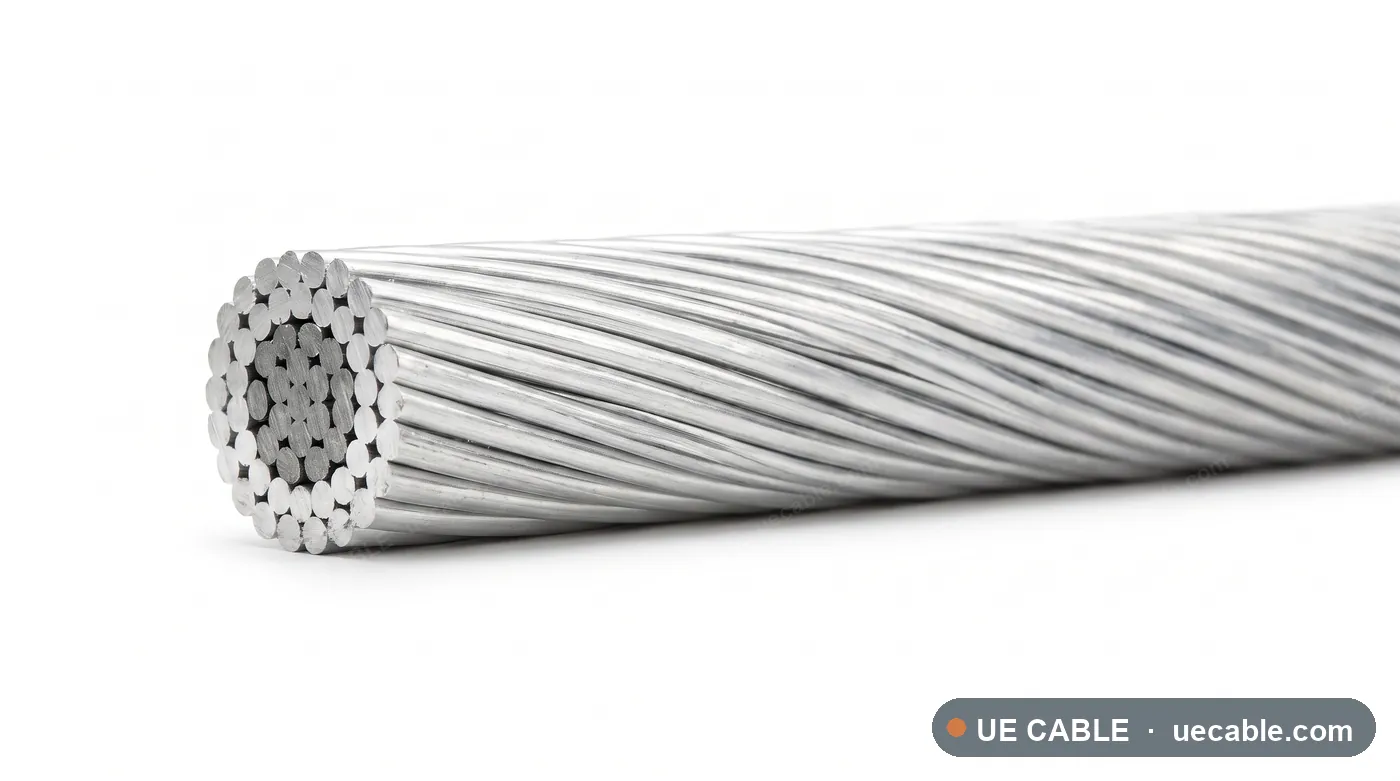

Galvanized Steel Overhead Earth Wire
Galvanized Steel Overhead Earth Wire is a bare conductor reference for overhead earth wire, shield wire, transmission line protection, using galvanized steel earth wire conductor with conductor-size-specific resistance, diameter, weight and rated-strength data.
View technical data →Conductor Reference Names
Available Options
- AAC conductor
- AAAC conductor
- ACSR conductor
- ACAR conductor
- Overhead earth wire
- Transmission line conductor
FAQ
Overhead Line Conductors — common questions
What are overhead line conductors?
Overhead line conductors for transmission, distribution, rail and utility infrastructure. They are built to IEC 61089, ASTM B232, EN conductor standards.
Which standards do overhead line conductors comply with?
UE Cable overhead line conductors are manufactured and tested to IEC 61089, ASTM B232, EN conductor standards. The exact standard for each construction is stated on its specification sheet.
What sizes and configurations are available?
5 construction families are catalogued under overhead line conductors, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Can overhead line conductors be custom-made, and how fast is a quote?
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
