Short-reach high-speed data-center cable

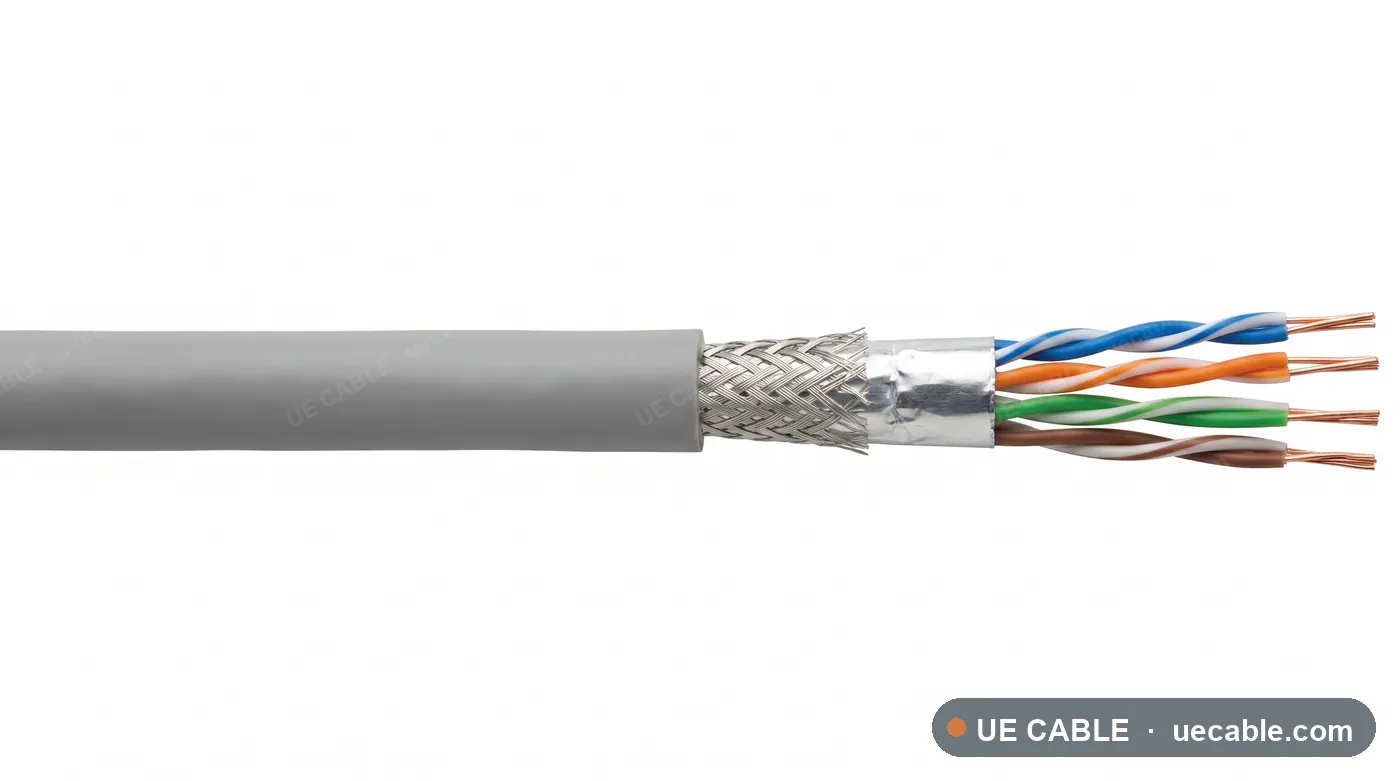

Cat8.1 S/FTP Data Center LAN Cable is a structured cabling product for Data-center switch links, High-speed server rooms, Short channel copper links, using Cat8.1, 4 x 2 pair, S/FTP shielding and jacket options including LSZH CPR Cca indoor jacket or PVC CMP plenum jacket.
Cable Type Data
Cat8.1 S/FTP Data Center LAN Cable is a structured cabling product for Data-center switch links, High-speed server rooms, Short channel copper links, using Cat8.1, 4 x 2 pair, S/FTP shielding and jacket options including LSZH CPR Cca indoor jacket or PVC CMP plenum jacket.
Specifications
Each row below is a complete specification sheet — 2 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact cable specification sheet. Confirm channel class, installation route, fire rating, shielding, colour, packing length and certification test requirements before quotation.
| Cable reference | Conductor | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| Cat8.1 S/FTP LAN Cat8.1 4 x 2 pair AWG22/1 solid bare copper S/FTP PVC CMP plenum jacket | AWG22/1 solid bare copper | 5.9 Ω/100 m max | 9.4 mm |
| Cat8.1 S/FTP LAN Cat8.1 4 x 2 pair AWG24/1 solid bare copper S/FTP PVC CMP plenum jacket | AWG24/1 solid bare copper | 9.5 Ω/100 m max | 9.0 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
