CY Screened Flexible Control Cable

CY Screened Flexible Control Cable is a flexible industrial control cable construction for measurement circuits, machine tools, conveyors, using class 5 flexible copper conductor, pvc, tinned copper wire braid screen and pvc sheath.

Standard: VDE 0250
Voltage class: 300/500 V
Conductor: Class 5 flexible copper conductor
Insulation / jacket: PVC sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Measurement circuits
Machine tools
Conveyors
Automation control cabinets

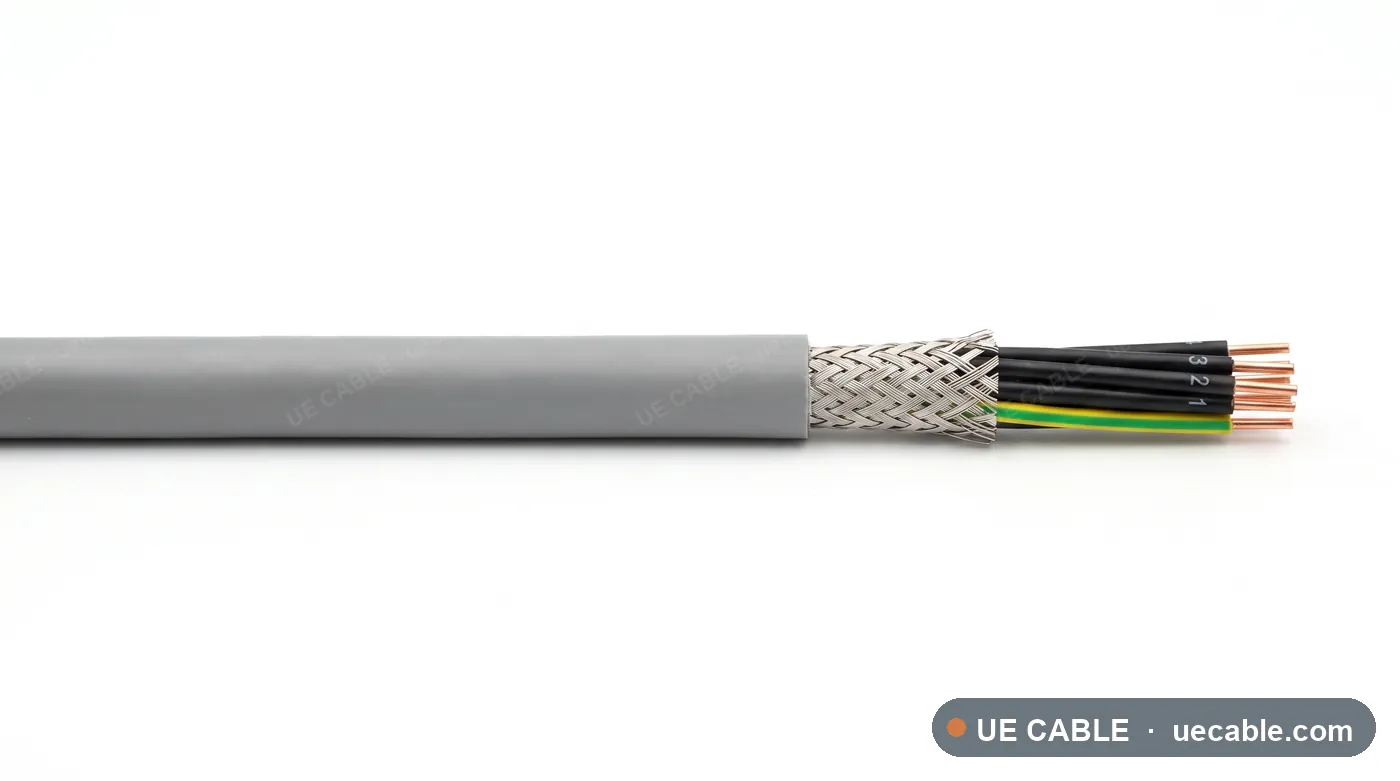

Cable Construction

Class 5 flexible copper conductor
PVC insulation
Numbered or color-coded core identification
Tinned copper wire braid screen
PVC sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 90 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

EMC-sensitive control specification references

Each row is an exact flexible-control cable specification sheet. Shared conductor class, insulation, screen/protection, sheath and motion duty are listed above.

Service classEMC-sensitive control
EMC / protectionTinned copper wire braid screen

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	OD guide
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 0.5 mm²	2 core	0.5 mm²	39.0 Ω/km	9.5 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 0.75 mm²	2 core	0.75 mm²	26.0 Ω/km	9.8 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 1.0 mm²	2 core	1.0 mm²	19.5 Ω/km	10.1 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 1.5 mm²	2 core	1.5 mm²	13.3 Ω/km	10.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 2.5 mm²	2 core	2.5 mm²	7.98 Ω/km	11.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 4 mm²	2 core	4 mm²	4.95 Ω/km	12.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 6 mm²	2 core	6 mm²	3.30 Ω/km	13.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 10 mm²	2 core	10 mm²	1.91 Ω/km	14.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 2 core 16 mm²	2 core	16 mm²	1.15 Ω/km	16.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 0.5 mm²	3 core	0.5 mm²	39.0 Ω/km	9.9 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 0.75 mm²	3 core	0.75 mm²	26.0 Ω/km	10.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 1.0 mm²	3 core	1.0 mm²	19.5 Ω/km	10.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 1.5 mm²	3 core	1.5 mm²	13.3 Ω/km	11.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 2.5 mm²	3 core	2.5 mm²	7.98 Ω/km	11.8 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 4 mm²	3 core	4 mm²	4.95 Ω/km	12.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 6 mm²	3 core	6 mm²	3.30 Ω/km	13.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 10 mm²	3 core	10 mm²	1.91 Ω/km	15.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core 16 mm²	3 core	16 mm²	1.15 Ω/km	17.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 0.5 mm²	3 core with PE	0.5 mm²	39.0 Ω/km	9.9 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 0.75 mm²	3 core with PE	0.75 mm²	26.0 Ω/km	10.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 1.0 mm²	3 core with PE	1.0 mm²	19.5 Ω/km	10.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 1.5 mm²	3 core with PE	1.5 mm²	13.3 Ω/km	11.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 2.5 mm²	3 core with PE	2.5 mm²	7.98 Ω/km	11.8 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 4 mm²	3 core with PE	4 mm²	4.95 Ω/km	12.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 6 mm²	3 core with PE	6 mm²	3.30 Ω/km	13.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 10 mm²	3 core with PE	10 mm²	1.91 Ω/km	15.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 3 core with PE 16 mm²	3 core with PE	16 mm²	1.15 Ω/km	17.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 0.5 mm²	4 core	0.5 mm²	39.0 Ω/km	10.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 0.75 mm²	4 core	0.75 mm²	26.0 Ω/km	10.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 1.0 mm²	4 core	1.0 mm²	19.5 Ω/km	11.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 1.5 mm²	4 core	1.5 mm²	13.3 Ω/km	11.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 2.5 mm²	4 core	2.5 mm²	7.98 Ω/km	12.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 4 mm²	4 core	4 mm²	4.95 Ω/km	13.1 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 6 mm²	4 core	6 mm²	3.30 Ω/km	14.1 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 10 mm²	4 core	10 mm²	1.91 Ω/km	15.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core 16 mm²	4 core	16 mm²	1.15 Ω/km	17.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 0.5 mm²	4 core with PE	0.5 mm²	39.0 Ω/km	10.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 0.75 mm²	4 core with PE	0.75 mm²	26.0 Ω/km	10.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 1.0 mm²	4 core with PE	1.0 mm²	19.5 Ω/km	11.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 1.5 mm²	4 core with PE	1.5 mm²	13.3 Ω/km	11.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 2.5 mm²	4 core with PE	2.5 mm²	7.98 Ω/km	12.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 4 mm²	4 core with PE	4 mm²	4.95 Ω/km	13.1 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 6 mm²	4 core with PE	6 mm²	3.30 Ω/km	14.1 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 10 mm²	4 core with PE	10 mm²	1.91 Ω/km	15.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 4 core with PE 16 mm²	4 core with PE	16 mm²	1.15 Ω/km	17.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 0.5 mm²	5 core with PE	0.5 mm²	39.0 Ω/km	10.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 0.75 mm²	5 core with PE	0.75 mm²	26.0 Ω/km	11.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 1.0 mm²	5 core with PE	1.0 mm²	19.5 Ω/km	11.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 1.5 mm²	5 core with PE	1.5 mm²	13.3 Ω/km	11.8 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 2.5 mm²	5 core with PE	2.5 mm²	7.98 Ω/km	12.5 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 4 mm²	5 core with PE	4 mm²	4.95 Ω/km	13.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 6 mm²	5 core with PE	6 mm²	3.30 Ω/km	14.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 10 mm²	5 core with PE	10 mm²	1.91 Ω/km	15.9 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 5 core with PE 16 mm²	5 core with PE	16 mm²	1.15 Ω/km	17.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 0.5 mm²	7 core	0.5 mm²	39.0 Ω/km	11.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 0.75 mm²	7 core	0.75 mm²	26.0 Ω/km	11.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 1.0 mm²	7 core	1.0 mm²	19.5 Ω/km	11.9 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 1.5 mm²	7 core	1.5 mm²	13.3 Ω/km	12.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 2.5 mm²	7 core	2.5 mm²	7.98 Ω/km	13.1 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 4 mm²	7 core	4 mm²	4.95 Ω/km	14.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 6 mm²	7 core	6 mm²	3.30 Ω/km	15.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 10 mm²	7 core	10 mm²	1.91 Ω/km	16.5 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 7 core 16 mm²	7 core	16 mm²	1.15 Ω/km	18.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 0.5 mm²	12 core	0.5 mm²	39.0 Ω/km	12.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 0.75 mm²	12 core	0.75 mm²	26.0 Ω/km	12.8 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 1.0 mm²	12 core	1.0 mm²	19.5 Ω/km	13.1 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 1.5 mm²	12 core	1.5 mm²	13.3 Ω/km	13.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 2.5 mm²	12 core	2.5 mm²	7.98 Ω/km	14.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 4 mm²	12 core	4 mm²	4.95 Ω/km	15.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 6 mm²	12 core	6 mm²	3.30 Ω/km	16.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 10 mm²	12 core	10 mm²	1.91 Ω/km	17.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 12 core 16 mm²	12 core	16 mm²	1.15 Ω/km	19.5 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 0.5 mm²	18 core	0.5 mm²	39.0 Ω/km	13.6 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 0.75 mm²	18 core	0.75 mm²	26.0 Ω/km	13.9 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 1.0 mm²	18 core	1.0 mm²	19.5 Ω/km	14.2 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 1.5 mm²	18 core	1.5 mm²	13.3 Ω/km	14.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 2.5 mm²	18 core	2.5 mm²	7.98 Ω/km	15.5 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 4 mm²	18 core	4 mm²	4.95 Ω/km	16.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 6 mm²	18 core	6 mm²	3.30 Ω/km	17.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 10 mm²	18 core	10 mm²	1.91 Ω/km	18.9 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 18 core 16 mm²	18 core	16 mm²	1.15 Ω/km	20.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 0.5 mm²	25 core	0.5 mm²	39.0 Ω/km	14.7 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 0.75 mm²	25 core	0.75 mm²	26.0 Ω/km	15.0 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 1.0 mm²	25 core	1.0 mm²	19.5 Ω/km	15.3 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 1.5 mm²	25 core	1.5 mm²	13.3 Ω/km	15.8 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 2.5 mm²	25 core	2.5 mm²	7.98 Ω/km	16.5 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 4 mm²	25 core	4 mm²	4.95 Ω/km	17.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 6 mm²	25 core	6 mm²	3.30 Ω/km	18.4 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 10 mm²	25 core	10 mm²	1.91 Ω/km	19.9 mm
CY screened flexible control cable 300/500 V EMC-sensitive control 25 core 16 mm²	25 core	16 mm²	1.15 Ω/km	21.7 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
