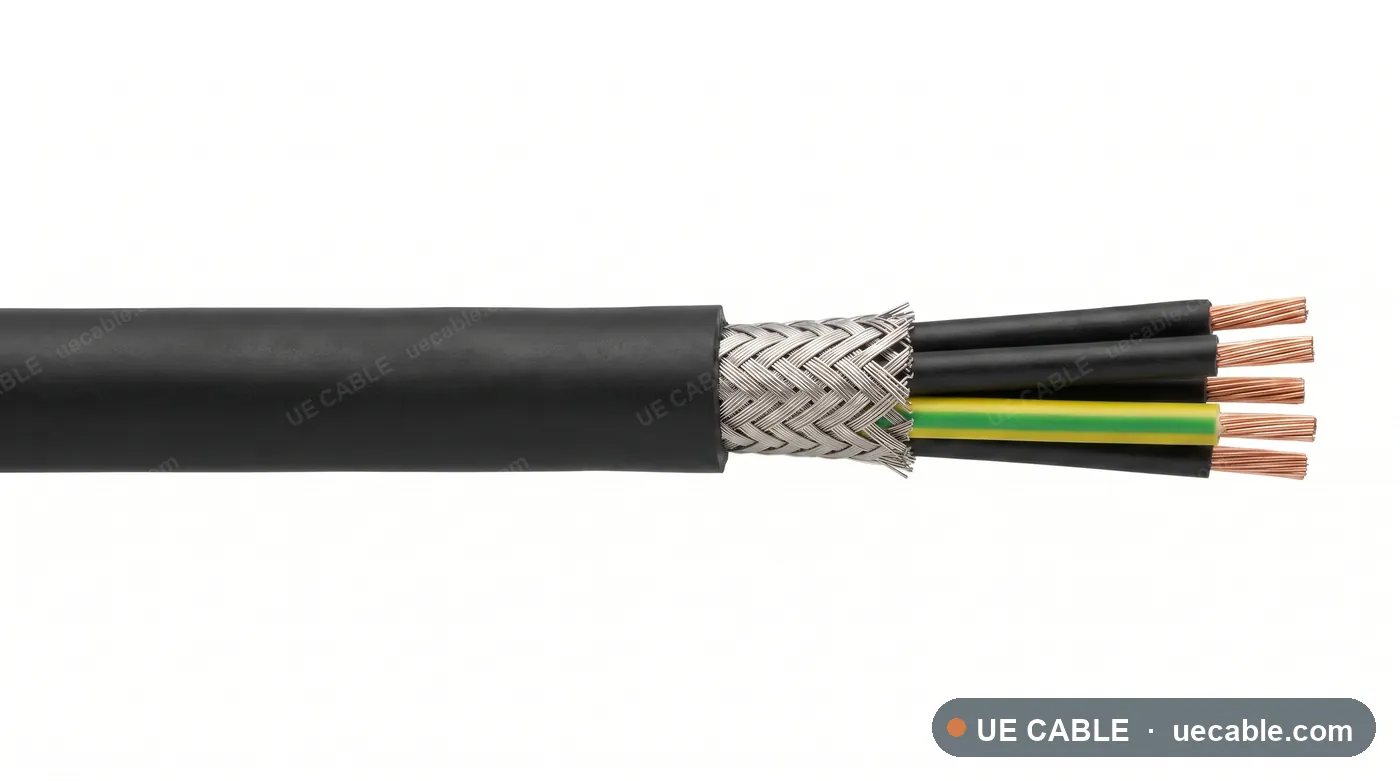

Servo Resolver Transmission Cable cable construction reference

Resolver and transmission signal cable

Servo Resolver Transmission Cable

Servo Resolver Transmission Cable is a servo motor cable construction for resolvers, servo feedback loops, control pulse transmission, using fine-stranded flexible copper conductor, tpe signal-core insulation, pair screen plus overall tinned copper braid screen and pur flexible signal cable jacket.

Standard
UL 758
Voltage class
300 V signal
Conductor
Fine-stranded flexible copper conductor
Insulation / jacket
PUR flexible signal cable jacket

Cable Type Data

Construction and applications.

Applications

Servo Resolver Transmission Cable is a servo motor cable construction for resolvers, servo feedback loops, control pulse transmission, using fine-stranded flexible copper conductor, tpe signal-core insulation, pair screen plus overall tinned copper braid screen and pur flexible signal cable jacket.

  • Resolvers
  • Servo feedback loops
  • Control pulse transmission
  • Machine axes

Cable Construction

  • Fine-stranded flexible copper conductor
  • TPE signal-core insulation
  • Power, brake, feedback or signal elements according to drive function
  • Pair screen plus overall tinned copper braid screen
  • PUR flexible signal cable jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 9 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Resolver and transmission signal specification references

Each row is an exact servo cable specification reference. Shared voltage, insulation, shielding, sheath and motion duty are listed above.

  • Service classResolver and transmission signal
  • Drive functionResolver feedback and control pulse transmission
  • ShieldingPair screen plus overall tinned copper braid screen
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote
