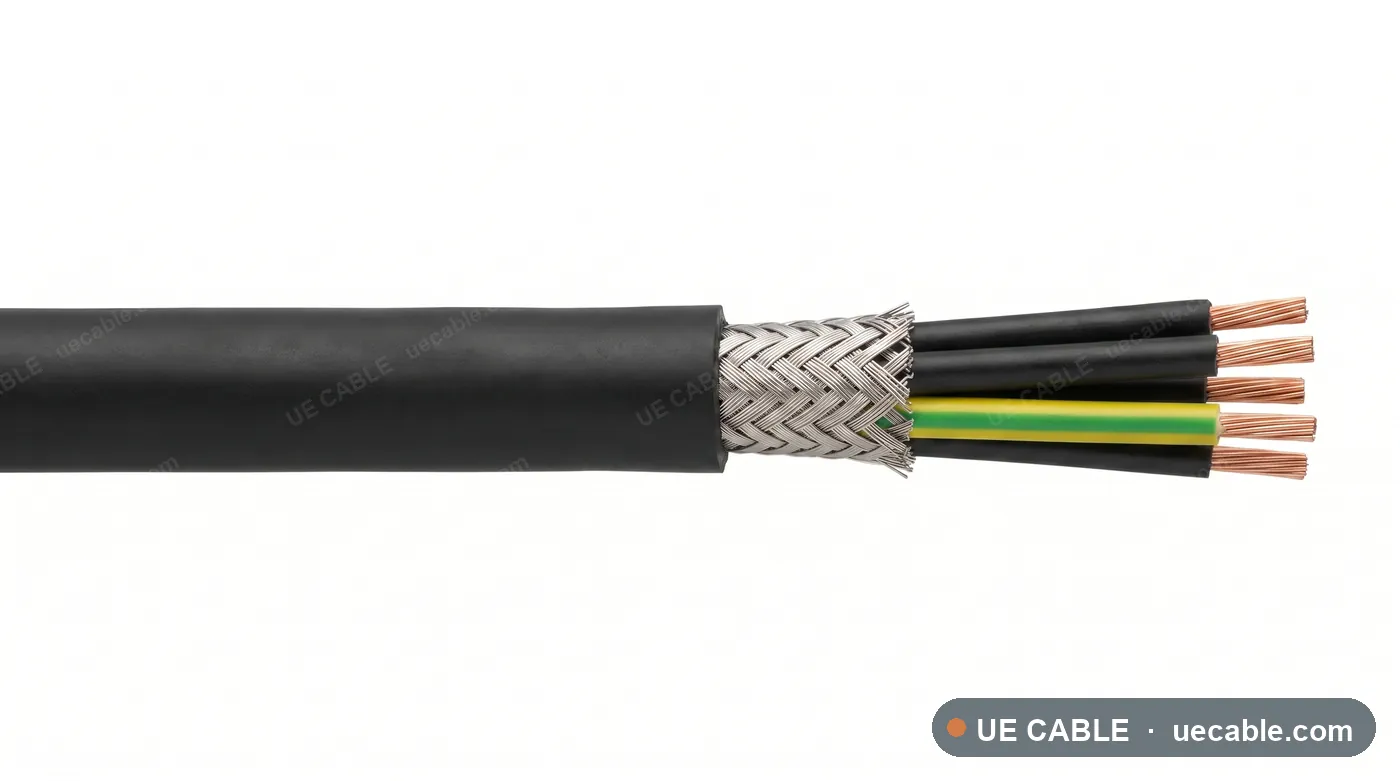

Continuous Flex Servo Motor Cable cable construction reference

Servo continuous-flex cable

Continuous Flex Servo Motor Cable

Continuous Flex Servo Motor Cable is a continuous-flex cable construction for servo drives, cnc machines, robotic axes, using fine-stranded flexible copper conductor, tpe or xlpe drive-core insulation, overall tinned copper braid screen and pur oil and abrasion resistant jacket.

Standard
UL 758
Voltage class
600 V / 1 kV
Conductor
Fine-stranded flexible copper conductor
Insulation / jacket
PUR oil and abrasion resistant jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Continuous Flex Servo Motor Cable is a continuous-flex cable construction for servo drives, cnc machines, robotic axes, using fine-stranded flexible copper conductor, tpe or xlpe drive-core insulation, overall tinned copper braid screen and pur oil and abrasion resistant jacket.

  • Servo drives
  • CNC machines
  • Robotic axes
  • Motion-control equipment

Cable Construction

  • Fine-stranded flexible copper conductor
  • TPE or XLPE drive-core insulation
  • Optimized short lay length for repeated bending
  • Overall tinned copper braid screen
  • PUR oil and abrasion resistant jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 15 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Servo drag-chain duty specification references

Each row is an exact continuous-flex specification reference. Shared conductor class, insulation, screen, jacket, speed, acceleration and cycle guidance are listed above.

  • Motion classServo drag-chain duty
  • Cable useServo power and brake
  • Cycle guideUp to 5 million cycles guide
  • Bend radius10 x OD dynamic / 5 x OD fixed
Cable referenceCore designConductor sizeOD guide
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores 1.5 mm²4 power cores + 2 brake cores1.5 mm²15.8 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores 2.5 mm²4 power cores + 2 brake cores2.5 mm²16.6 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores 4 mm²4 power cores + 2 brake cores4 mm²17.5 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores 6 mm²4 power cores + 2 brake cores6 mm²18.5 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores 10 mm²4 power cores + 2 brake cores10 mm²20.1 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores + feedback pair 1.5 mm²4 power cores + 2 brake cores + feedback pair1.5 mm²16.3 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores + feedback pair 2.5 mm²4 power cores + 2 brake cores + feedback pair2.5 mm²17.1 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores + feedback pair 4 mm²4 power cores + 2 brake cores + feedback pair4 mm²18.1 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores + feedback pair 6 mm²4 power cores + 2 brake cores + feedback pair6 mm²19.1 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 2 brake cores + feedback pair 10 mm²4 power cores + 2 brake cores + feedback pair10 mm²20.7 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 4 signal cores 1.5 mm²4 power cores + 4 signal cores1.5 mm²16.3 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 4 signal cores 2.5 mm²4 power cores + 4 signal cores2.5 mm²17.1 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 4 signal cores 4 mm²4 power cores + 4 signal cores4 mm²18.1 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 4 signal cores 6 mm²4 power cores + 4 signal cores6 mm²19.1 mm
Continuous flex servo motor cable 600 V / 1 kV Servo drag-chain duty Servo power and brake 4 power cores + 4 signal cores 10 mm²4 power cores + 4 signal cores10 mm²20.7 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
