Continuous-flex shielded servo motor cable

Continuous Flex PUR Servo Motor Power Cable

Continuous Flex PUR Servo Motor Power Cable is a servo motor cable construction for cable tracks, pick-and-place units, gantry robots, using fine-stranded flexible copper conductor, tpe low-capacitance power-core insulation, overall tinned copper braid screen and pur low-adhesion abrasion resistant jacket.

Standard: UL 758
Voltage class: 1000 V
Conductor: Fine-stranded flexible copper conductor
Insulation / jacket: PUR low-adhesion abrasion resistant jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Cable tracks
Pick-and-place units
Gantry robots
CNC machinery

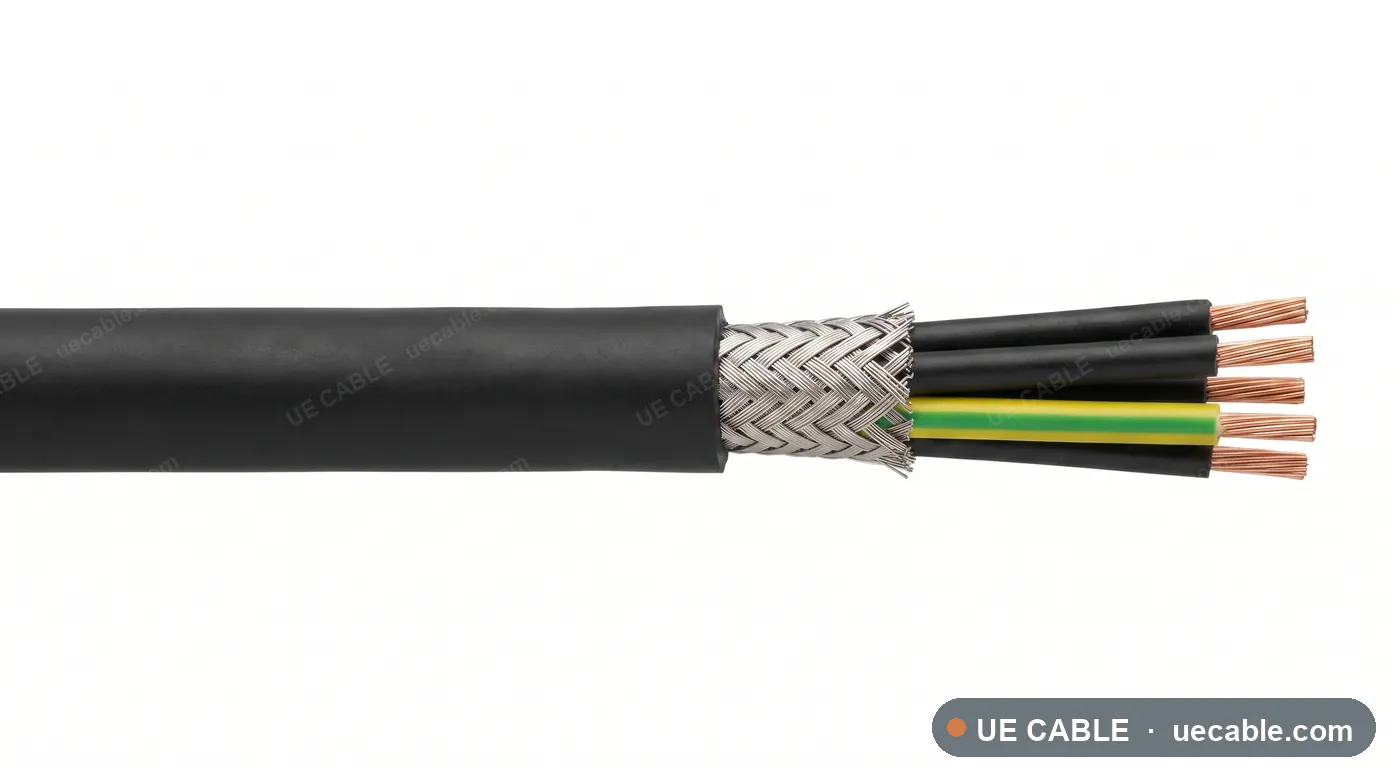

Cable Construction

Fine-stranded flexible copper conductor
TPE low-capacitance power-core insulation
Power, brake, feedback or signal elements according to drive function
Overall tinned copper braid screen
PUR low-adhesion abrasion resistant jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Continuous-flex servo power specification references

Each row is an exact servo cable specification reference. Shared voltage, insulation, shielding, sheath and motion duty are listed above.

Service classContinuous-flex servo power
Drive functionDynamic motor power supply
ShieldingOverall tinned copper braid screen

Cable reference	Core / pair design	Power / signal size	Max DC resistance at 20 °C	OD guide
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 4 power cores 1.5 mm²	4 power cores	1.5 mm²	12.7	14.7 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 4 power cores 2.5 mm²	4 power cores	2.5 mm²	7.6	15.4 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 4 power cores 4 mm²	4 power cores	4 mm²	4.7	16.3 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 4 power cores 6 mm²	4 power cores	6 mm²	3.1	17.2 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 4 power cores 10 mm²	4 power cores	10 mm²	1.83	18.7 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 4 power cores 16 mm²	4 power cores	16 mm²	1.15	20.5 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + PE 1.5 mm²	3 power cores + PE	1.5 mm²	12.7	14.3 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + PE 2.5 mm²	3 power cores + PE	2.5 mm²	7.6	15.0 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + PE 4 mm²	3 power cores + PE	4 mm²	4.7	15.9 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + PE 6 mm²	3 power cores + PE	6 mm²	3.1	16.8 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + PE 10 mm²	3 power cores + PE	10 mm²	1.83	18.3 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + PE 16 mm²	3 power cores + PE	16 mm²	1.15	20.1 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + 3 symmetrical grounds 1.5 mm²	3 power cores + 3 symmetrical grounds	1.5 mm²	12.7	14.3 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + 3 symmetrical grounds 2.5 mm²	3 power cores + 3 symmetrical grounds	2.5 mm²	7.6	15.0 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + 3 symmetrical grounds 4 mm²	3 power cores + 3 symmetrical grounds	4 mm²	4.7	15.9 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + 3 symmetrical grounds 6 mm²	3 power cores + 3 symmetrical grounds	6 mm²	3.1	16.8 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + 3 symmetrical grounds 10 mm²	3 power cores + 3 symmetrical grounds	10 mm²	1.83	18.3 mm
Continuous flex PUR servo motor power cable 1000 V Dynamic motor power supply 3 power cores + 3 symmetrical grounds 16 mm²	3 power cores + 3 symmetrical grounds	16 mm²	1.15	20.1 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
