Low smoke data cable

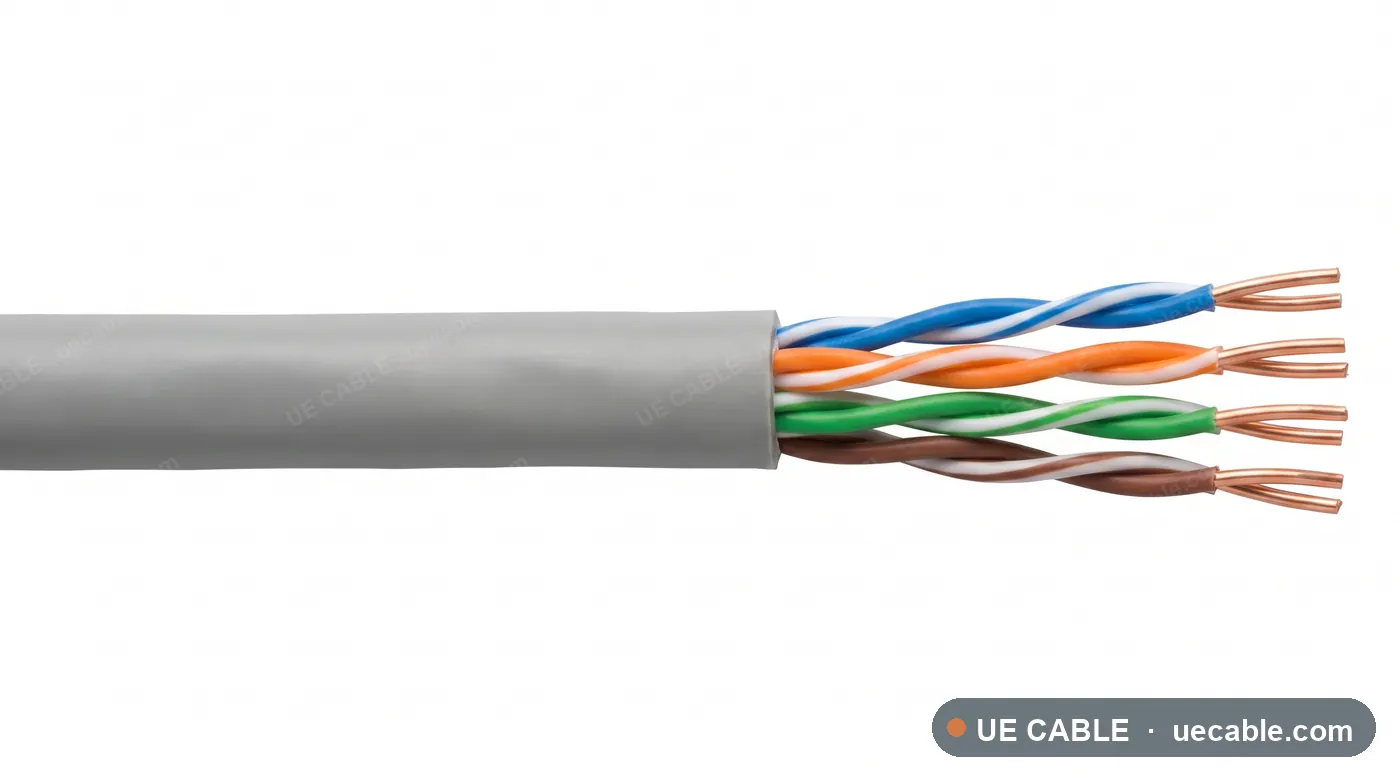

LSZH Cat6A Data Cable is a specific low smoke zero halogen cable construction for data centers, office networks, public buildings, using solid or stranded copper data conductor, pe or foam pe data insulation, u/utp, f/utp or s/ftp screen according to category and lszh data cable jacket.
Cable Type Data
LSZH Cat6A Data Cable is a specific low smoke zero halogen cable construction for data centers, office networks, public buildings, using solid or stranded copper data conductor, pe or foam pe data insulation, u/utp, f/utp or s/ftp screen according to category and lszh data cable jacket.
Specifications
Each row below is a complete specification sheet — 4 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact LSZH cable specification sheet. Shared fire behavior, insulation, screen/protection and sheath data are listed above.
| Cable reference | Core / pair design | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|---|
| LSZH data cable Data transmission LAN and building data Cat5e 4 x 2 pair AWG24 | Cat5e 4 x 2 pair AWG24 | Cat5e 4 x 2 pair AWG24 | 95 Ω/km | 5.6 mm |
| LSZH data cable Data transmission LAN and building data Cat6 4 x 2 pair AWG23 | Cat6 4 x 2 pair AWG23 | Cat6 4 x 2 pair AWG23 | 78 Ω/km | 6.8 mm |
| LSZH data cable Data transmission LAN and building data Cat6A 4 x 2 pair AWG23 | Cat6A 4 x 2 pair AWG23 | Cat6A 4 x 2 pair AWG23 | 78 Ω/km | 7.6 mm |
| LSZH data cable Data transmission LAN and building data Cat7 S/FTP 4 x 2 pair AWG23 | Cat7 S/FTP 4 x 2 pair AWG23 | Cat7 S/FTP 4 x 2 pair AWG23 | 78 Ω/km | 8.5 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
