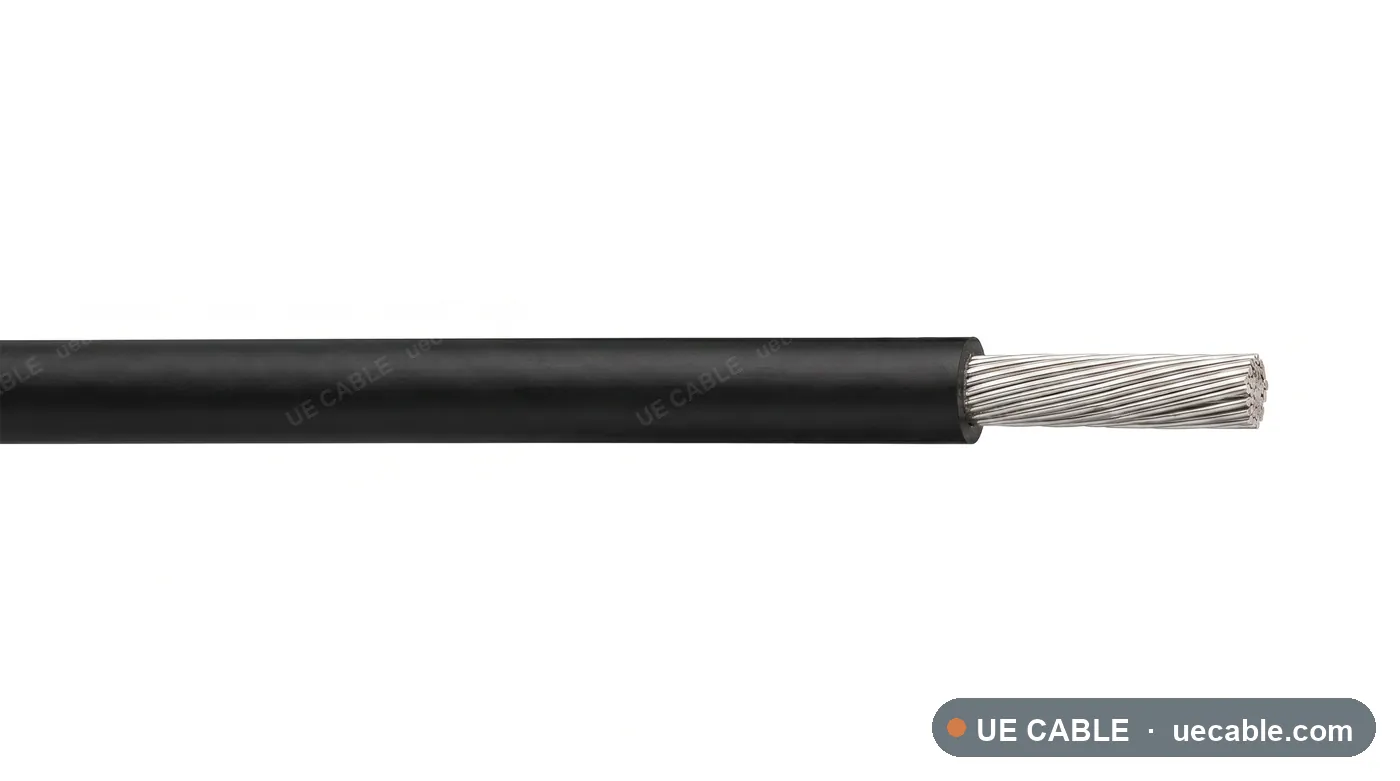

N2XH LSZH Fixed Power Cable cable construction reference

Fixed installation LSZH power cable

N2XH LSZH Fixed Power Cable

N2XH LSZH Fixed Power Cable is a specific low smoke zero halogen cable construction for indoor fixed wiring, public infrastructure, commercial buildings, using class 2 copper conductor, xlpe insulation and lszh outer sheath.

Standard
VDE 0276
Voltage class
0.6/1 kV
Conductor
Class 2 copper conductor
Insulation / jacket
LSZH outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

N2XH LSZH Fixed Power Cable is a specific low smoke zero halogen cable construction for indoor fixed wiring, public infrastructure, commercial buildings, using class 2 copper conductor, xlpe insulation and lszh outer sheath.

  • Indoor fixed wiring
  • Public infrastructure
  • Commercial buildings
  • Tunnels

Cable Construction

  • Class 2 copper conductor
  • XLPE insulation
  • LSZH outer sheath
  • Low smoke zero halogen compound system

Specifications

Select a cable size.

Each row below is a complete specification sheet — 63 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Fixed power distribution specification references

Each row is an exact LSZH cable specification sheet. Shared fire behavior, insulation, screen/protection and sheath data are listed above.

  • Voltage class0.6/1 kV
  • Cable useFixed power distribution
  • Fire behaviorLow smoke, zero halogen, flame retardant building power cable
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 16 mm²1C16 mm²1.15 Ω/km17 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 25 mm²1C25 mm²0.727 Ω/km19 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 50 mm²1C50 mm²0.387 Ω/km24 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 70 mm²1C70 mm²0.268 Ω/km26 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 95 mm²1C95 mm²0.193 Ω/km29 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 150 mm²1C150 mm²0.124 Ω/km34 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 240 mm²1C240 mm²0.0754 Ω/km41 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 1C 400 mm²1C400 mm²0.0470 Ω/km50 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 1.5 mm²2C1.5 mm²12.1 Ω/km12 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 2.5 mm²2C2.5 mm²7.41 Ω/km13 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 4 mm²2C4 mm²4.61 Ω/km14 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 6 mm²2C6 mm²3.08 Ω/km15 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 10 mm²2C10 mm²1.83 Ω/km16 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 16 mm²2C16 mm²1.15 Ω/km18 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 25 mm²2C25 mm²0.727 Ω/km20 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 35 mm²2C35 mm²0.524 Ω/km22 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 50 mm²2C50 mm²0.387 Ω/km24 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 70 mm²2C70 mm²0.268 Ω/km27 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 95 mm²2C95 mm²0.193 Ω/km30 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 120 mm²2C120 mm²0.153 Ω/km32 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 150 mm²2C150 mm²0.124 Ω/km35 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 185 mm²2C185 mm²0.0991 Ω/km38 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 2C 240 mm²2C240 mm²0.0754 Ω/km42 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 1.5 mm²3C1.5 mm²12.1 Ω/km13 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 2.5 mm²3C2.5 mm²7.41 Ω/km14 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 4 mm²3C4 mm²4.61 Ω/km14 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 6 mm²3C6 mm²3.08 Ω/km15 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 10 mm²3C10 mm²1.83 Ω/km17 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 16 mm²3C16 mm²1.15 Ω/km19 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 25 mm²3C25 mm²0.727 Ω/km21 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 35 mm²3C35 mm²0.524 Ω/km22 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 50 mm²3C50 mm²0.387 Ω/km25 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 70 mm²3C70 mm²0.268 Ω/km27 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 95 mm²3C95 mm²0.193 Ω/km30 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 120 mm²3C120 mm²0.153 Ω/km33 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 150 mm²3C150 mm²0.124 Ω/km35 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 185 mm²3C185 mm²0.0991 Ω/km38 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 3C 240 mm²3C240 mm²0.0754 Ω/km42 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 1.5 mm²4C1.5 mm²12.1 Ω/km13 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 2.5 mm²4C2.5 mm²7.41 Ω/km14 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 4 mm²4C4 mm²4.61 Ω/km15 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 6 mm²4C6 mm²3.08 Ω/km16 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 10 mm²4C10 mm²1.83 Ω/km17 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 16 mm²4C16 mm²1.15 Ω/km19 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 25 mm²4C25 mm²0.727 Ω/km21 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 35 mm²4C35 mm²0.524 Ω/km23 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 50 mm²4C50 mm²0.387 Ω/km25 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 70 mm²4C70 mm²0.268 Ω/km28 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 95 mm²4C95 mm²0.193 Ω/km31 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 120 mm²4C120 mm²0.153 Ω/km33 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 150 mm²4C150 mm²0.124 Ω/km36 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 185 mm²4C185 mm²0.0991 Ω/km39 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 4C 240 mm²4C240 mm²0.0754 Ω/km43 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 1.5 mm²5C1.5 mm²12.1 Ω/km14 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 2.5 mm²5C2.5 mm²7.41 Ω/km14 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 4 mm²5C4 mm²4.61 Ω/km15 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 6 mm²5C6 mm²3.08 Ω/km16 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 10 mm²5C10 mm²1.83 Ω/km18 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 16 mm²5C16 mm²1.15 Ω/km19 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 25 mm²5C25 mm²0.727 Ω/km21 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 35 mm²5C35 mm²0.524 Ω/km23 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 50 mm²5C50 mm²0.387 Ω/km26 mm
N2XH LSZH power cable 0.6/1 kV Fixed power distribution 5C 70 mm²5C70 mm²0.268 Ω/km28 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
